FY2023050827
Lifetime
1 Year
Semi-Trailer
50T
CE, ISO9001, CCC
8000-9000mm
1820mm
Heavy Duty
Multi-link Type
Flatbed
3 Axles
12
Not Self-dumping
No ABS Anti-lock Braking System
Steel
New
FengYuan
Generally in Bulk or in Roro
12500*2500*1550mm
Anhui, China
8716391000
Product Description
We have more than 20 years of rich vehicle production experience, a strict quality control system, and an experienced design system to meet customer customization needs and provide lifelong accessories support.

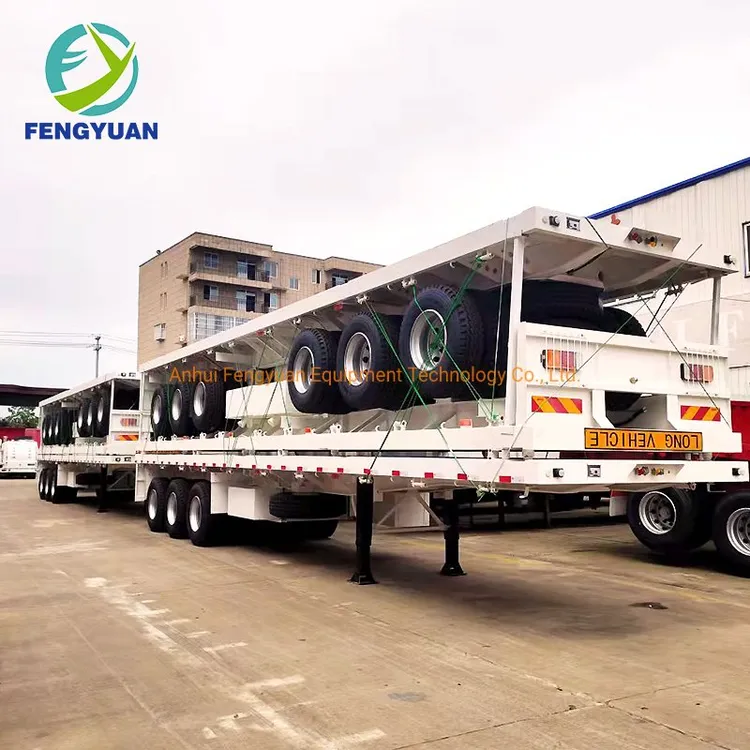

NEW type 40ft container trailer flatbed truck trailers price for sale Tanzania
Specification:
NEW type 40ft container trailer flatbed truck trailers price for sale Tanzania
| Brand | FengYuan Flatbed Semi Trailer |
| Dimension (mm) | 12500x2500x1550mm |
| Loading Capacity (T) | ≤60T |
| Tare Weight | Approx. 6.2 T |
| Axle | 3 Axle 13T/16T, FUWA/BPW/FengYuan, etc |
| Rim | 9.00*22.5/8.00-20/8.5-20 |
| Tire | 12.00R22.5 ; 315/80R22.5; 11.00R20; 12.00R20 brand can be optional |
| Suspension | Mechanical suspension / Air suspension / single point suspension (Germany Type or America Type or Japan Type) |
| Spring leaf | 90(width)mm*13(thickness)mm*10 layer(especial for exporting market) 90*13-10 4/6/8 sets, Funiu ocTaiyue etc. |
| Kingpin | Jost brand 2.0 or 3.5 inch 2" bolt-in king pin |
| Support leg | Jost brand two speed |
| Landing gear | two-speed, manual operating ,heavy duty landing gear 28T Standard 28Ton, JOST brand or FUWA |
| Main beam | Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14mm,width140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width 140mm / Beam height 500 mm, Upper plate 14 mm, Down plate 16 mm: Middle plate 6/8 mm |
| Cross beam | 10#/w shape channel steel(Q235) |
| Side beam | 16mm /18mm channel steel (Material is Q235B steel) |
| Bottom Platform | 3mm checquered steel plate |
| Side wall | Optional |
| Brake system | Wabco re 6 relay valve; T30/30+T30 spring brake chamber; two units of 40L/ 45L air tanks |
| ABS | Optional |
| Valve | Wabco valve (especial for exporting market) |
| Light | LED Light (especial for exporting market) |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | One piece 1m *0.5m*0.5m ( size can be customized) |
| Painting | 1 cost of anticorrosive primer, 2 coats of final paint, color advised by customer |
| Electrical System | 1. Voltage:24V, LED lights 2. Tail lamp with turn signal, brake light & reflector, side lamp etc. 3. Receotacle: 7 wire |
| Accessories | One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light |
| Shipping Terms: | By bulk vessel, RORO, or 40HQ container |
| Any parts fitted could according to clients request, pls contact us to get more anytime.Tks | |
