HOWO 16Tons Tilt Tray Rollback Flatbed Recovery Tow Truck with 12 Tons Straight Boom Crane
wrecker truck: road wrecker truck, road rescue vehicles is with functions such as lifting, pulling, carrying, lifting and pulling. Wrecker trucks are mainly used for road failure rescue, accident handling, clearing and transportation of illegally parked vehicles in cities, as well as non-ground transportation of commercial vehicles and recycling and transfer of scrapped vehicles. The transportation of small construction machinery is by wrecker trucks. The customer groups of wrecker trucks mainly include rescue companies, 4S shops, auto repair shops, scrap recycling companies, urban management departments, and highways, traffic, traffic and other departments.
Product Description:
1. Flatbed Recovery Tow Truck with Crane is used for towing broken cars,vehicle on road.With increasing ownership of private cars,recovery tow trucks are now widly used by government organization or towing company.
2. Optional chinese truck:SINITRUK,Dongfeng,SHACMAN,FAW,JAC,JMC,Foton,Shacman...
3. Capacity range:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton,60tons,70 tons recovery tow truck
5. crane is optional according to your working condition.
Main specification of 16 tons flatbed tow truck with 12 tons crane
Wheelbase: 5800+1400
Top-loading configuration:
12-ton four-section boom crane,
8500*2550 large flat plate,
6mm carbon steel checker plate on the board surface,
double-cylinder technology for flat-plate telescopic,
imported high-flow multi-way valve,
naval combat power cylinder,
16-ton three-section rear trailer The arm,
sub-beam dry sinking process,
the front end of the flat plate has a sinking groove,
a 15-ton pattern plate,
a 50-meter steel wire rope,
a warning lamp
and a set of megaphones.
| Cabin | HW76 cabin with two seats and one bed,with Air conditioner | |
| Cabin color | White,Orange,Yellow... | |
Engine | Model | WD615.69 |
| Type | 6-cylinder in-line with water cooling,turbo charger and inter-cooling,4-stroke direct injection,diesel engine | |
| Power | 247KW/336HP | |
| Emission standard | EURO II | |
| Displacement | 9725 (ml) | |
| Fuel type | Diesel | |
| Wheelbase | 5800+1350 mm | |
| Transmission | HW19710,10 speed forward and 2 speeds reverse | |
| Front Axle | HF9,9Tons | |
| Driving Axle | HC16/16TonsX2 | |
| Steering system | ZF8118,hydraulic steering with power assistance | |
| Brake System | Service brake: Dual circuit compressed; Air Brake: Parking brake(Emergency brake):Spring energy,compressed air operating; Auxiliary brake: engine exhaust brake | |
| Tire | 12.00R20,10 pcs with one spare | |
| Fuel Tank Capacity | 400L | |
| Wrecker Upper Structure Body | ||
| Under lift Boom | Max. Under Lift Capacity(kg) | 16000 |
| Max. Under Lift Capacity at full extension (kg) | 6500 | |
| Under lift boom Effective length(mm) | 1700 | |
| Under lift Telescopic Stroke(mm) | 1360 | |
| Ground Clearance when under lift fully retracted(mm) | 800 | |
| Flatbed | Ground Clearance(mm) | 1200 |
| Flatbed Plate Size(length*width) (mm) | 8500*2550 | |
| Min. Tilt Angle (°) | 8 | |
| Moving range (mm) | 3760 | |
| Max. Loading Capacity (kg) | 16000 | |
| Winch | Number | 1 |
| Rated towing capacity (KN) | 80~150 for option | |
| Diameter of Steel Rope (mm) | Φ16~φ22 for option | |
| Length of Steel Rope (m) | 50 | |
| Min. line speed(m/min) | 4.52 | |
| Crane | ||
| Brand | Palfinger,Shimei,CLW,UNIC | |
| Capacity | 10 Tons/12Tons/14 Tons | |
Testing of 16 tons Tilt Tray tow truck

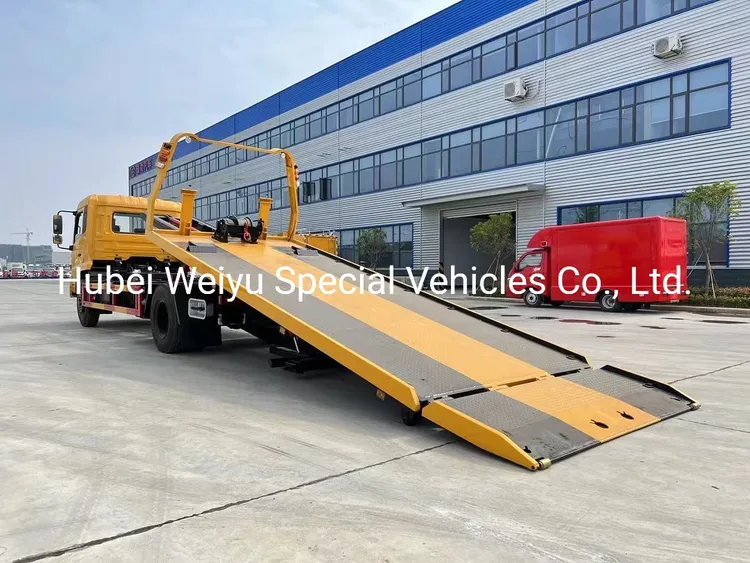

Optional for howo 4tons Tilt Tray flatbed tow truck
Optional for shacman L3000 10tons Tilt Tray flatbed tow truck
We also have 8 tons and 10 tons flatbed recovery trucks without crane for breakdown service and car rescue as follows
