1. Application: Our sewage suction truck is ideal for sewer and toilet cleaning. With optional high pressure water jetting, it can easily unclog tunnels and pipes. The powerful vacuum pump can deal with all types of heavy slurries and muds.
2. Chassis Brand: Dongfeng, Foton, Sinotruk howo, other chassis available.
3. Features:
a. strong vacuum pump for faster sewage suction speed
b. high pressure water jetting helps clearing obstacles (optional)
c. self-dumping tank with openable rear door to discharge sewage efficiently
d. ultra-long suction pipe available to further extend working area
4. Tank Size:18000L, 18000liter, 18cbm, 18m3.
5. Tank Material: Q235 stainless steel
6. Inspection: All tanks are tested by air, water, X-ray and with fire firing before shipment.
7. Main Market: our sewage suction truck are widely sold in Africa, N. & S. America, Middle East and Asian countries.
| Cabin | Driving type 6x4, single row | |
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 9300*2550*3650 |
| Wheel base (mm) | 4325+1350 | |
| Weight in KGS | Tare Weight | 13400kg |
| payload | 11600kg | |
| Front axles loading capacity | 7000 | |
| Rear axles loading capacity | 16000X2 | |
| Max. driving speed(km/h) | 90 | |
| Engine | type | WD615.69 |
| Horse Power(HP) | 336HP | |
| Emission standard | Euro2 | |
| Gearbox | 10 forwards & 2 reverse | |
| Steering | Right hand drive | |
| Tire | 295/80R22.5, 10 tires with one spare | |
| Sewage Tank | ||
| Tank volume | 18000Liters | |
| Tank material | 6mm carbon steel Q235 | |
| Tank size | 4900x1600mm | |
| Vacuum Pump | Chinese Vacuum Pump or Italy Vacuum Pump | |
| Sewage suction pipe | 8M | |
| Main Performance | Suction time ≤ 5min, effective suction range ≥ 8m | |
| Other equipment | Oil-gas separator, water-gas separator, four-way valve, anti-flow valve, washing device, pressure gauge, ball valve | |
| Painting | Customized painting color and logo as required. | |
Detailed photos

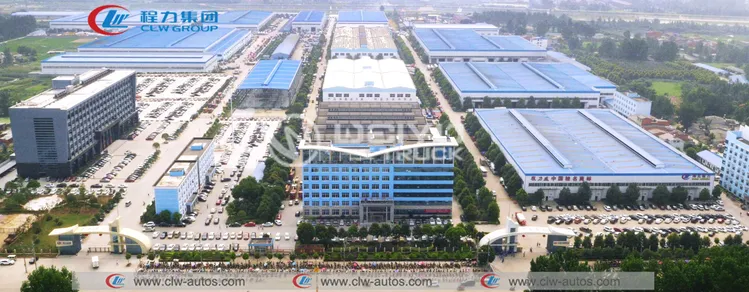

Factory view
Bulk exported to overseas countries
