CLW55XWC
ISO9000, CCC, TS16949, RoHS, CE
Manual
Diesel
4x2
New
Diesel
Right Hand Drive & Left Hand Drive
6 Forwards & 1 Reverse
5mm Carbon Steel
Chinese Brand, Italy Brand or Other Imported Brand
5m
<5min
Customized
30 Days
ISO CCC SGS BV
2m3, 3m3, 4m3, 5m3, 6m3, 8m3, 10m3, 12m3, etc.
Dongfeng, Foton, JAC, etc.
4 Tires with One Spare
CLW
Naked, RO-RO, Bulk, Container
4201*1475*1870mm
Suizhou, China
87059099
Product Description

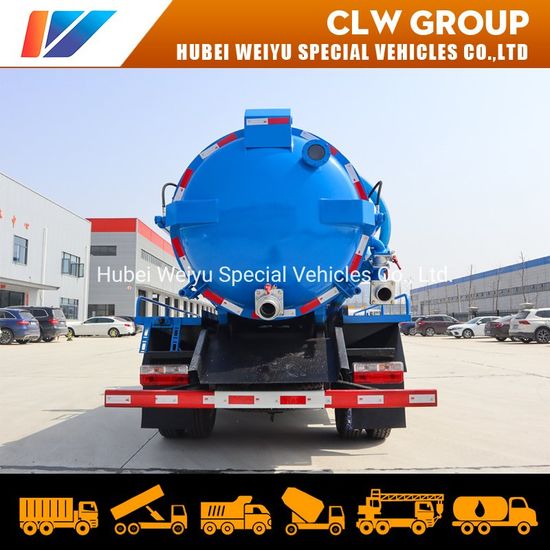

140HP 4*2 5cbm Sweage suction truck with vacuum pump for waste water fecal transport suction trcuk
Description:
Features: 1. strong vacuum pump for faster sewage suction speed
2. high pressure water jetting helps clearing obstacles (optional)
2) Working scene
pneumatically load fecal, solids, liquids, sludge, crude oil or slurry through suction lines in diameter with 3" being the norm.
3) We provide various sizes of fecal suction trucks with capacities ranging from 3cbm to 18cbm.
Specifications:
| The Parameters of 2M3 Dongfeng Mini Fecal Suction Truck | |
| Overview | |
| Name | Dongfeng Mini Fecal Suction Truck |
| Dimension(LxWxH) | 5995X1980X2500(mm) |
| Total Mass | 7360 Kg |
| Rated Payload | 3460 Kg |
| Kerb Weight | 3360 Kg |
| Passenger | 2 |
| Approach/Departure Angle | 33/24 |
| The Parameters of Chassis | |
| Manufacture/Model | Dongfeng |
| Driving Type | 4*2 right hand drive |
| Wheel base | 3308 mm |
| Gearbox | Six speed lever with five speed forward and one reverse, manual |
| Front/Rear Track | 1260/1260(mm) |
| Tyre | 6.00-13 |
| The Number of Tyre | 4+1(spare tyre) |
| Front/Rear Suspension | 795/850(mm) |
| Leaf Spring Number | 3/5 |
| The Paremeters of Engine | |
| Manufacturer/Model | Laidong/4801QB |
| Rated Power | 102hp |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 3707ml |
| Emission Standard | Euro 6 |
| Cylinder | Straight/4/intercooling |
| Max. torque | 170N.m |
| Velocity | 3200rpm |
| The Parameters of Equipment | |
| Tank Capacity | 3-5 M3 / 3000-5000Liters |
| Vacuum Pump Rotation Speed | 800r/m-1400r/m |
| Max. Suction Lift | >6m |
| Vacuum | >500mmHg |
| Rotation Direction | Clockwise |
| Length of Pipe | 5m |
| Time for full suction | <5min |
| Basic Equipment | Vacuum pump, ball valve, 5 meter pipe, pressure meter, window for showing liquid level, cleaning system, hoist base, water and oil separator, anti-leaking valve, etc. |
| Optional Equipment | Sprinkler, alarm for full suction, double pump, crane, scissor lift, etc. |
Reference photos
Other types of suction truck
Truck diagram
The CLW group, which was appointed by the Development and Reform Committee of China. CLW group is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Products Catalog:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor truck
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
