Product Description:
1. Purpose of Recovery Truck: wrecker/recovery truck/towing truck is used for towing break-down cars or vehicle or bus or trailers on road. With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of Recovery Truck : Howo,Dongfeng,JAC,JMC,Foton,Shacman...
3. Spare parts of Recovery Truck: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of Recovery Truck: 3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton, 60ton
Specification of Shancman 50tons Recovery Truck
CHASSIS | |||||
Cabin | Shacman X3000 cabin, Left hand drive,with air conditioner, allowed for 2~3 persons | ||||
No load(kg) | Curb Weight | 13070 | |||
Front axle | 7000*2 | ||||
Rear axle | 18000*2 | ||||
Full load | Max. Overall Weight | 31000 | |||
Overall Dimensions(mm) | Length | 11530 | |||
Width | 2500 | ||||
Height | 3570 | ||||
Wheel base(mm) | 1800+4600+1350 | ||||
Track(mm) | 2022/1830 | ||||
F/R Suspension(mm) | 1500/2200 | ||||
A/D Angle(°) | 16/18 | ||||
Driving Model | 8*4 | ||||
Tyre | 315/80R22.5 | ||||
Max. Speed(km/h) | 105 | ||||
Max. Grade-ability(%) | 30 | ||||
Min. Turning Diameter(m) | 22.6 | ||||
Min. Ground clearance(mm) | 310 | ||||
Engine | Model | WD615.47 | |||
Horsepower(HP) | 371 | ||||
Displacement(mL) | 9726 | ||||
Transmission | Manual, 10 forwards &2 reverses | ||||
WRECKER EQUIPMENT | |||||
Max. Towing Weight(kg) | 45000 | ||||
Lifting System | Max. Lifting Weight(kg) | 25000 | |||
Max. Lifting Weight under all extension(kg) | 8300 | ||||
| Hoisting capacity(kg) | 50000 | ||||
| Winch capacity(kg) | 25000*2 | ||||
| Steel rope length(m) | 25 | ||||
Effective Length of Corbeling Arm(mm) | 3650 | ||||
Extend-retract of Corbeling Arm(mm) | 1750 | ||||
Slope Angle of Corbeling Arm(°) | 7 | ||||
Folding angle under no load(°) | -7~92 | ||||
Folding angle under load(°) | -7~16 | ||||
Max. Ground Distance(mm) | 900 | ||||
Landing Strength(KN) | 80*2 | ||||
Hydraulic Hose | Manufacturer from Tianhe, Guangdong Province | ||||
Hydraulic Joint | Germany technology and exported Sealing rings | ||||
Hydraulic Lock | Jiangyin Mingcheng Hydraulic and Mechanical Co.,Ltd. | ||||
Swivel Joint | Yangzhou Zhongmei Pressure Parts Co.,Ltd. | ||||
Compartment plate | One-step Modeling by Germany 3P2A 1000T punching machine | ||||

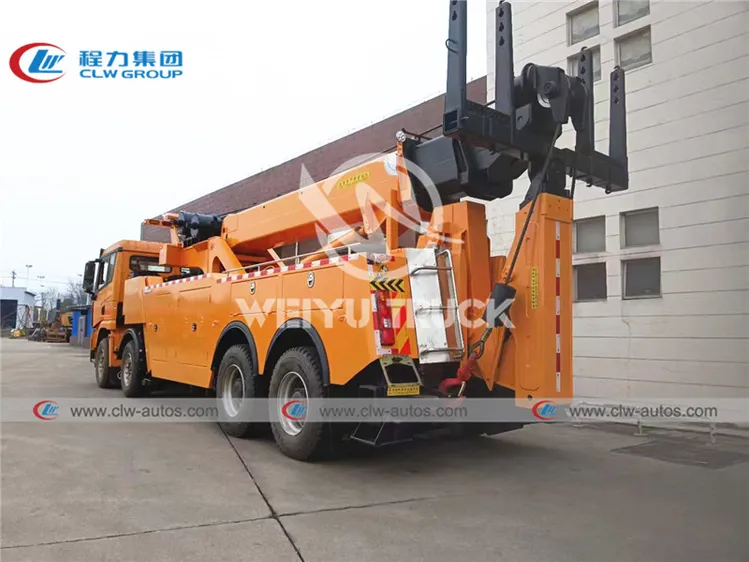

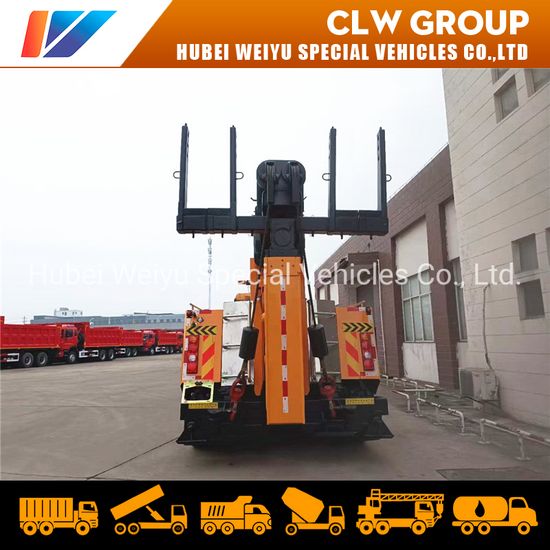

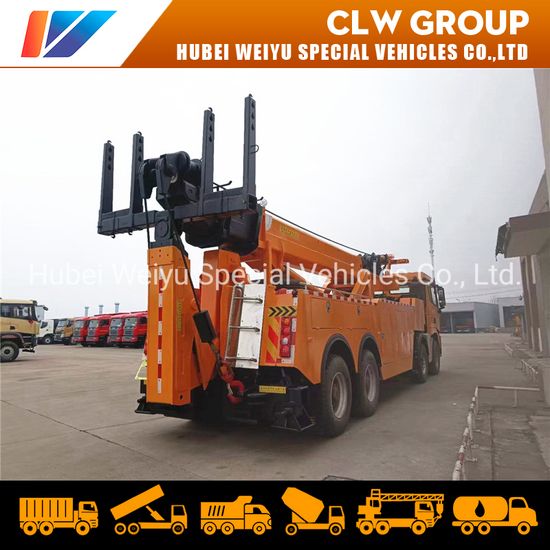

Reference pictures
Customer visiting for 50tons Recovery Truck
Factory overview
CLW group, which was appointed by the Development and Reform Committee of China is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
- Certificate: ASME, ISO, BV, SGS, CCC etc.
- More than 30 independents workshops.
- 1000 sets of equipment, 25 assemble lines.
- 300 senior engineers and technicians. About 8000 workers.
- 800kinds of LPG, trucks and semi-trailers.
- 20 years wholesale experience
- Turnover 250 million and Export 20million annually
- Turnover 2 billion trucks and semi-trailers annually.
- Trucks and trailers Sold to 90 countries
- Cooperates DONGFENG,SINOTRUCK,FOTON,FAW,SHACMAN,ETC
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
After Sales Service
Email & Phone call tracking for each truck on timely manners.
