CLW8916XWC
1 Year
ISO9000, CCC, TS16949, CE
Euro3, Euro4, Euro5
15tons-25tons
Manual
Diesel
15m3-25m3
6x4
251-350hp
New
Diesel Engine
LHD or Rhd
10 Forwards & 2 Reverse
5mm Carbon Steel
Chinese Brand, Italy Brand or Other Imported Brand
5mm ~ 8mm
<5min
>8m
Customized
30 Days
2m3-25m3
CLW
Naked, RO-RO, Bulk
9950*2490*3350mm
Suizhou, China
87059099
Product Description
Sinotruk 8cbm High Pressure Washing Vacuum Sewer Cleaner Flushing Vehicle with Italy BP Pump Sewage Suction Tank Fecal Sludge Truck for Sale
Product Description
1. Chassis:
1) Drive type: 4x2, 4x4, 6x4, 8x4 etc.
2) Our factory has good business relationship with DONGFENG, FOTON, FAW, SINOTRUCK, SHACMAN, JAC, JMC, etc.
2. Tanker body:From 2m3 to 25 m3 capacity.
3. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
Technical Specification
| The Parameters of 8CBM Sewage Suction Truck | |
| Overview | |
| Name | Sewage Suction Truck |
| Dimension(LxWxH) | 7350X2490X3250(mm) |
| Total Mass | 18005 Kg |
| Kerb Weight | 5600 Kg |
| Passenger | 3 |
| Approach/Departure Angle | 32/14 |
| The Parameters of Chassis | |
| Manufacture | Howo |
| Driving Type | 4*2 left/right hand drive |
| Wheel Base | 3800 mm |
| Gearbox | Seven/Eight speed lever with six/seven speed forward and one reverse, manual |
| Front/Rear Track | 1940/1860/1860(mm) |
| Tyre | 8.25R16 |
| The Number of Tyre | 6+1(spare tyre) |
| Front/Rear Suspension | 1245/3055,1245/3005(mm) |
| Leaf Spring Number | 8/13,8/12 |
| The Paremeters of Engine | |
| Rated Power | 160hp/118kw |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 3771ml |
| Emission Standard | Euro3 |
| Cylinder | Straight/6/intercooling |
| Max. torque | 700N.m |
| Velocity | 2500rpm |

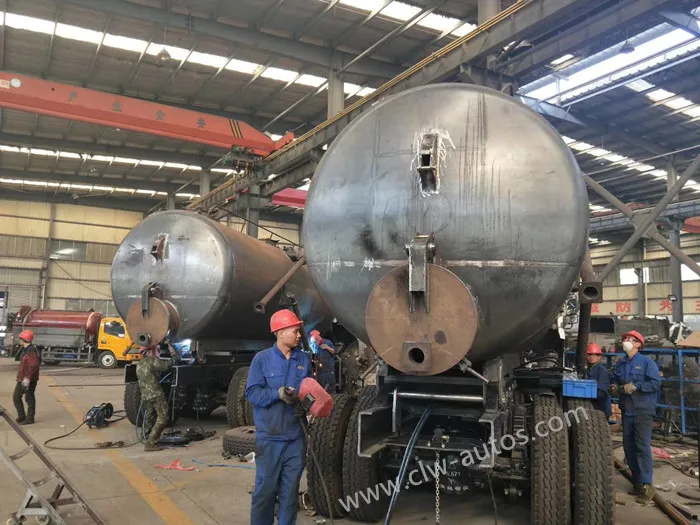

Reference Photos
Company Introduction
Our Overseas Exhibition
After-sales Service
1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units.
