CLW5841
Yes
1 Year
Semi-Trailer
20tons-50tons
ECE, ISO9001, DOT, CCC, ISO/TS16949
7000-8000mm
1820mm
Heavy Duty
Mechanical or Air Suspension
V-Shape
3
12
Discharging System
Optional
Steel
New
Powder Material
Fuwa/BPW
2 or 3.5 Inches
Diesel Engine or Electrical Motor
Mechanical Leaf Spring/Air Bag
Optional
35 Days
CLW
Nude
11000*2500*4000mm
Suizhou, China
3708960665
Product Description
25cbm 35cbm 50cbm Carbon Steel Tanker 3 axle Semi Trailer for Bulk Cement Dry Powder Material Cement-Discharging
All specification and design can be customized !

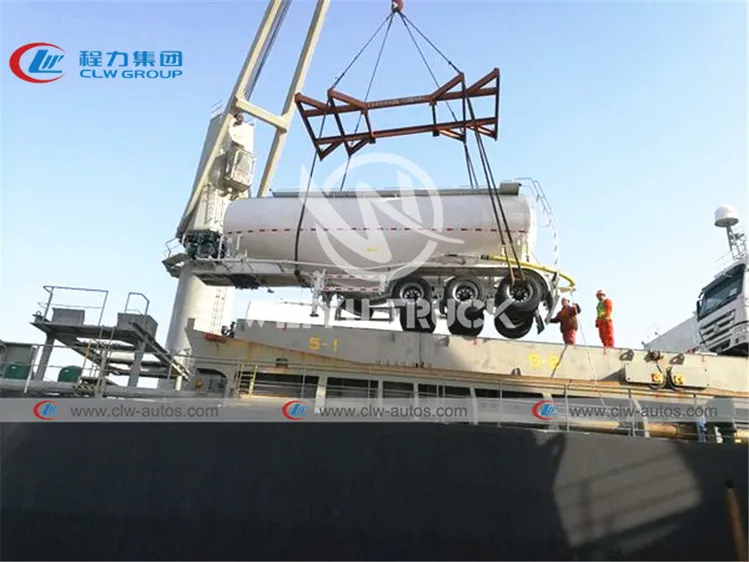

Reference photos:
After-sales service
Semi-trailer adopts computer 3D aided design,rational structure,Use the high quality high strength steel production. welded by automatic submerged-arc processes. All our spare parts are from the original manufacturers with original part number and and anti-fake label, the quality is 100% guaranteed.
Company Profile:
The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Packaging & Shipping:
1.By cargo bulk shipment or ro-ro shipment .
2.By Flat Rack Container.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
After Sales Service
Email & Phone call tracking for each truck on timely manners.
All specification and design can be customized !
Product Description
| Semi-Trailer Dimensions | |
| Trailer Tare weight | 8500kg |
| Trailer Size | 11000*2500*4000mm |
| Volume | 25cbm-50cbm |
| Loading Capacity | The load depends on the density |
| Tank body | Q235 4mm steel sheet |
| End plate | Q235 6mm ball shape |
| Axle | 13ton *3 axles |
| Suspension | Mechanical suspension American type |
| Leaf spring | Leaf spring 10pcs*90mm*13mm |
| Manhole cover | 500mm manhole cover 2 sets |
| Tire | 12R22.5 *12units |
| Wheel rim | 9.0-22.5 *12pcs |
| Discharge valve | 4" disc valve |
| Discharge pipe | 4" seamless steel tube |
| Outlet pipe | 4" rubber hose. 6meters |
| Kingpin | JOST brand 2"/3.5" bolt-in king pin |
| Landing gear | JOST brand two-speed, manual operating ,heavy duty landing gear |
| Engine | WEICHAI brand model: 4102 |
| Air compressor | 37 KW, 0.2Mpa. 1000r/Min |
| Compartment | 1UNITS |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| ABS | 4S2M or Optional |
| Air-charging system | 2" main hole.2" check valve .1.5" safe valve.0.4Mpa.gauge |
| Quadratic blow | 1" diameter check valve |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| Accessories | One standard tool box ,one spare tire carrier, one crank ,one shaft head wrench, |
| Date of delivery | 25 working days |
Reference photos:
After-sales service
Semi-trailer adopts computer 3D aided design,rational structure,Use the high quality high strength steel production. welded by automatic submerged-arc processes. All our spare parts are from the original manufacturers with original part number and and anti-fake label, the quality is 100% guaranteed.
| ITEM | WARRANTY TERM | |
| Main Frame | frame | 1 year |
| king pin | 1 year | |
| suspension | 6 months | |
| balance arm | 3 months | |
| U-shaped bolt | 3 months | |
| pull rod | 6 months | |
| leaf spring | 3 months | |
| landing gear | 3 months | |
| spare tire carrier | 3 months | |
| Running Gear | axle | 1 year |
| axle bearing | 3 months | |
| wheel rim | 3 months | |
| tire | 3 months | |
| Braking Device | brake drum | 3 months |
| Relay valve | 3 months | |
| brake champer diaphragm | 3 months | |
| spring brake chamber | 3 months | |
| brake shoe | 3 months | |
| air tank | 3 months | |
Company Profile:
The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
- Certificate: ASM, ISO, BV, SGS, CCC etc.
- 12 independents workshops.
- 1000 sets of equipment, 25 assemble lines.
- 300 senior engineers and technicians. About 8000 workers.
- 800kinds of LPG, trucks and semi-trailers.
- 20 years wholesale experience
- Turnover 250 million and Export 20million annually
- Turnover 2 billion trucks and semi-trailers annually.
- LPG/Truck Sold to 90 countries
- Cooperates with DONGFENG,SINOTRUK HOWO,JAC,FOTON,FAW,SHACMAN,ETC.
Packaging & Shipping:
1.By cargo bulk shipment or ro-ro shipment .
2.By Flat Rack Container.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
After Sales Service
Email & Phone call tracking for each truck on timely manners.
