Sinotruk Howo 6*4 336HP Road Construction Asphalt distributor Truck
Product Description
1. Can spread a variety of asphalt: high viscosity modified asphalt, hot asphalt, emulsified asphalt, etc.
2. The width of the sprinkler is freely adjustable and each nozzle can be individually controlled.
3. Excellent insulation performance, average temperature drop ≤20°C/8h.
4. Intelligent control system for precise control of the amount of spreading. Manual and automatic two sets of operating systems, complete the sprinkling in the cab, the construction can be completed by one person only.
Product Specification
| Drive Model | Left or right driven hand, 6x4 | ||
| Cabin | HOWO HW76 Cabin, with one sleeper, air conditioner | ||
Engine | Engine Model | WD615.47 | |
| Type | diesel engine, 4-stroke, 6-cylinder in line, inter-cooling and turbo-charging, euro-2 emission standard | ||
| Power | HP | 336 | |
| Displacement | L | 9.726 | |
Dimensions | Overall LxWxH | mm | 10200x2500x3450 |
| Wheel Base | mm | 4600+1350 | |
| Front/Rear Axles | kg | 7000/18000 | |
| Gearbox | HW19710, 10forward & 2 reverse gear, manually | ||
| Steering | ZF Hydraulic steering with power assistance | ||
| Fuel Tank | 300L | ||
| Clutch | Reinforced diaphragm clutch, diameter 430mm | ||
Brakes | Service brake: dual circuit compressed air brake Parking brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake | ||
| Tyre | 11.00-20,11.00R20 16PR,12.00-20 16PR,12.00R20 14PR,315/80R22.5 16PR,12R22.5 16PR,295/80R22.5 16PR | ||
| Tank | |||
| Volume | 20cbm | ||
| Asphalt Pump Model | QGB950 (950 liters / min) | ||
| Pump Model | CBQ563-L | ||
| Generator power | 6 kilowatts | ||
| Sprinkle speed | 0.2 to 3 liters / square meter | ||
| Sprinkle width | 6 m | ||
| Hydraulic motor Model | 05-110-BD31 | ||
| Other specification | Asphalt nozzle 48; Conducting oil heating; Oil pump made in China; Italy imported G20 Burner. | ||

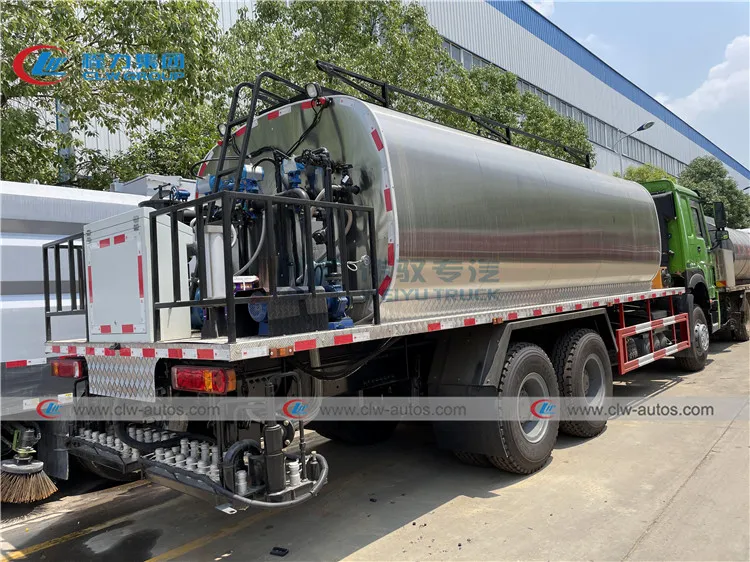

Reference Photos
We provide package solution and customized drawing for every asphalt distributor truck:
Working Scene
Company Introduction
Certificates
Our Overseas Exhibition
After-sales Service
1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Flora For More Details+86 13971508969.
