CLW8600CR
Semi-Trailer
30T
ECE, GCC, CE, ISO9001, DOT, CCC, ISO/TS16949
8000-9000mm
1320mm
Heavy Duty
Cross Arm Type
Tanker Type
2 or 3 or 4
8/12/16
Not Self-dumping
ABS Anti-lock Braking System
Steel
New
Q345r or Q370r, Q420r
11.5mm 12mm
Spherical,Ellipse
BPW,Fuwa,Hj,L1,Clw,York
15300kg
30tons,30ton,30t,30t,30mt
0.42~0.59
Jost Brand
12r22.5 Tubeless Tire,Triangle,Double Coin,
2" or 3.5" for Option
Volume Flow Meter,Mass Flow Meter
Manual Ratotion Type,Option for Rochester Brand
1.61MPa
Africa,South America,Middle Asia,Southeast Asia
20 Years
CLW
Naked, Waxed, Bulk Ship, RO-RO
61.9CBM 61900L 61900Liters 61.9m3 30T
Suizhou, China
8716319000
Product Description
61.9cbm Liquefied Petroleum gas Transport Tanker LPG delivery tanker Truck Semi Trailer

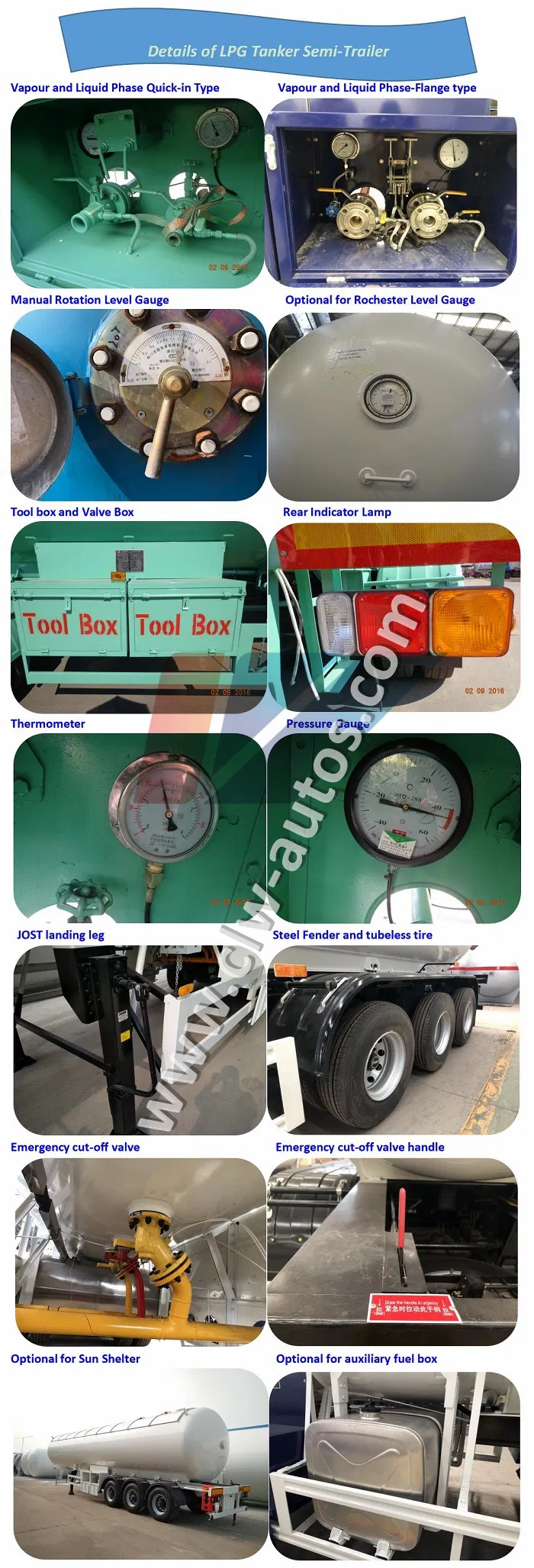

Reference Photos
Main Structure Diagram
Company Introduction
Certificates
Our Overseas Exhibition
Contact Flora for more details: +86-13971508969
Product Description
1) LPG Transport Tanker Trailer is used to transport liquid petroleum gas in large quantity and in long distance from depot or terminal station to smaller lpg stations in other cities.We can offer lpg bridger truck tanker trailers from 40cbm to 60cbm and from 20tons to 30tons.
2) Manufacturing standards of LPG Transport Tanker Trailer : GB-150, ASME, U STAMP, CCC, ISO9001 : 2008
3) Optional accessories of LPG Transport Tanker Trailer:ROCHESTER level gauge,flow meter,sunshelter,lpg pump,lpg dispenser machine,filling hose
4) Available tanker trailer capacity of LPG Transport Tanker Trailer: 18mt,18t,20mt,20tons,22mt,22tons,25mt,25tons,30mt,30tons
Product Specification
| Tank Essential Information | |
| Volume of Tank | 61.9 CBM (61900Liters / 30Tons) |
| Overall Dimensions(L*W*H) | 13000*2500*3990 mm |
| Filling Weight | 25300 kg |
| Tare Weight | 15300 kg |
| Total Weight | 40600 kg |
| Wheelbase | 7230+1320+1320 mm |
| Shell of tank | |
| Products | propene gas |
| Fluid Property | Flammable |
| Design Temperature | -20~50ºC |
| Design Pressure | 1.61 Mpa |
| Corrosion Allowance | 1 mm |
| Major Materials of Bearing Pressure | Tanker body: Q420R, 12mm |
| End plate: Q420R, 12mm,double ellipse | |
| Main beam:16Mn | |
| Detection | |
| Heat Treatment | Overall treatment in a furnace,600ºC to 640ºC |
| Flaw Detection | 100% Flaw detection |
| Test Pressure | 1.61Mpa |
| Hydraulic Test | 2.1Mpa |
| Magnaflux inspection | Aim at welding place that flaw detection can not cover |
| Manhole(As customer's requirement) | 1, on top |
| Safety Valve(As customer's requirement) | 1, on top |
| Running system | |
| Axles | 3*13T BPW |
| Suspension | Mechanical suspension |
| Tire | 12R22.5 Tubeless tire,13 including one spare tire |
| Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. |
| Landing leg | JOST brand, two-speed, manual operating |
| King Pin | #50 or #90 |
