Factory New 4X2 Foton 3ton One Tow Two Road Recovery Towing Wrecker Tow Truck
Product Description:
1. Purpose of 4ton flatbed tow truc: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of 4ton flatbed tow truc:howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman.
3. Spare parts of 4ton flatbed tow truc: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of flatbed tow truc:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
5. The customers can choose to install the crane.
| General Technical Parameters | |||
| Overall Dimension | 5995x2300x2350(mm) | ||
| Gross Vehicle Weight | 4495kg | ||
| Curb Weight | 3700kg | ||
| Chassis Specification | |||
| Chassis Parameters | Chassis Brand | Foton | |
| Cabin | Single, Left Hand Driving | ||
| Engine | Model | 4 Cylinders | |
| Power | 81KW/110HP | ||
| Emission Standard | EURO III | ||
| Displacement | 2771 ml | ||
| Fuel Type | Diesel | ||
| Gearbox | 5 Forward & 1 Reverse Gear | ||
| Front and Rear Axle Load | 2.5T/5T | ||
| Wheel Base | 3360(mm) | ||
| Overhang( Front/Rear) | 1120/1515(mm) | ||
| Angle(Approach/departure) | 21/17(°) | ||
| Brake System | oil brake | ||
| Steering Gear | Power Assistant | ||
| Tire | 7.00R16, 6 Pieces with 1 Spare Tire | ||
| Maximum Speed | 90 (km/h) | ||
| Superstructure | |||
| Flatbed | Dimensions | 4200x2320 (mm) | |
| Max. Loading Weight | 3000(kg) | ||
| Operating Stroke | 2700 (mm) | ||
| Min. Angle of Slope | 8(°) | ||
| Platform Height from the Ground | 1070(mm) | ||
| Winch | Quantity | 1pc | |
| Winch Rating Pulling Capacity | 3000 (kg) | ||
| Length of Steel Cable | 25 (m) | ||
| Hoisting Organ | Rating Under-Pulling Capacity | 6000 (kg) | |
| Rating Under-Hoisting Capacity | 2000 (kg) | ||
| Fully Extended Max Under-Hoisting Capacity | 1600 (kg) | ||
| Max Under-Hoist Useful Length | 1640 (mm) | ||
| Remarks | 1. Equiped with One Set of Auxiliary Wheels 2. Bandages 4pcs 3. Yellow Warning Lamp 1pc 4. Double Side Hydraulic Operation 5. Can Tow 2 Cars | ||
Truck Diagram

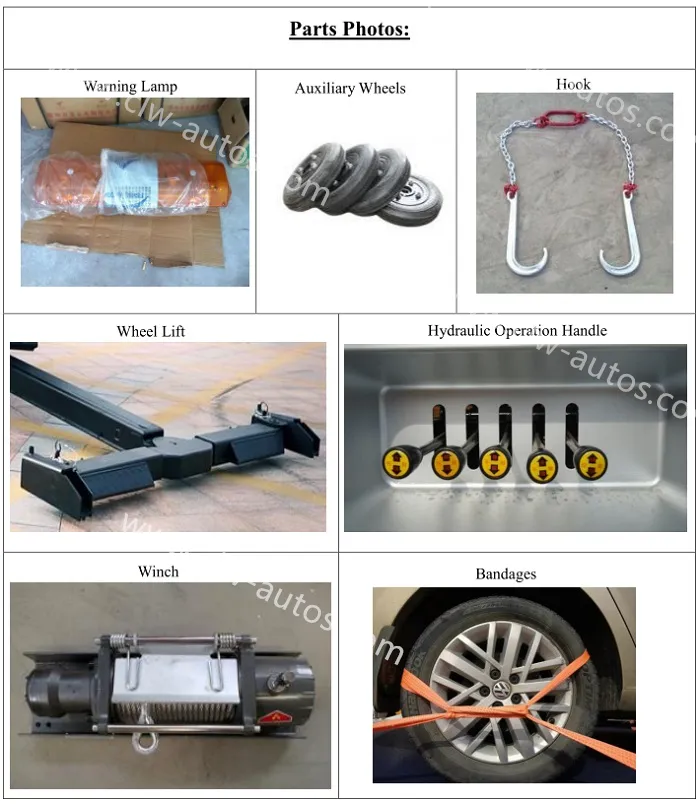

Truck Details
Working Show
Other Special Truck Series
Factory Overview
Overseas Exhibition and Local Support
Customer Visiting
Contact Alice for more details (+86 180 7154 2196)
