Description:

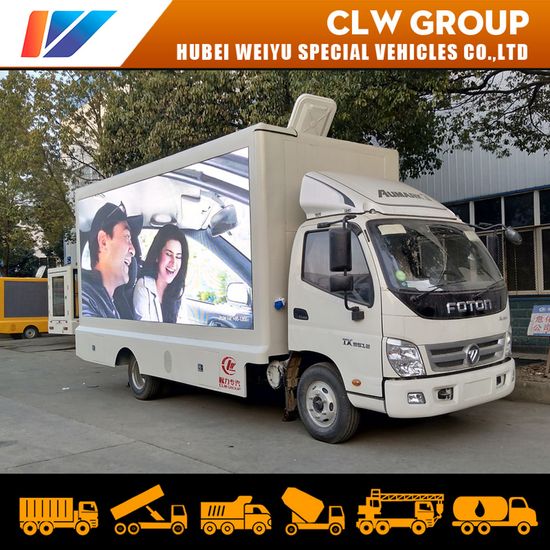

1. Purpose of LED screen billboard truck: For advertising, product promotion, brand promotion, draft activities, live shows sales, sporting events, vocal concerts, concerts, etc.
2. Main parts of LED screen billboard truck : LED screen, Generator set, Computer, Control system etc.
3. Optional items of LED screen billboard truck: Mobile stage, Scrolling light box.
4. LED screen of LED screen billboard truck: SMD P4 P5 P6 P8 for optional.
5. Generator brand of LED screen billboard truck: China famous brand and Internation brand for optional.
| General Technical Parameters | |||
| Overall Dimension | 5990*2200*2400(mm) | ||
| Curb Weight | 6200(Kg) | ||
| Chassis Specification | |||
| Chassis parameters | Chassis Brand | Foton | |
| Cabin | Single, Left Hand Driving | ||
| Engine | |||
| Power | 85kw/115hp | ||
| Emission standard | EURO V | ||
| Displacement | 1.498L | ||
| Fuel type | Diesel | ||
| Gearbox | 5 Forward & 1 Reverse Gear | ||
| Front and Rear Axle load | 1.5T/3T | ||
| Overhang( Front/Rear) | 1015/1620(mm) | ||
| Angle(Approach/departure) | 24/12 (°) | ||
| Brake System | Air brake | ||
| Steering Gear | Power Assistant | ||
| Tire | 175R14LT 8PR, 4 Pieces with 1 Spare Tire | ||
| Maximum speed | 98(km/h) | ||
| Superstructure | |||
| LED Screen | Pixel | Outdoor full colour display screen P6 | |
| Dimension(LxW)(mm) | Both side: 3840*1728 Rear:1152*1344 | ||
| Description | Screen lift one or both side Waterproof, shake-proof, high brightness, long life | ||
| General configuration | 1. Chinese brand,Silent diesel generator, 15KW 2. One set industrial computer with control system 3. Sound system: Loudspeaker 4pcs, amplifier 1pc 4. Internal and external electrical distribution box. 5. Circulating ventilation and cooling systems. 6. 5CM composite steel frame body 7. Aluminum patterned floor | ||
| Remarks | Hydraulic stage is oprional. The color of the superstructure is oprional. | ||
