SR215S
Online/Overseas Serive
1.5 Year/2500 Hours
CE, RoHS, ISO 9001:2000, ISO 9001:2008
New
1800mm
50-70m
Optional Bits
Rotary
Crawler
1800mm
64m
215kn
210kn
6HK1
China Top Equipment brand
Roro/Bulk Cargo
1800mm Max. drilling diameter
Beijing
Product Description

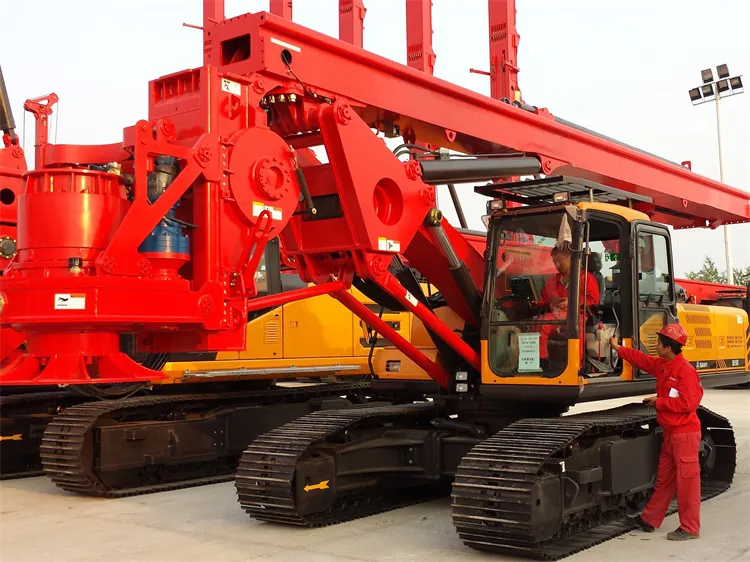

Top Brand New SR215S 210KN 1.8m Max drilling diameter Rotary drilling rig
64m Pile Depth 1800mm Pile Diameter Rotary Drilling Rig SR215-C10
Efficient and flexible
Widely used in small dia. & deep borehole construction in civil engineering, high main hoist lifting up and down speed, high
verticality of finished borehole, high working efficiency in civil construction.
Special chassis
Telescopic large widening chassis designed for rotary drilling rig, roller type large diameter slewing bearing to guarantee the
high stability in deep borehole construction.
Economical and energy-saving
Imported large-displacement E.FI engine with strong power, adopts power optimization control technology, adjusts power
distribution in real time, fast response speed, higher fuel efficiency and more energy-saving.
High reliability
The mast adopts box structure with strong resistance to torsion and fatigue; sixth generation kelly bar adopting upgraded material
and strengthened block ring, the overall strength increased by 25% with high drilling ability in strongly weathered rock layer.
Intelligent upgrade
10-inch HD touch screen, fast response and more convenient operation.
Max. Pile Diameter | 1800mm |
Max. Pile Depth | 64/51m |
Rotary Drive | |
Rated Output Torque | 220kN·m |
Rated Speed | 5~30rpm |
Crowd System | |
Crowd Force | 180kN |
Line Pull | 190kN |
Stroke | 4200mm |
Main Winch | |
Lifting Capacity | 220kN |
Rope Diameter | 28mm |
Max. Line Speed | 75m/min |
Main Chassis | |
Base Engine | 6HK1 |
Engine Power | 212/2000kW/rpm |
Emission Regulation | Tier III |
Overall Machine | |
Overall Height | 21040mm |
Operating Weight | 65T |
Transport Width | 3210mm |
Transport Height | 3560mm |
Efficient and flexible
Widely used in small dia. & deep borehole construction in civil engineering, high main hoist lifting up and down speed, high
verticality of finished borehole, high working efficiency in civil construction.
Special chassis
Telescopic large widening chassis designed for rotary drilling rig, roller type large diameter slewing bearing to guarantee the
high stability in deep borehole construction.
Economical and energy-saving
Imported large-displacement E.FI engine with strong power, adopts power optimization control technology, adjusts power
distribution in real time, fast response speed, higher fuel efficiency and more energy-saving.
High reliability
The mast adopts box structure with strong resistance to torsion and fatigue; sixth generation kelly bar adopting upgraded material
and strengthened block ring, the overall strength increased by 25% with high drilling ability in strongly weathered rock layer.
Intelligent upgrade
10-inch HD touch screen, fast response and more convenient operation.
