F2000 Water tank truck
Online/Overseas Serive
1.5 Year/2500 Hours
15001 - 30000L
ISO9000, CCC, TS16949, EEC, RoHS, CE
Euro 2
＞16m
Manual
50T
Diesel
6×4
＞8L
New
Wp10.290e32
9js135
Sx5255gysjm434
F2000 Extended Flat Roof Cab
380L
Shacman
Bulk Cargo/40hq Container by Nude Packing
20000L water tank
China
Product Description

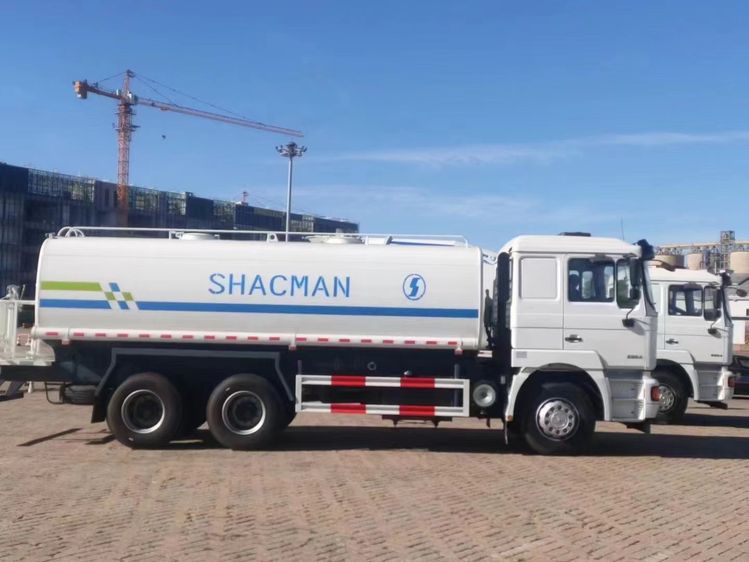

SHACMAN New F2000 6*4 20000L Water tank Truck for export
| MODEL | SX5255GYSJM434 | |
| Left Hand | ||
| Driving type | 6×4 | |
| Curb weight(kg) | 13900kg | |
| Max.Weight(kg) | 45000kg | |
| Overall Dimension/mm(LxWxH) | 9700×2500×3300 | |
| Wheelbase/(mm) | 4300+1400 | |
| Max. Speed/(km/h) | 85km/h | |
| Max. Grade ability/(%) | 30 | |
| Engine/ | Brand | WEICHAI/ |
| Model | WP10.290E32 | |
| Emission Standard | EURO/ | |
| Rated output power | 290HP | |
| Rated speed (r/min) | 2200 | |
| Max.Torque | 1160N.m/1200~1600r/pm | |
| Displacement(L) | Displacement: 9.726L | |
| Transmission | Brand | FAST |
| Model | 9JS135 withQH50 PTO ,9forwardand1reverse | |
| Front axle | MAN 7.5T | |
| Rear axle | 2×13000kg,2×13 STR double reduce axle,ratio4.8 | |
| Clutch | Eaton technology | |
| Steering | Gearmany technology | |
| Frame | 850*300(8+5) | |
| Fuel tank | 380L ironfuel tank /380L | |
| Wheels and tires | 12.00R22,5,10+1 | |
| Brakes | Running brake:Dual circuit compressed air brake | |
| Parking brake:Air discharging with spring control | ||
| Auxiliary brake:Engine exhaust brake | ||
| With ABS | ||
| F2000 extended flat roof cab / hydraulic main seat / hydraulic suspension / hot zone air conditioning / manual window crank / fibreglass bumper | ||
| Others | Front protection, Rear protection, Driving recorder, Cruise control, Speed limit 90km/h, Seat belt not fastened reminder, Reflective vest | |
| Upbody | The tank volume is 20 m3, the tank material is Q235B, the head material is Q235B, the tank thickness is 5mm, the head thickness is 6mm, with pump, front spraying and rear sprinkling, rear working platform and high-pressure water cannon device, 2 filling ports, 1 A self-flow valve DN80, and the inside of the tank is treated with industrial-grade anti-corrosion treatment. | |
