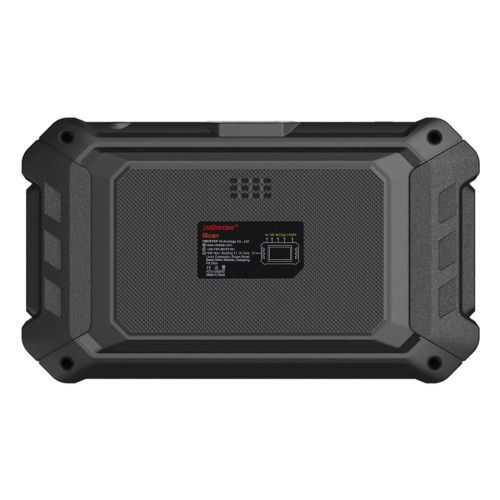

Obdstar Iscan for Mercury Marine Diagnostic Tablet with Special Functions Support G3/ Dfi 2/ Optimax/ Seapro/ Verado/ 40HP-300HP

Functions

1. New android 5.1.1 operation system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;
4. Menu arbitrary selection is more convenient and quick;
5. Record and play back real-time data flow, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the internet, one-click software upgrade;
7. One-click remote function, OBDSTAR technical staff remote assistance.
8. Supported models: MERCURY

Other Optional Accessories You May Need:
OBDSTAR MERCURY M064 Cable

Advanced Function

1. The OBDSTAR mobile APP integrates functions such as diag socket location, flash code query, technical bulletin, manual service function(service lamp reset), basic parameters, etc., working with ISCAN to make marine diagnosis more accurately and efficiently;
2. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to easily analyse faults;
3. Support Device Configuration, Maintenance Notification Setting and other special functions.

Diagnostic support series

1. Support all models in G3, including DFI 2, Optimax, Seapro, Verado, 40HP-300HP Engines and other models;

2.The support modules include but no limited to Engines (DIESEL and Gasoline), Joystick, Lever and Helm Control Module, Lever Configuration, Service System, Thrust Vector Control Module and other modules

(Additional Satellite Receiver, Audio Satellite Receiver, Autopilot, Bow Thruster, Connected Vessel Device, Diagnostic Tool, Electronic Compass, GPS Receiver, Generator, Helm Autopilot Trackpad, Helm Device  Display Gauge, Helm Mercury NMEA Gateway, Helm PORT Command Control Module, Helm PORT Inner Command Control Module, Helm PORT Inner Legacy System Monitor, Helm PORT Inner System Monitor, Helm PORT Inner System Tachometer, Helm PORT Legacy System Monitor, Helm PORT System Monitor, Helm PORT System Tachometer, Helm STBD Command Control Module, Helm STBD Inner Command Control Module, Helm STBD Inner Legacy System Monitor, Helm STBD Inner System Monitor, Helm STBD Inner System Tachometer, Helm STBD Legacy System Monitor, Helm STBD System Monitor, Helm STBD System Tachometer, Helm Smart Multiplexer, Helm Steering Wheel, Helm System Speedometer, Helm Autopilot Trackpad, Helm Device 1 Display Gauge, Helm Device Display Gauge, Helm Mercury NMEA Gateway, Joystick Module, NAVMAN Gateway, PORT Engine, PORT Inner Engine, PORT Inner Thrust Vectoring Module, PORT Inner Transmission Control Module, PORT Thrust Vectoring Module, PORT Transmission Control Module, Remote Joystick Module, Replicator, STBD Engine, STBD Inner Engine, STBD Inner Thrust Vectoring Module, STBD Inner Transmission Control Module, STBD Thrust Vectoring Module, STBD Transmission Control Module, Security Device, Smart Sensor - AirMar, SmartCraft Authentication Device, Stern Thruster, Trackpad, Vessel Control Module, VesselView Link, VesselView Mobile, Aux Joystick, Cruise Interface Module, Helm PORT CCM, Helm PORT INNER CCM, Helm PORT Outer CCM, Helm STBD CCM, Helm STBD INNER CCM, Helm STBD Outer CCM, Helm PORT Inner uX, Helm PORT uX, Helm STBD Inner uX, Helm STBD uX, PORT INNER SIM, PORT Inner TCM, PORT Inner TVM, PORT Inner uX, PORT Outer Engine, PORT SIM, PORT TCM, PORT TVM, PORT uX, STBD INNER SIM, STBD Inner TCM, STBD Inner TVM, STBD Inner uX, STBD Outer Engine, STBD SIM, STBD TCM, STBD TVM, STBD uX, etc. )

Function Display-(From OBDSTAR Mobile App)

2)     Diag Socket/Diag Connector Location
Function Display-(From ISCAN)

1)     Main Page/Brand Supported

2)    Data Flow Text/Waveform Diagram/Instrument Diagram

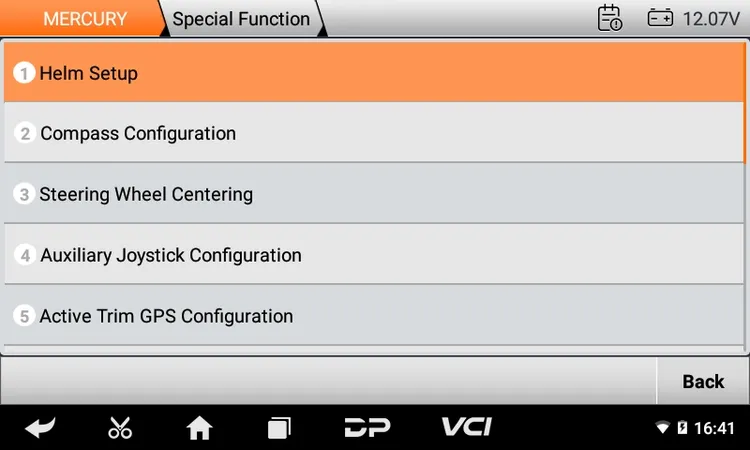

3)    Special Functions
