MS-621RK
Supported
18 Months
7",9"
Driving Data Recording, Accident Recording and Analyzing, Video Storing, Identity Recognition, Data Input, Data Communication, Display and Print, Fatigue Driving Warning
360 Degree
1080P
32G
HD
Data Recorder
4-way
Full HD
Mingshang
360 Degree Surround View Camera System
4-Channel or 6-Channel 720/1080P Ahd 25/30 Frame C
Ahd/CVBS
2D/3D
Optional
Commercial Vehicles Such as Buses, Coaches, School
mingshang
Carton
Host+ 4 Cameras + Monitor
China
85122090
Product Description
Mingshang#MS-621RK is a 3D 360° Around View Camera System,which can provide a 360° panoramic bird-view, monitoring with no blind spot to ensure driving safety. The driver can intuitively observe the position of the vehicle and the obstacles around the vehicle, and calmly control the vehicle into position or pass through complex roads, effectively reducing scratches, collisions, traffic accidents.Widely used for surround-view monitoring of commercial vehicles such as trucks,buses,muck trucks,and construction machinery.
Product Features:
1. High-definition 360-degree panoramic system 2D/3D optional
2. Advanced algorithm and stitching technology, startup time less than 10S
3. 4-channel AHD high-definition video input, support PAL/NTSC
4. AHD, CVBS, video output format, frame rate configurable 1 built-in CAN, 3 I/O trigger lines
5. USB system upgrade, support CAN diagnostic burning, meet network security requirements, customize the boot screen, can customize car models and multiple languages
6. Commercial vehicle dedicated camera design, sturdy, waterproof (including connectors), shockproof, anti-collision, moisture-proof, anti-corrosion automotive grade socket, aviation head adapter cable and extension cable, firm contact
7. Current has overcurrent, reverse connection, short circuit protection
8. Boot safety scan without blind spots
9. Applicable to commercial vehicles such as buses, coaches, school buses, RVs, trucks, forklifts and engineering machinery
10. 2 versions : Version with BSD alarm function and version without BSD function
Support 360 panoramic BSD alarm results will be displayed on the panoramic screen and single screen BSD alarm
11. Support over-length vehicles (vehicles of 10M and above need 8 calibration cloths)
| Product Name | 360Degree Surround View Camera System |
| Model No.: | MS-621RK |

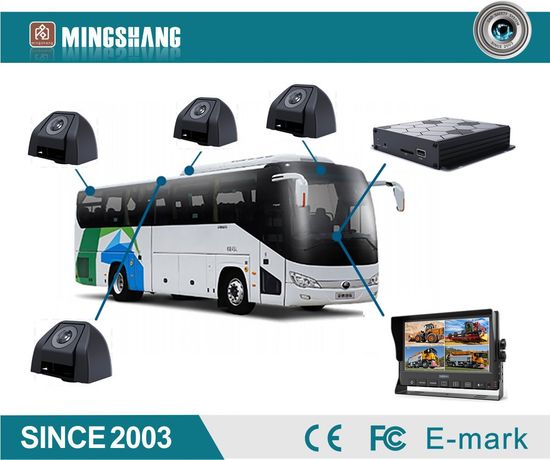

| Systems Including | 1*Host(DVR/Control box) +4*Cameras+1* Monitor+4*Extension Cables+Other Accessaries |
| Display mode | 2D/3D |
| Camera Input | 4-channel or 6-channel 720/1080P AHD 25/30 frame camera input |
| Storage | SD card |
| Video Output | AHD/CVBS |
| I/O Trigger | 3CH |
| Operation System | Linux |
| USB interface | Yes |
| Camera Resolution | 1280*720 |
| Video Format | PAL/NTSC |
| Blind Spot Detection | Optional |
| Working voltage range | 9-36V |
| Working Temperature | -30ºC~+75ºC |
| Application for | Such as commercial vehicles such as trucks,buses,muck trucks,and construction machinery.etc |
