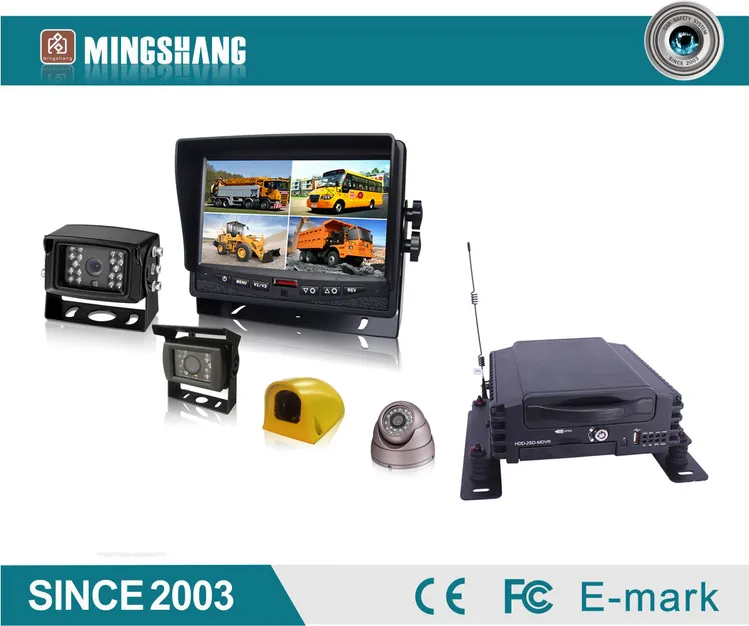

1080P 4CH Mobile DVR For Bus,Truck..with GPS, 3G/4G, WiFi optional
Mingshang MS-580 model 4Channel HD Mobile DVR is ideal solution for your vehicle fleet management.It adopting with advanced H.246 Compression technology and Linux operating system,support SD memory storage (Max. 256GB) and HDD hard drive,Built-in GPS module,Video quality up to 1080P resolution, Supports 4 ch video input,audio intput on/off,External USB2.0 interface, can upgrade the product and download files.
Support 4video mode: manual, alarm, timing, trigger;Additional 4Ch inputs with triggers,Full CH, Auto Scan, Trigger CH & Live display, Support CVBS/960H/AHD camera,4CH AV Inputs with 1080p/720P/960H/D1,Date & Time Stamp ,vehicle information,GPS information,ch number on the file, Playback a Recorded file on the LCD,Setup on the LCD menu,Map Tracking available,G-sensor applicable, Built-in Circuit protection chip from overvoltage & reversing voltage,Professional In-Vehicle power design, 6-36V DC Wide Voltage Range.
Key Features:
1.Support 2.5 inch HDD/SSD and SD card
2.Optional built in GPS/3G/WIFI.
3.4CH AV inputs with AHD 1080N/720P/960H/
4.Unique design with anti-vibration and heat dispersion.
5.Video resolution D1/HD1/CIF optional.
6.Support remote control and mouse(USB2.0,USB1.1).
7.Networking protocol: TCP/IP, FTP, SMTP, RTP, DHCP, DDNS.
8.Support RS485 Tilt control.
9.4 triggers and linux system.
10.Warning: support 7CHs high level alarm input, compatible 4CH dry contact alarm input.
11.4 CH high level alarm output.
| Item | Device parameter | Performance |
| System | Main Processor | Hi3520DV300 |
| Operating System | Embedded Linux OS | |
| Operating Language | Chinese/English | |
| Operating Interface | GUI, Support mouse | |
| Password Security | User password/Admin password | |
Audio & Video | Video Standard | PAL/NTSC |
| Video Compression | H.264 | |
| Image Resolution | 1080N /720P/960H/D1/CIF | |
| Playback Quality | 1080N /720P/960H/D1/CIF | |
| Compound Mode | Avariety of ways | |
| Image Display | Single/split/QUAD display optional | |
| Audio Compression | G.726 | |
| Audio Recording | Audio & Video synchronized recording |
MINGSHANG TECHNOLOGY CO.,LTD is one of China's leading suppliers and manufacturers of vehicle vision safety products and solutions for automobile enterprises.Established in 2003 and the headquater is located in Huizhou City,Guangdong Province.
MINGSHANG has over 20 years of experience in designing and developing visual safety systems for eliminating blind spots around vehicles to avoid the challenges that today's vehicles drivers face out on the open road.Certified with IATF16949:2016& IS09001:2008 International Quality Management. We Offers a wide range of wired/wireless rear view camera systems,car monitor,reversing camera,Mobile DVR,360 camera systems, intelligent AI monitoring system and remote driving system and more for commercial vehicles like commercial and school buses,RV’s and Motorhomes, Industrial&construction equipemnt,Cargo and Delivery Vans,Trucks and Semi-Trainlers,Argricultural vehicles&Equipment,Pickup Trucks and Tow Trucks.
