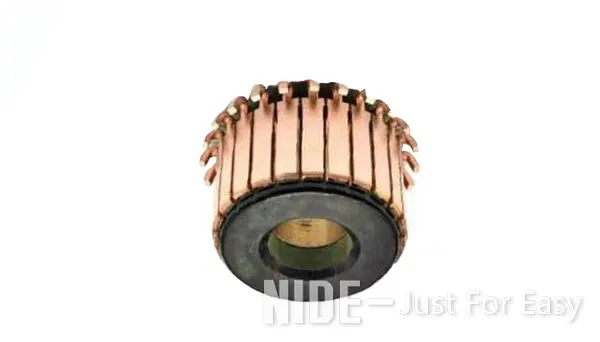

24p Tooth Copper Shell Electric Motor Commutator 10X28.2X20mm

Commutator Application

The commutator is apply to alternator motor, automotive industry, power tools, household appliances, and other motors.

Technical requirement of commutator:

1. Voltage test: bar to bar 500V, bar to bore 1500V, without breakdown and flashing.

2. Spin test: do spin test for the commutator under 140 centigrade, the speed is 5000RPM, the test continues for 3min. After testing, the deviation of outer diameter is less than 0.015, the deviation between bar and bar is less than 0.005.

3. Insulation resistance: 500V, more than 50MΩ

Technical parameter of commutator:

Commutator Picture Show

Nide produces more than 1200 different types of motor commutator, including hook type, riser type, shell type, planar type, ranging from OD 4mm to OD 150mm and we are professional in manufacturing commutator for many years. The commutators are widely applied to automotive industry, power tools, household appliances, and other motors.If our existing models are not suitable for you, we could also develop new tooling according to your drawing and samples.

NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
