Small Mini Mobile Crawler Crane 8ton 10ton 12ton 16ton 20ton 25ton, 35ton and etc.
Max. Lifting Weight, Max. Lifting Height available for customize according customer's require.

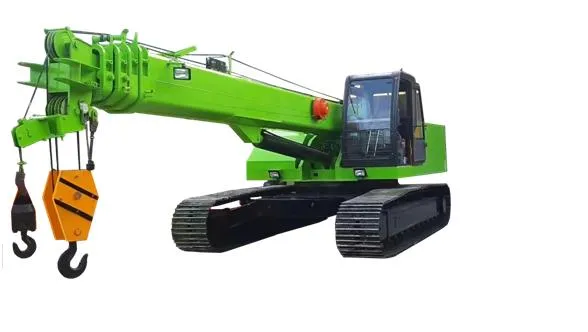

Telescopic Boom Crawler Crane 8T
8 Ton Crawler Crane
Telescopic Boom Crawler Crane 8T QFLD08
Main Specification:
Standard Model Specification | ||||
Item | Item | Unit | Data | |
Dimension | Overall Length | mm | 8300 | |
Overall Width | mm | 2200 | ||
Overall Height | mm | 2680 | ||
Weight | Machine Weight | kg | 7200 (Not Include Counterweight) | |
Travelling | Max. Travel Speed | km/h | 4 | |
Minimum turning diameter | m | 7 | ||
Gradeability | % | 25 | ||
Main performance | Max. Rated Load | T | 8 | |
Min. Work Radius | m | 3 | ||
Maximum Lift Torque | Main Boom | kN·m | 420 | |
Outrigger span | Longitudinal | m | 600 | |
Transverse | m | 1200 | ||
Length of Boom | Main Boom | m | 5 | |
Section of Boom | m | 5m*4 (Telescopic) | ||
Full-Extend Boom | m | 17 | ||
Engine |
|
| Yuchai | |
Rated Power |
| kW | 91 | |
Options | Air-Conditioning | |||
Closed Cabin | ||||
Dozer Blade L2200*W40mm | ||||
