Wheel 600/55-22.5
Tires
22.5''
Tubeless
ISO, DOT, CCC
Farm Dump Wagon
Bias Belted Tyre
Traction
Australia, Canada etc.
New
Australian Standard, American Standard etc.
Multistar
Exporting Packing
ISO, DOT
Shandong, China
401169
Product Description

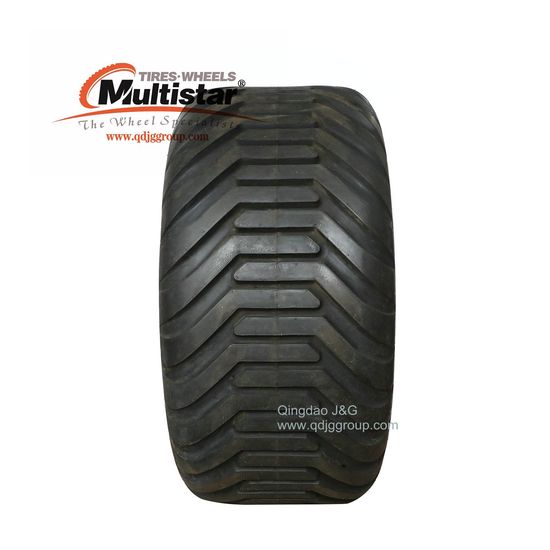

Assembly Agricultural Flotation Tyre 600/55-22.5
Size: 600/55-22.5
Tread Pattern:TRC-03
Ply: 16PR
Tyre Application: flotation tyre for agriculture implement ,such as trailers, spreaders, harvesters, tanker bins etc.
O. D: 1238mm
S. W: 600mm
TT/TL: TL
Rim: 20.00x22.5
1. Ideal tire for modern farming, suitable for both on and off-the-road applications
2. Low section implement tire, offering high load capacity with minimum soil compaction and crop damage.
3.Cutting and abrasion resistance tread design to keep excellent performance.
4.Special design endures very high loads at low pressure.
Flotation tyres and rims are also available by us:
| Tyre Size | PR | Brand | Pattern | TT/TL | Standard Rim | OD.*SC. | Max Load |
| 400/60-15.5 | 14 | Multistar | TRC-02 | TL | 13.00X15.5 | 910x400mm | 2900kg |
| 500/50-17 | 18 | Multistar | TRC-03S | TL | 16.00x17 | 950x500mm | 4125kg |
| 400/60-22.5 | 16 | Multistar | TRC-03S | TL | 11.75*22.5 | 1070*400mm | 4000kg |
| 550/45-22.5 | 16 | Multistar | TRC-03S | TL | 16.00*22.5 | 1070*550mm | 3075kg |
| 500/60-22.5 | 16 | Multistar | TRC-03S | TL | 16.0*22.5 | 1190*500mm | 4875kg |
| 550/60-22.5 | 16 | Multistar | TRC-03S | TL | 16*22.5 | 1235*550mm | 5450kg |
| 600/50-22.5 | 16 | Multistar | TRC-03S | TL | 20*22.5 | 1170*600mm | 4375kg |
| 650/50-22.5 | 16 | Multistar | TRC-03S | TL | 20*22.5 | 1125*645mm | 4500kg |
| 600/55-22.5 | 16 | Multistar | TRC-03S | TL | 20*22.5 | 1238*600mm | 5800kg |
| 700/55-22.5 | 16 | Multistar | TRC-03S | TL | 24.00*22.5 | 1238*700mm | 6700kg |
| 700/40-22.5 | 16 | Multistar | TRC-03S | TL | 24.00*22.5 | 1170*700mm | 4500kg |
| 600/55-26.5 | 16 | Multistar | TRC-03S | TL | 20.00*26.5 | 1333*600mm | 5800kg |
| 700/50-26.5 | 16 | Multistar | TRC-03S | TL | 24.00*26.5 | 1333*700mm | 5800kg |
| 800/45-26.5 | 16 | Multistar | TRC-03S | TL | 28.00*26.5 | 1343*800mm | 6000kg |
| 650/60-30.5 | 16 | Multistar | TRC-03S | TL | 20.00*30.5 | 1650*650mm | 5450kg |
| 750/60-30.5 | 16 | Multistar | TRC-03S | TL | 24.00*30.5 | 1650*750mm | 6000kg |
| 850/50-30.5 | 16 | Multistar | TRC-03S | TL | 28.00*30.5 | 1650*850mm | 6700kg |
| Tyre Size | Pattern | PR | Type | Fitted Rim | O.D (mm) | S.W (mm) |
| 7.00-12 | IMP-01 | 6 | TL | 5.00x12 | 665 | 185 |
| 10./80-12 | IMP-01 | 10 | TL | 7.00x12 | 710 | 264 |
| 10.0/75-15.3 | IMP-01 | 10 | TL | 9.00x15.3 | 760 | 274 |
| 10.0/75-15.3 | IMP-01 | 12 | TL | 9.00x15.3 | 760 | 274 |
| 10.0/75-15.3 | IMP-01 | 14 | TL | 9.00x15.3 | 760 | 274 |
| 10.0/75-15.3 | IMP-01 | 16 | TL | 9.00x15.3 | 760 | 274 |
| 10.0/75-15.3 | IMP-01 | 18 | TL | 9.00x15.3 | 760 | 274 |
| 11.5/80-15.3 | IMP-01 | 10 | TL | 9.00x15.3 | 844 | 297 |
| 11.5/80-15.3 | IMP-01 | 12 | TL | 9.00x15.3 | 844 | 297 |
| 11.5/80-15.3 | IMP-01 | 14 | TL | 9.00x15.3 | 844 | 297 |
| 11.5/80-15.3 | IMP-01 | 16 | TL | 9.00x15.3 | 844 | 297 |
| 11.5/80-15.3 | IMP-01 | 18 | TL | 9.00x15.3 | 844 | 297 |
| 12.5/80-15.3 | IMP-01 | 14 | TL | 9.00x15.3 | 885 | 312 |
| 12.5/80-15.3 | IMP-01 | 16 | TL | 9.00x15.3 | 885 | 312 |
| 10.5/80-18 | IMP-01 | 10 | TL | 9.00x18 | 885 | 275 |
| 12.5/80-18 | IMP-01 | 12 | TL | 11.00x18 | 965 | 308 |
| 12.5/80-18 | IMP-01 | 14 | TL | 11.00x18 | 965 | 308 |
| 13.0/65-18 | IMP-01 | 16 | TL | 11.00x18 | 890 | 336 |
| 15.5/65-18 | IMP-01 | 10 | TL | 13.00x18 | 980 | 395 |
| Tyre Size | Pattern | PR | Type | Fitted Rim | O.D (mm) | S.W (mm) |
| 14.0/65-16 | IMP-05 | 10 | TL | 11.00x16 | 870 | 353 |
| 14.0/65-16 | IMP-05 | 14 | TL | 11.00x16 | 870 | 353 |
| 15.0/55-17 | IMP-05 | 14 | TL | 13.00x17 | 850 | 391 |
| 15.0/55-17 | IMP-05 | 18 | TL | 13.00x17 | 850 | 391 |
| 19.0/45-17 | IMP-05 | 14 | TL | 16.00x17 | 865 | 453 |
| 19.0/45-17 | IMP-05 | 18 | TL | 16.00x17 | 865 | 453 |
| 500/50-17 | IMP-05 | 14 | TL | 16.00x17 | 935 | 500 |
| 500/50-17 | IMP-05 | 18 | TL | 16.00x17 | 935 | 500 |
| 15.0/70-18 | IMP-05 | 14 | TL | 13.00x18 | 990 | 391 |
We can also provide the matching rims and free assebmly service to save your time and cost.
About us ?
Our company J&G is specialized in manufacturing and exporting tyres/wheels for Agricultural Implement and trailers, baler and feed mixer, flotation trailer and tanker, combine harvesters, suggar cane, specialist irrigation machinery, forestry machine etc.
1.Markets and OE experience: Our prducts export more than 70 countries and 60% is for OE market. Such as in Canada, New Zealand, South Africa, European etc. Our OE customers from worldwide.
2. Storage: We have big warehouse in Qingdao Port, it will be easy to provide assembly tyre and wheel and make prompt shipment.
3. Quality: We are the dealer of Trelleborg and Alliance in China. We follow their technica to improve our quality of tyres. Our quality is proven to be good!
Over the years J&G has helped in increasing the base of loyal customers and winning over new customers. With time, the Multistar brand has drawn loyal and passionate customers in 77 countries
Why choose us ?
1,1000+ units of tyres and 3000+ units of rims on daily stock
2,600+ units of wheel rim drawings available for original Off-the-road equipments
3,Complete and stub Axles for farming trailers available
4,Special designs for customers' special requirements
5,24x7 aftersale services
6,15+ years outstanding experience and complete product range, servicing OE manufacturing clients
7,Small quantity for different size mix into one container
