UT38C
38c 37c
77-290mm
176mm 260mm
150.5-250mm
1 Year
1 Year
5th Wheel
ISO, ISO/TS16949
25T
Without ABS
Simple
3
6
Gray
New
UT
Pallect
3.5"
China
871690000
Product Description
| Technical Data | UT-50 | Complies with ISO and Australian standard AS1773-1990 |
| Imposed load(T) | 30T | |
| D-Value(KN) | 152KN | |
| Weight(KG) | 150KG | |
| Height(MM) | 150MM.173MM.185MM | |
| Tilt Angle | 12° | |
| Appearance Dimension | See Attachment( | |
| Color | Black | |
| King Pin Size | 50MM |

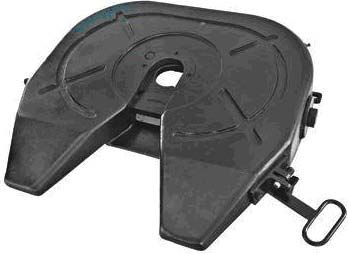

High strength casting steel top plate,heavy-duty applications with perfect performance and safety.
| Technical Data | UT-90 | Complies with ISO and Australian standard AS1773-1990 |
| Imposed load(T) | 40T | |
| D-Value(KN) | 195KN | |
| Weight(KG) | 200KG | |
| Height(MM) | 200MM | |
| Tilt Angle | 12° | |
| Appearance Dimension | See Attachment | |
| Color | Black | |
| King Pin Size | 90MM |
The fifth wheel is produced by fabrication according to DIN74081 and ISO3842.It suits for 2'' king pins(50mm)/3.5'' king pins(90mm).
| Type | H(mm) | D-Value(KN) | Impose lead(kg) | Weight(kg) | Tilt Angle(°) | King Pin Size |
| UT-36DV/150 | 150 | 152 | 2000 | 120 | 15° | 50mm/90mm |
| UT-36DV/172 | 172 | 152 | 2000 | 125 | 15° | 50mm/90mm |
| UT-36DV/185 | 185 | 152 | 2000 | 128 | 15° | 50mm/90mm |
| UT-36DV/205 | 205 | 152 | 2000 | 130 | 15° | 50mm/90mm |
High strength casting steel top plate with machined surface guarantee a long time smooth running. More safe for use with convenient and reliable auto-lock system.
| Type | H(mm) | D-Value(KN) | Impose lead(kg) | Weight(kg) | Tilt Angle(°) | Total weight of Outful(KG) | King Pin Size |
| UT-37DV/150 | 150 | 152 | 2000 | 150 | 15° | 65000 | 50mm |
| UT-37DV/170 | 170 | 152 | 2000 | 155 | 15° | 65000 | 50mm |
| UT-37DV/185 | 185 | 152 | 2000 | 160 | 15° | 65000 | 50mm |
| UT-37DV/250 | 250 | 152 | 2000 | 175 | 15° | 65000 | 50mm |
| UT-37DV/300 | 300 | 152 | 2000 | 180 | 15° | 65000 | 50mm |
High strength casting steel top plate with machined surface guarantee a long time smooth running. More safe for use with convenient and reliable auto-lock system.
| Type | H(mm) | D-Value(KN) | Impose lead(kg) | Weight(kg) | Tilt Angle(°) | King Pin Size |
| UT38C-1 | 195 | 260 | 36000 | 228 | 15° | 90mm |
| UT38C-1-2 | 195 | 170 | 28000 | 227 | 15° | 50mm |
First class fifth wheel producing as per technology from American. High strength casting steel top plate with machined surface guarantee a long time smooth running. More safe for use with convenient air actuated auto-lock system which can be operated in cab.
| Technical Data | UTH-3510 | Complies with ISO and Australian standard AS1773-1990 |
| Imposed load(T) | 25T | |
| D-Value(KN) | 152KN | |
| Weight(KG) | 150KG | |
| Height(MM) | 195MM/170MM | |
| Portrailt tilt Angle | 30° | |
| Lateral tilt Angle | 0° | |
| Appearance Dimension | See Attachment | |
| Color | Black | |
| King Pin Size | 50MM |
The fifth wheel can swing in 4 directions.
| Technical Data | UTJ-3800 | Complies with ISO and Australian standard AS1773-1990 |
| Imposed load(T) | 40T | |
| D-Value(KN) | 260KN | |
| Weight(KG) | 290KG | |
| Height(MM) | 290MM | |
| Portrailt tilt Angle | 15° | |
| Lateral tilt Angle | 7° | |
| Appearance Dimension() | See Attachment | |
| Color | Black | |
| King Pin Size | 90MM |
