Rail fastening system
1 Year
1 Year
Customized
ISO9001
Q235, 60si2 ,38si7, 45#
24 150mm to 270mm
Plain (Oil), Color Paint, Zinc, etc
4.6, 5.6, 8.8 10.9
DIN Asin BS
Crcc/ISO9001
Kingrail Parts
Wood or Iron Pallet
Rail Clip for Railway Fastening System
China
8418692090
Product Description

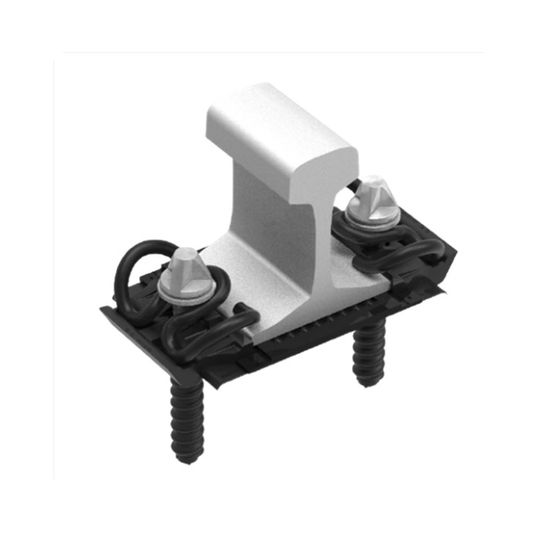

Rail fastening system is used for the fixing of rails to concrete sleepers
Kingrail Parts can provide NY-ES, NY-GN, RNY, NY type "e", GANY series elastic rail fastening systems.
Our RNY rail fastening system consists of 4 pcs staple RN plates, 4 pcs SL bolts, 4 pcs NY nylon washers, 2 pcs rail pad U-2, and 2 pcs insulator.
RNY rail fastening system
| Component | Raw material | Surface | Grade |
| Spring blade | 60Si2MN,65MN | plain ( oil), paint | |
| Rail pad | EVA/Elastomer/Rubber | plain | |
| Insulator | PA66+30%GF, PA6+30%GF,etc | plain | |
| Plain washer | Q235,45# | black, zinc, hdg | |
| T bolt | Q235, 35K, 45#, 40Mn2, 20MnSi | plain (oil), black, zinc, hdg, etc | 4.6, 5.6, 8.8 |
| Hex nut | Q235, Ningnan, 45# | plain (oil), black, zinc, hdg, etc | 5, 6, 8 |
NY-GN rail fastening system
Our NY-GN rail fastening system includes 4 pcs NY-GN elastic plates, 2 pcs insulators, 2 pcs insulators No.8, 2 pcs insulator No.6, 4 pcs SL bolts, 4 pcs NY nylon washers, and 2pcs rail pad U-2.
NY-ES Rail fastening system
One set of the NY-ES Rail fastening system consists of 4 pcs staple NY-ES elastic plates, 2 pcs interior rail insulator, 2 pcs exterior rail insulator, 4 pcs SL bolts, 4 pcs NY nylon washers, 2 pcs rail pad U-2.
