8.25r16lt 8.25r20 9.00r20 10.00r20 11.00r20
2 Years
Tube Type
16''- 20''
Radial Tyre
ECE, DOT
Mining
16PR
Steel Wire
Inner Tube
Customized
New
Yes
DOT, ECE, CCC
10-15 Days
All Position
Dump Truck, Mixer Truck
TRIANGLE/LINGLONG/AEOLUS
Customized
8.25r16lt 8.25r20 9.00r20 10.00R20 11.00R20
China
40112000
Product Description

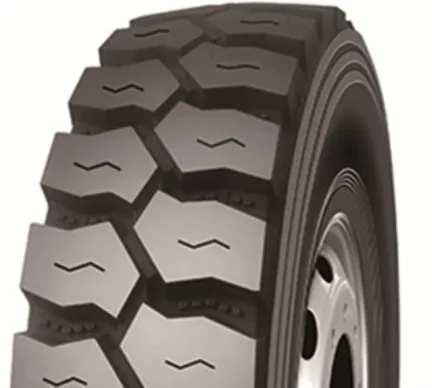

PREMIUM BRAND HEAVY DUTY TUBE TYPE ALL STEEL RADIAL MINING TRUCK TYRE/TIRES
The main features:
The mixed patttern on tread with deep tread depth offer superior driving force and protection against punture,
high abrasion,excellent adhesion.
Application condition:
Suitable for mountain roads and mine areas.
COMPANY INFORMATION
| SIZE | STANDARD RIM | LOAD/SPEED | TREAD DEPTH (MM) | MAX LOAD (KG) SINGLE/DUAL | |
| 8.25R16LT 16PR | 6.50H | 128/124M | 13.0 | 1800/1600 | |
| 10.00R20 18PR | 7.50 | 149/146L | 17.5 | 3250/3000 | |
| 11.00R20 18PR | 8.00 | 152/149L | 18.0 | 3550/3250 | |
| 12.00R20 18PR | 8.50 | 154/151L | 18.5 | 3750/3450 | |
| SIZE | STANDARD RIM | LOAD/SPEED | TREAD DEPTH (MM) | MAX LOAD (KG) SINGLE/DUAL | |
| 8.25R16LT 16PR | 6.50H | 128/124D | 18.0 | 1800/1600 | |
| 8.25R20 16PR | 6.50 | 139/137D | 18.0 | 2430/2300 | |
| 11.00R20 18PR | 8.00 | 152/149D | 23.0 | 3550/3250 | |
| 12.00R20 18PR | 8.50 | 154/151D | 24.0 | 3750/3450 | |
| SIZE | STANDARD RIM | LOAD/SPEED | TREAD DEPTH (MM) | MAX LOAD (KG) SINGLE/DUAL | |
| 11.00R20 18PR | 8.00 | 152/149K | 20.0 | 3550/3250 | |
| 12.00R20 20PR | 8.50 | 156/153K | 21.0 | 4000/3650 | |
| SIZE | STANDARD RIM | LOAD/SPEED | TREAD DEPTH (MM) | MAX LOAD (KG) SINGLE/DUAL | |
| 11.00R20 18PR | 8.00 | 152/149K | 22.0 | 3550/3250 | |
| 12.00R20 20PR | 8.50 | 156/153K | 22.0 | 4000/3650 | |
| SIZE | STANDARD RIM | LOAD/SPEED | TREAD DEPTH (MM) | MAX LOAD (KG) SINGLE/DUAL | |
| 10.00R20 18PR | 7.50 | 149/146G | 20.0 | 3250/3000 | |
| 11.00R20 18PR | 8.00 | 152/149G | 23.0 | 3550/3250 | |
| 12.00R20 20PR | 8.50 | 156/153G | 23.0 | 4000/3650 | |
| SIZE | STANDARD RIM | LOAD/SPEED | TREAD DEPTH (MM) | MAX LOAD (KG) SINGLE/DUAL | |
| 9.00R20 16PR | 7.00 | 144/142K | 20.0 | 2800/2650 | |
| 10.00R20 18PR | 7.50 | 149/146K | 21.0 | 3250/3000 | |
| 11.00R20 18PR | 8.00 | 152/149K | 19.0 | 3550/3250 | |
| 12.00R20 20PR | 8.50 | 156/153K | 22.0 | 4000/3650 | |
| AVAILABLE SIZE | STANDARD RIM | LOAD/SPEED | TREAD DEPTH | MAX LOAD (KG) SINGLE/DUAL | |
| 7.50R16LT 14PR | 6.00G | 122/118F | 16.0MM | 1500/1320 | |
| 10.00R20 18PR | 7.50 | 149/146F | 23.5MM | 3250/3000 | |
| 11.00R20 18PR | 8.00 | 152/149K | 21.0MM | 3550/3250 | |
| 12.00R20 20PR | 8.00 | 154/151K | 22.0MM | 4000/3650 | |
| 11R22.5 16PR | 8.25 | 146/143K | 22.0/25.0MM | 3000/2725 | |
| 11R24.5 16PR | 8.25 | 149/146K | 20.0/25.0MM | 3250/3000 | |
| 12R22.5 18PR | 9.00 | 152/149K | 22.0/25.0MM | 3550/3250 | |
| 13R22.5 20PR | 9.75 | 156/150K | 22.0MM | 4000/3350 | |
| 295/80R22.5 18PR | 9.00 | 152/149K | 20.0/23.0MM | 3550/3250 | |
| 315/80R22.5 20PR | 9.00 | 156/153L | 22.0MM | 4000/3350 | |
The main features:
The mixed patttern on tread with deep tread depth offer superior driving force and protection against punture,
high abrasion,excellent adhesion.
Application condition:
Suitable for mountain roads and mine areas.
| SIZE | STANDARD RIM | LOAD/SPEED | TREAD DEPTH (MM) | MAX LOAD (KG) SINGLE/DUAL | |
| 7.50R16LT 14PR | 6.00G | 122/118F | 16.0 | 1500/1320 | |
| 10.00R20 18PR | 7.50 | 149/146K | 20.0 | 3250/3000 | |
| 11.00R20 18PR | 8.00 | 152/149K | 20.5 | 3550/3250 | |
| 12.00R20 20PR | 8.50 | 156/153K | 21.0 | 4000/3650 | |
| 12.00R24 20PR | 8.50 | 160/157K | 31.5 | 4500/4125 | |
| 11R22.5 16PR | 8.25 | 146/143M | 25.0 | 3000/2725 | |
| 11R24.5 16PR | 8.25 | 149/146L | 25.0 | 3250/3000 | |
| 13R22.5 18PR | 9.75 | 154/151L | 21.5 | 3750/3450 | |
COMPANY INFORMATION
Passion Tyre is a leading player in the China tyre industry, which was established by senior insiders.
The founder has been in this industry for over 20 years while worked with global famous tyre group.
Passion Tyre provide products range from Passenger car tyre, Truck and bus tyre, Off the road tyre,
Industrial tyre,Agricultural tyres.
In the past few years, PASSION TYRE has formed an integrated sales network in the domestic and
global markets. 70% of our products are for export to over 100 countries.
OUR PLANT,WAREHOUSE, ADVANCE EQUIPMENT
CONTAINER LOADING
SALES NETWORK
FAQ
1. Production capacity---TBR: 6,000,000pcs/Year, PCR:10,000,000pcs/Year, OTR:500,000pcs/Year.
2. Delivery time---within 15 days for quantity less than 2 containers.
3. MOQ&Sample--MOQ is 20pcs,mixed different sizes in one container is acceptable.Sample is available.
4. guarantee------We provide guarantee paper for all tyre.
5. payment term----T/T, L/C, Western Union.
6. Certificate--- ISO9001,ISO16469,CCC, GCC,ECE R30/R54/R117,DOT certificates
