LAT9405XXY
Semi-Trailer
50T
ISO9001, CCC, BV Wmi
9000-10000mm
2240mm
Heavy Duty
Cross Arm Type
Flatbed
3
12
Not Self-dumping
ABS Anti-lock Braking System
Steel
New
1100r20-18/12r22.5-18
12
Fuwa (BPW Optional)
3
24000 Kg
13000X2500X2990 (mm)
Heavy Duty
AOTONG
in Nude
CCC ISO9001 SGS
Shandong, China
8701200000
Product Description
Customize the semi trailer according to your requiements. Professional semi trailer manufacturer with more than 30 years of production experience serve for you - AOTONG

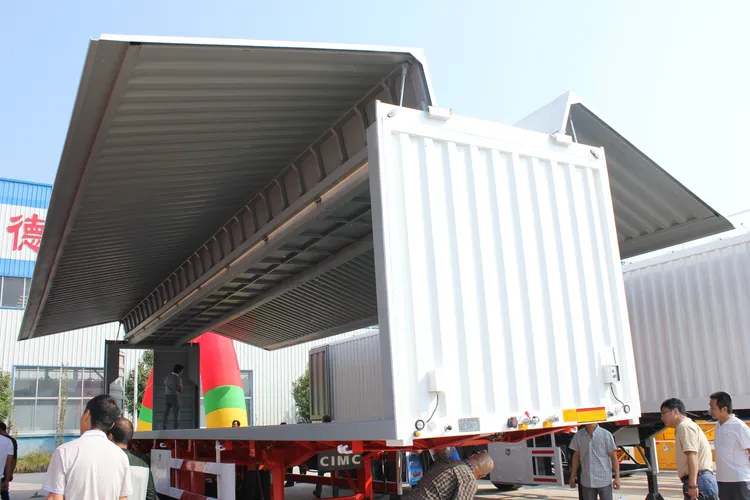

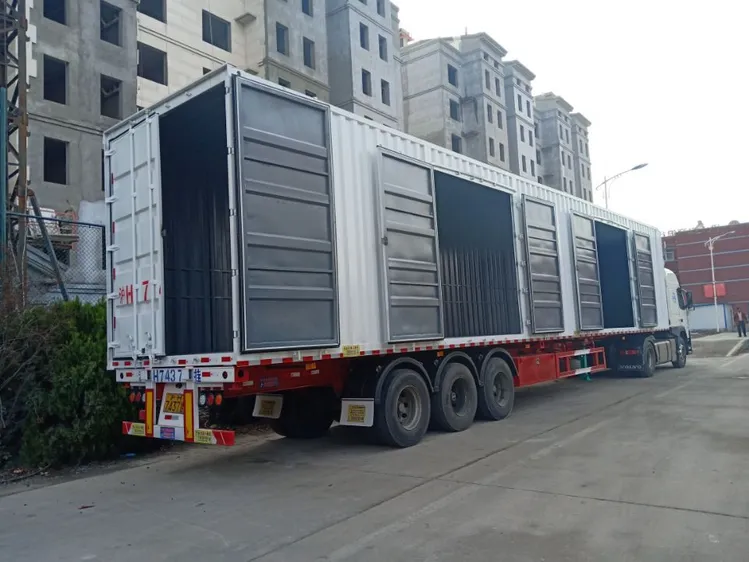

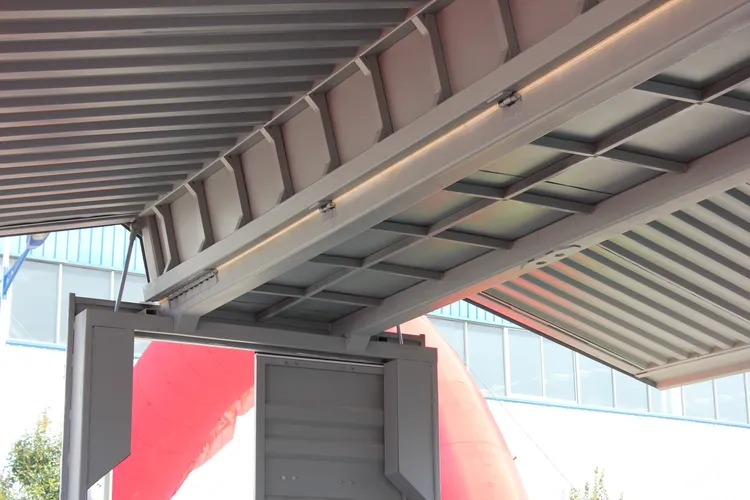

| Type: | Van Semi Trailer/Trailer van/Box Semi Trailer For Export Sale |
| Model: | LAT9450XXYC |
| Dimension: | 10000-13000*2550*3400 mm |
| Payload: | 60,000 kgs |
| Tare weight: | Approx. 9,500 kgs |
| Main beam: | Material Q345. Fabricated "H" beam height 500mm, Top flange thickness 14mm, Middle web thickness 8mm, Bottom flange thickness 16mm |
| Side beam: | 16# channel steel |
| Platform: | 3mm thick checkered plate. |
| Side walls: | 600-1800 mm height. |
| Kingpin: | JOST 2" Kingpin, bolted in type |
| Welding standard: | All welding are to be done by qualified welder per applicable national standard |
| Painting: | Complete Chassis sand blasting to clean rust, 1 coat of anti corrosive primer, twice coats of final paint |
| Suspension: | Leaf spring or Air suspension |
| Axle: | FUWA/BPW 13 tons axles |
| Brake system: | Dual line pneumatic brake, with hose and connector |
| Brake chamber: | 6 units T30/30 spring brake chambers |
| Air tank: | 40L, 2 pcs, China |
| Emergency relay valve: | WABCO/Shunanda relay valve |
| Tire: | 12R22.5, 12 pcs. |
| Landing gear: | Standard 28T two speed telescopic manual landing gear |
| Electrical | Voltage:24V Receptacle: 7 ways (7 wire harness) A full set of LED lights installed on the trailer, front rear side turning etc. |
| Spare wheel carrier | Two sets of spare wheel carrier |
| Accessory | One tooling box with a set of standard trailer tool |
Excellent design ability
We have many experienced designers, according to your needs to develop the most reasonable design and meet your customized needs.
Click for your own design!
Click for your own design!
In nude,Polish with water wax before shipment
1. By 40ft/45ft/40fr container
2. By bulk /roro ship
3. As your requirments.
Professional package saves freight cost for you. In order to prevent seawater corrosion,we will carefully Wrap film or covered tarpaulin.When goods arrive in Africa, Australia and even South America, they can maintain a good appearance.
High quality painting and professional transportation ensure good condition of goods.
We believe that we can win-win by providing detailed services.
★We are the direct factory for all kinds of good quality semi trailers with competitive price.We also have rich production experience in the following models.
Click to get the models that have been shipped to your country!
★It's established in 1992 with more than 30years experience and well equipped testing facilities and strong technical force.
★It covers a total area of 150, 000 square meters with more than 670 workers ( 16 senior titled personnels, 118 professionals).
★Up to now, 60 series with hundreds of special vehicles and related products, which are best selling in more than 30 countries.

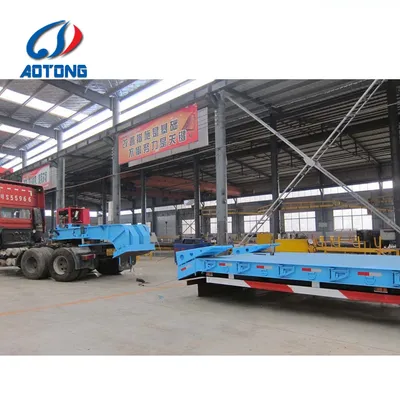

Welcome to visit our factory!
