Product description
14m-level articulated boom aerial work platform aiming at meeting customer demand has intelligent and perfect control system, adopts humanized layout and lubrication-free design, is easy for use and maintenance and provides comprehensive safety protection and abundant configuration options.
Product Highlights
1. Flexibility and efficiency
"Σ-type" double link jib has characteristics of compact structure and flexible extension, which can achieve vertical lifting and horizontal extension and has very strong obstacle climbing ability;180° rotatable platform provides bigger operation range;Narrow-type rotary table with compact structure can achieve "zero tail wagging" and improve operation efficiency.
2. Super strong site adaptability
Cross-country type chassis, four-wheel drive system, pouring-type cross-country wide tyre, full-time axle balanced system and 38kw strong power are configured so that the equipment has excellent terrain adaptability.
3. Advanced performance, safety and reliability
Full-range operation, visual and friendly control panel and easy operation; Electro-hydraulic proportional system control is accurate and efficient. Protective measures such as chassis incline protection, platform overload alarming, emergency landing, safety speed limit, flexibility start-stop technology, etc. are provided.
Parameter
| Item | Unit | Parameters |
|---|---|---|
| a Overall Length | mm | 6690 |
| b Overall Width | mm | 2260 |
| c Overall Height | mm | 2130 |
| d Wheel Base | mm | 2100 |
| Maximum Working Height | m | 15.75 |
| Maximum Platform Height | m | 14.05 |
| Maximum Working Range | m | 8.22 |
| Maximum Load Capacity | kg | 230 |
| 1stBoom luffing Range | ° | 0~+60 |
| 2ndBoom luffing Range | ° | -8~+75 |
| Crank Arm Luffing Range | ° | -60~+80 |
| Rotation Angle of Rotating Platform | ° | 355 |
| Maximum Tail Wagging | mm | 0 |
| Platform Size | mm | 1830×760×1150 |
| Platform turning angle | ° | 180 |
| Total Weight | kg | 6900 |
| Maximum Travel Speed | km/h | 6.1 |
| Minimum Turning Radius | m | 4.5 |
| Minimum Ground Clearance | mm | 250 |
| Maximum Grade Ability | % | 45 |
| Tire Specification | - | 315/55D20 |
| 404D-22 | ||
| Rated Power of Engine | kW/(r/min) | 38/(3000) |

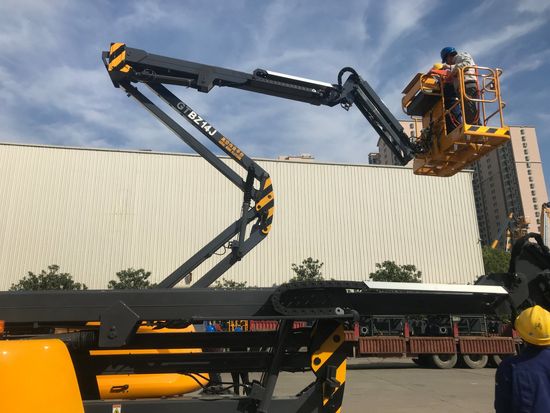

Product image
