QY55K5C-2
Video Technical Support, Online Support,
One Year Warranty
GS, RoHS, CE, ISO9001
New
>40m
>16t
3
Five-Arm
Straight Arm
58000 Kg
210kw
2009kn.M
90km/H
24m
China Brand
Nude Package
13700*2800*3800 mm
China
87051091
Product Description

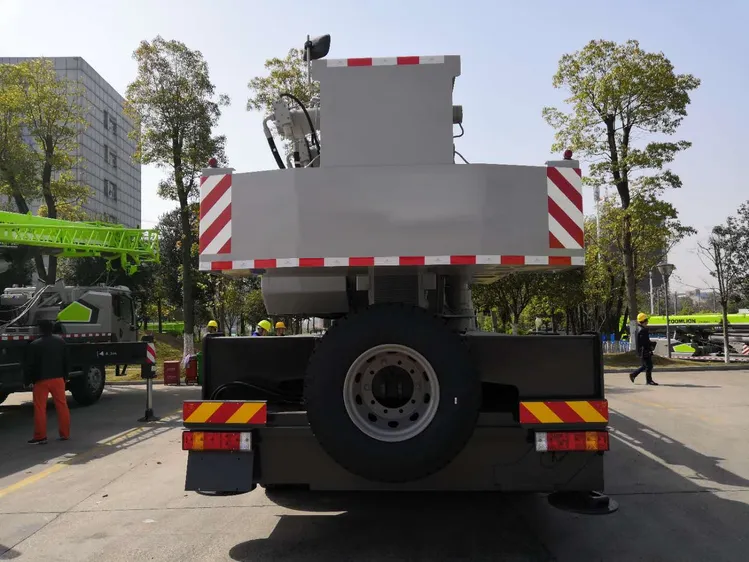

55Ton Small Hydraulic Crane Truck.
• Weight optimized and distortion-resistant design of low-alloy and high-strength steel with U-type boom profile providng the max lifting height up to 58m.
• Four-axle brand-new truck crane chassis:strong power,excellent maneuverability and traveling reliability.
• Overall upgraded controllability, with the working speed, movement smoothness and micro-mobility perfectly balanced.
• Man-machine engineering optimization based on operation safety and efficiently improvement.
• Four-axle brand-new truck crane chassis:strong power,excellent maneuverability and traveling reliability.
• Overall upgraded controllability, with the working speed, movement smoothness and micro-mobility perfectly balanced.
• Man-machine engineering optimization based on operation safety and efficiently improvement.
Item | Unit | Value | |
Working performance | Max. rated lifting capacity | kg | 55000 |
Max. load moment of basic boom | kN.m | 2009 | |
Max. load moment of main boom(fully extended) | kN.m | 1050 | |
Max. load moment of basic boom | m | 12.6 | |
Max. lifting height of main boom | m | 43.6 | |
Max. lifting height of jib | m | 58 | |
Working speeds | Max. hoist rope speed(Main winch) | m/min | 120 |
Max. hoist rope speed(Auxiliary winch) | m/min | 120 | |
Boom demrricking up time | s | 50 | |
Boom demrricking up time | s | 95 | |
Slewing speed | r/min | 0-2 | |
Driving parameters | Max. height above sea level | m | 2000 |
Max. driving speed | km/h | 76 | |
Max. gradeability | % | 40 | |
Min. turning diameter | m | ≤24 | |
Min. ground clearance | mm | 260 | |
Oil consumption per hundred kilometers | L | 43 | |
Mass | Deadweight in driving condition | kg | 42000 |
Complete vehicle kerb mass | kg | 41870 | |
Front axle load | kg | 16000 | |
Rear axle load | kg | 26000 | |
Dimensions | Overall dimensions(L×W×H) | mm | 13700×2800×3800 |
Outrigger spread(L) | m | 5.92 | |
Outrigger spread(W) | m | / | |
Tail slewing radius | mm | 3900 | |
Main boom length | m | 11.4 - 43.0 | |
Boom angle | ° | -2 - 80 | |
jib length | m | 9.2,14.6 | |
Offset | ° | 5,25,45 | |
