CPCD15 CPCD30
Provide
1 Year
Adjustable
Diesel Forklift
Diesel Engine
1T - 5T
Diesel
500mm
3000~5000mm
New
1960mm
1500 Kg
100mm
920mm
3000mm
Newindu
Standard
2250*1086*2040mm
China
Product Description
Product Description1.5Ton 3Ton 10Ton 4M 6M Diesel Forklift With Imoported Engine And Chinese Engine
This new series forklift trucks that made with the latest technical design provide you excellent operating performance.
High standard performance, comfortable driving experience and the simple and safe operation will make your work handier.
1.Environmental Friendly
- High efficiency hydraulic system to lower the fuel consumption.
- Using environmental friendly material.
- Damping device on the mast to reduce impact and vibration.
- Sound insulating and absorbing device are used to reduce the noise.
2.Ergonomics design
- Using power braking system to reduce footplate strength.
- Control lever right located to effectively reduce drivers arm tiredness.
- Dual combined switch lever as a car to enable easy operating.
- Wide mast with good visibility.
- Wide space for boarding and driving , increasing leg space.
- Engine automatic monitor control, when the engine oil pressure is too low or water temperature is too high, the engine will be automatically shut off.
3.Safety performance
- Enclose cabin is made of assembling steel plate, high strength overhead is designed to ensure the safety.
- Parking brake with safety protection device, when parking brake is working, the forklift will not move even the direction lever is turned.
- Safety device in mast hydraulic system prevents material falling down in case of hose broken.
- High pressure hose is designed far away from the driver.
- Safety wire harness, using waterproof plug
Specification
Characteristic | ||
Model | CPCD15 | |
Load Capacity | kg | 1500 |
Load center | mm | 500 |
Power Type | Diesel | |
Driving Style | Seat-Type | |
Dimension Parameter | ||
Lifting height(standard) | mm | 3000 |
Mast Tilt(fwd/bwd) | deg | 6°/12° |
Min.Turning Radius | mm | 1955 |
Overall Length(with/without Forks) | mm | 3472 |
Overall Width | mm | 1995 |
Overall Height(Mast without activity) | mm | 2519 |
Wheel Base | mm | 1400 |
Min.Under clearance | mm | 110 |
Lateral Fork Adjustment(Outside of Forks) | mm | 1030/244 |
Fork Length | mm | 1070 |
Fork Width/Thickness | mm | 122/40 |
Performance Parameter | ||
Traveling speed(Unloaded/Loaded) | km/h | 17/19 |
Max.Gradeability | % | 20 |
Weight | kg | 2700 |
Engine and Gearbox | ||
Engine Model | 4D27G31 | |
Cyl.No-borexstroke/Displacement | 4-90*105/2.76 | |
Emission | III | |

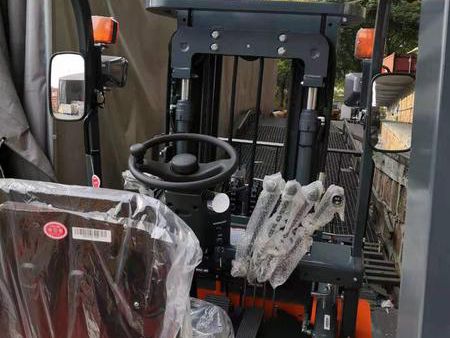

Detail Images
