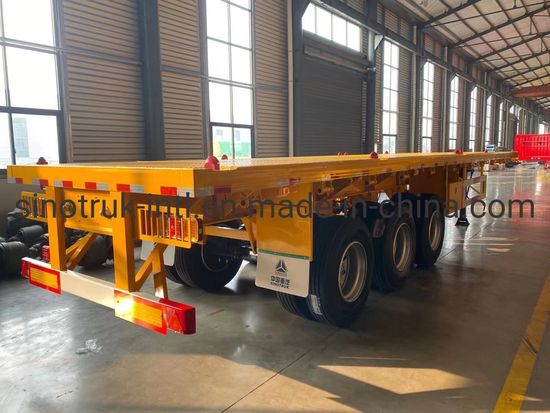

SINOTRUK SEMI-TRAILER 3 AXLES
A semi-trailer is a trailer whose axle is placed behind the center of gravity of the vehicle (when the vehicle is uniformly loaded) and is equipped with a coupling device that can transmit horizontal and vertical forces to the towing vehicle. Semi trailers are generally three axle semi trailers, which can be divided into eleven meter semi trailers, thirteen meter semi trailers, low platform semi trailers, etc. It is a heavy transport vehicle connected with the semi-trailer head through the traction pin.
Dimension:
Length: 12,336 mm±10mm (approximate)
Width: 2,490 mm ±10mm (including mud guard)
Height: 1,476mm @ unload (without twist locks)
King Pin Location: 900 mm from the front face of the front bolster (No confirm).
Axle spacer: 7200mm + 1310mm + 1310mm
Fifth Wheel Height: 1,230mm with the chassis level (No confirm).
Landing Gear location: 2,440mm behind the king pin location(No confirm).
Weight:
Tare Weight (Tolerance 0~-4%): approximate 7,490 kg
Max. Payload: 40,000 kg
GVWR: 47,490 kg
OEM Parts Configuration:
King Pin: 2" exchangeable(bolted) king pin, supplier & type: JOST KZ1010.
Twist Locks: Twelve (12) retractable ISO type twist locks.
Landing Gear: 2 speed road side winding with sand shoe, Lifting capacity 24T. Type: JOST D200T or HOLLAND 50000, left operating.
Suspension: Mechanical suspension with 8 pieces leaf springs (90mm width by 16mm thickness per leaf).
Axles: FUWA 13 tons capacity..
Tires: 12.00-20, Nylon Tyres,12 pieces;
Brake System: Dual air brake system, WABCO relay emergency valve, none ABS brake system .
Brake Chamber: 30/30 type on rear two axles, 30 type on front axle
Electrical System: Complete 24V installation with modular wiring harness. 7 pole plug placed at front in accordance to ISO, norms NO.1185.
Accessories:
Spare Tire Carrier: Equipped one set per chassis without spare tire.
Side Guard: None Steel Side Protection.
Tool Box: Equipped one set.
Painting: Color by customer's requirement.
1: Payment:
A:30% advance payment after signed the contract, 70% balance should be paid before delivery. We can accept T/T and L/C
2. Delivery time:
A:25-45 working days after payment is received. According to different trucks models
3. How about your product quality?
A: The products have passed the ISO, CCC, SGS, BV, and CONTECNA qualification certification. All our spare parts are from the original manufacturers with original part number and and anti-fake label, the quality is 100% guaranteed.
4: How long is the warranty period?A:The warranty of our products is 1 year or 50000km, which comes first
