ESQ115
2years
2years
Not Adjustable
Stacker
DC Motor
≤1T
Electric
500mm
New
580kg
Customer Required
PU
Customer Required
GP
Standard Export Package
1462*720mm
Jiangsu, China
84271090
Product Description

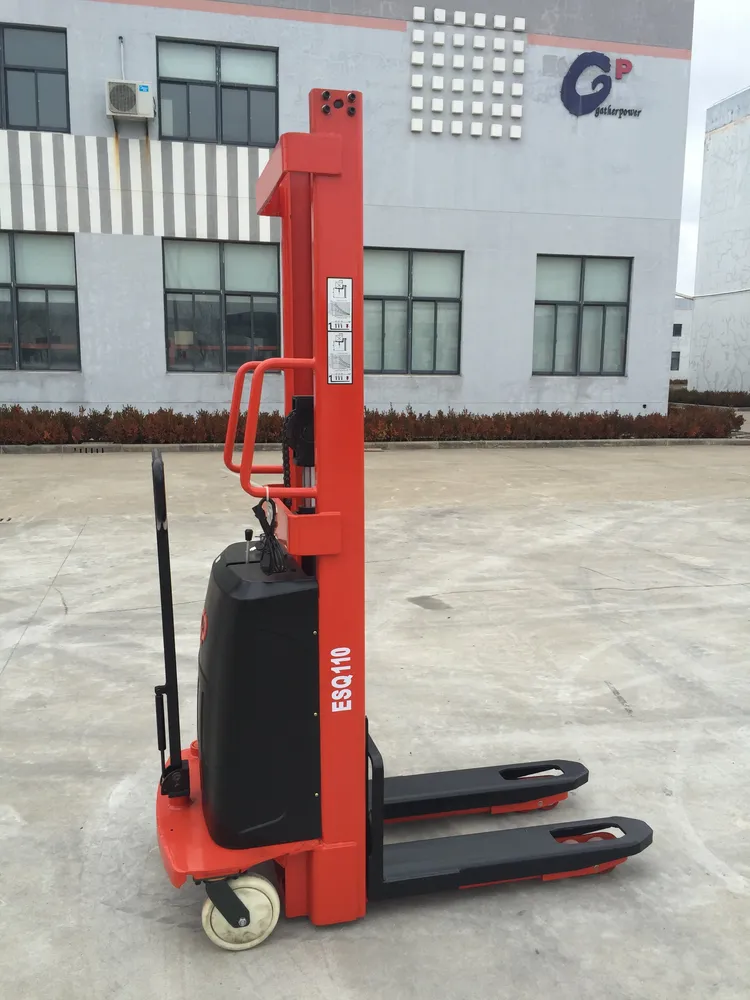

Main characteristics of 1.0-1.5t Semi-electric stacker
1) Integrated hydraulic pump station, low noise2) Built-in battery charger is standard
3) Maintenance free storage battery
4) Easy operating brake
5) Electronic power steering system
| operating type | walkie | |
| power source | battery | |
| load capacity | Kg | 1500 |
| load center | mm | 500 |
| wheel type(caster/bearing wheel) | PA/PU | |
| service weight | Kg | 580 |
| Wheel dimension(caster/bearing wheel) | mm | φ250x50 /φ80x70 |
| wheel base | mm | 1200 |
| Wheel quantity (caster/bearing wheel) | pcs | 2/2 |
| Operate handle (highest/lowest) | mm | 1209/793 |
| Overall length | mm | 1742 |
| overall width | mm | 740 |
| Fork dimension (thickness/length/width) | mm | 65/165/1150 |
| Outside width between forks | mm | 600 |
| min.ground clearance | mm | 25 |
| min.turning radius | mm | 1600 |
| Min.aisle width for pallets | mm | 2100 |
| Gradeability (laden/unladen) | % | 5/7 |
| Lift speed(laden/unladen) | mm/s | 80/110 |
| Lowering speed(laden/unladen) | mm/s | 115/100 |
| brake | Electromagnetic | |
| lift motor (DC) | Kw | 1.5 |
| battery voltage | V | 12 |
| battery capacity | Ah | 100 |
