CPD25-60
2years
2years
Not Adjustable
Electric Forklift
AC Motor
2500kg
Electric
500mm
3000~5000mm
New
Customer Demand
3 Tons
48V/630ah
Drive Motor & Pump Motor
USA Curtis
1070mm
1820mm
GP
Packing in Bubble Film
SMALL
China
84271090
Product Description

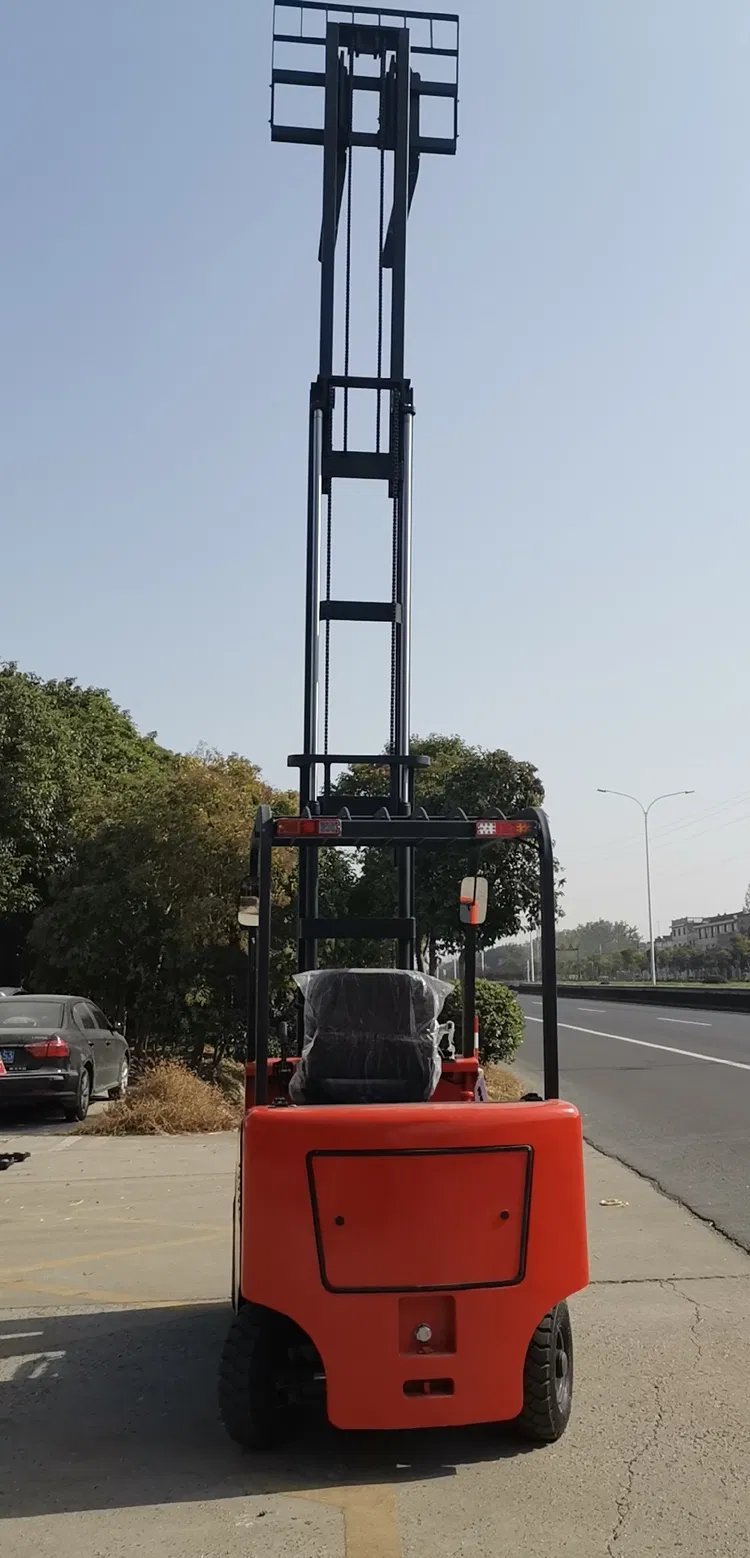

Electric forklift
The operation and control of electric forklifts are simple and flexible, and the operating intensity of their operators is much lighter than that of internal combustion forklifts. The electric steering system, acceleration control system, hydraulic control system, and braking system are all controlled by electrical signals, greatly reducing the labor intensity of the operators. This is very helpful for improving their work efficiency and accuracy.
| General | Manufacturer | GP | |||||||
| 1 | Model | CPD20 | CPD25 | CPD30 | CPD35 | ||||
| 2 | Rated capacity | kg | 2000 | 2500 | 3000 | 3500 | |||
| 3 | Load center | mm | 500 | ||||||
| 4 | Power type | Battery | |||||||
| 5 | Tire type | Front/Rear | Pneumatic | ||||||
| 6 | Wheels | Front/Rear | 2*2 | ||||||
| Dimensions | 7 | Lift height | mm | 3000 | |||||
| 8 | Free lift height | mm | 140 | 145 | |||||
| 9 | Fork size | L*W*T | mm | 1070*120*40 | 1070*120*42 | 1070*120*45 | |||
| 10 | Mast tilt angle | Fwd/Bwd | deg | 6/12 | |||||
| 11 | Overall length (without fork) | mm | 2325 | 2481 | |||||
| 12 | Overall width | mm | 1170 | 1265 | |||||
| 13 | Mast height fork lowered | mm | 2070 | 2040 | |||||
| 14 | Overall height fork raised | mm | 4030 | 4270 | |||||
| 15 | Overall height (overhead guard) | mm | 2170 | 2125 | |||||
| 16 | Turning radius (outside) | mm | 2320 | 2230 | |||||
| 17 | Load distance (centerline of front axle to front face of forks) | mm | 479 | 484 | 454 | 450 | |||
| 18 | Minimum Aisle -90 stack(Add load length and clearance) | mm | 4160 | 4360 | 4850 | 4950 | |||
| 19 | Wheel base | mm | 1500 | 1630 | 1720 | ||||
| 20 | Tread | Front | mm | 960 | 980 | ||||
| 21 | Rear | mm | 950 | 954 | |||||
| 22 | Min. Under-clearance | Bottom of mast | mm | 100/120 | 85/105 | ||||
| 23 | Bottom of frame | mm | 100/120 | 120/140 | |||||
| Performance | 24 | Speed | Travel Max. | With load | km/h | 11 | 10.5 | 12 | 13.5 |
| 25 | Without load | km/h | 12.5 | 12.5 | 13 | 13.5 | |||
| 26 | Lifting | With load | km/h | 260 | 250 | 250 | 280 | ||
| 27 | Without load | km/h | 400 | 390 | 380 | 380 | |||
| 28 | Max. Drawbar pull | With/without load | Kn | 8 | 8 | 10 | |||
| 29 | Max. Gradeability | With/without load | % (fan) | 10 | |||||
| Weight | 30 | Service weight | kg | 3980 | 4120 | 4850 | 5150 | ||
| Tyre | 31 | Tyre | Size | Front | 7.00-12-12PR | 23*9-10 | 28*9-15 | ||
| 32 | Rear | 18*7-8-14PR | 18*7-8 | 18*7-8-14PR | |||||

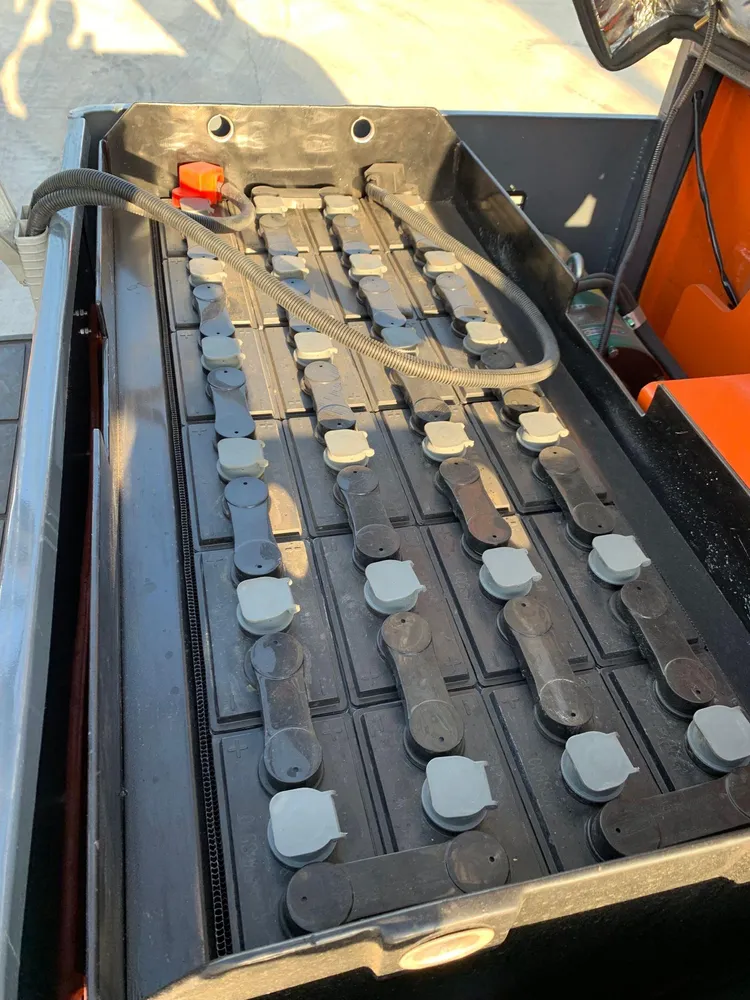

| power control | 33 | Battery | Voltage | V | 48 | 80 | |||
| 34 | Capacity | AH | 620 | 700 | 500 | 500 | |||
| 35 | Travel motor power | kw | 8 | 10 | |||||
| 36 | Subsidiary motor power | kw | 8.6 | 10 | 12 | 13.5 | |||
| 37 | controller | GE separate excitation controller | |||||||
