CPCD40
2years
2years
Adjustable
Diesel Forklift
Diesel Engine
1T - 5T
Diesel
500mm
3000~5000mm
New
Orange, Blue, Red
1070*140*55mm
6450kg
CE, ISO9001:2000, ISO14001:2000, OHSAS18001:1999
155mm
2000mm
Pneumatic
Optional
GP
Export Standard Container
3091*1485*2390mm
Shanghai
8427209000
Product Description

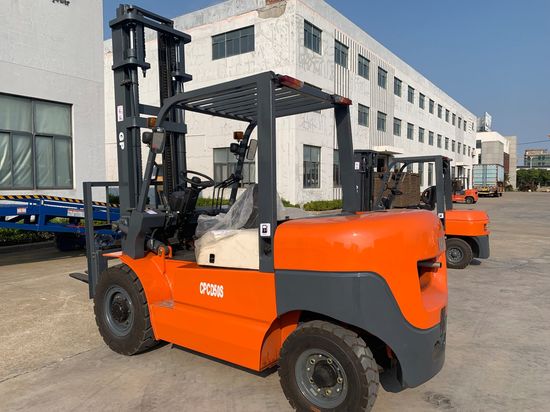

Diesel Forklift CPCD :
Durable hydraulics. Oil-filled cylinders The lift cylinder piston rads are filled with hydraulic oil to improve the durability of the lift cylinders.
Safe starting.Neutral safety mechanism.The neutral safety mechanism prevents the engine from being started unless the directional control lever is in the neutral position.This prevents the truck from moving abruptly when the starter switch is turned on both hydraulic and manual transmission trucks.
Outstanding visibility from the rear ,high mount not stop lamps.The stop lamps are installed at the rear on the top of thre overhead guard to provide improved visibility to nearby works or other vehicles behind the truck,thus offer added safety in the workplace.
| Manufacturer | SHANGHAI GP | |||||||
| 1 | Model | CPCD40S | CPCD40 | CPCD45 | CPCD50S | |||
| 2 | Rated capacity | kg | 4000 | 4000 | 4500 | 5000 | ||
| 3 | Load center | mm | 500 | 500 | ||||
| 4 | Gearbox change speed type | Hydraulic/ Mechanical | ||||||
| 5 | Power type | Diesel | ||||||
| 6 | Tire type | Front/ Rear | Pneumatic | |||||
| 7 | Fork outside spread | Min/ Max | mm | 280/1280 | 280/1380 | 300/1380 | ||
| 8 | Wheels | Front/ Rear | 2/2 | |||||
| 9 | Lift heightH | mm | 3000 | |||||
| 10 | Free lift heightH4 | mm | 150 | 155 | ||||
| 11 | Fork size | mm | 1070×140×50 | 1070×140×50 | 1070×140×55 | 1070×150×55 | ||
| 12 | Mast tilt angle | Fwd/ Bwd | deg | 6/12 | ||||
| 13 | Overall length ( without fork) | mm | 2935 | 3091 | 3091 | 3125 | ||
| 14 | Overall width | mm | 1410 | 1485 | ||||
| 15 | Mast height fork lowered | mm | 2235 | 2390 | ||||
| 16 | Overall height fork raised | mm | 4273 | 4275 | ||||
| 17 | Overall height ( overhead guard) | mm | 2190 | 2250 | ||||
| 18 | Turning radius ( outside) | mm | 2800 | 2790 | 2830 | |||
| 19 | Speed | Travel speed | With load | km/h | 19/18 | 15/14 | ||
| 20 | Without load | km/h | 24/22 | 22/20 | ||||
| 21 | Lifting speed | With load | mm/ sec | 19/18 | 15/14 | |||
| 22 | Without load | mm/ sec | 450/400 | 480/450 | 480/430 | |||
| 23 | Load distance( centerline of front axle to front face of forks) | mm | 510 | 562 | 510 | 562 | ||
| 24 | Wheel baseY | mm | 1860 | 2000 | ||||
| 25 | Tread | Front | mm | 1160 | 1180 | |||
| 26 | Rear | mm | 1100 | 1190 | ||||
| 27 | Min. Under- clearance ( full load/ no load) | Bottom of mastM | mm | 145/175 | ||||
| 28 | Bottom of frameF | mm | 180/190 | |||||
| 29 | Max. Drawbar pull | KN | >20 | >21 | ||||
| 30 | Max. Gradeability | % | >=15 | >=20% | ||||
| 31 | Self weight | kg | 5380 | 6450 | 6770 | 7050 | ||
| 32 | Front | Size | Front | 250-15-16R | 300-15-18PR | |||
| 33 | Rear | Rear | 7.00-12-12R | 7.00-12-12PR | ||||
| 34 | Brake | Brake | Service | Hydraulic- Foot pedal | ||||
| 35 | Parking | Mechanical- Hand lever | ||||||
| 36 | Transmission | Battery | Voltage/Capacity | 2-12V/80AH | ||||
| 37 | Internal | Model for option | 1.XINGCHANG 498BPG/495BPG;2.WEICHAI; | |||||
| combustion | LUOCHAI | |||||||
| engine | MITSUBISHI | |||||||
| 38 | Transmission | Type | Hydraulic | |||||
| 39 | shift(Fwd/ Rvs) | 2/1 | ||||||
