FA3FKF01B1
warranty policy
1 year for main parts
Flatbed Style
Automatic
Euro 4
1-10t
Diesel
4×2
≤5
＜150hp
＜4L
ECE
Tubeless
New
WAW
Nude
4 ton
China
8704210000
Product Description
The model equips with JE493 engine with stable perofrmance.The engine emission standard is EURO 4.
| Model | FA3FKF01B1 | ||
| Emission standard | EURO 4 | ||
| Fuel type | Diesel | ||
| Cabin | 2000mm,single seat | ||
| Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 5995×2210×2370 | |
| Dimensions of the cargo body(LxWxH)mm | 4170×2010×400 | ||
| Driving type | 4×2 | ||
| Wheel base (mm) | 3360 | ||
| Wheel track (front/rear) (mm) | 1700/1590 | ||
| Min. ground clearance (mm) | 200 | ||
| Weight data | Curb weight (kg) | 2830 | |
| Rated payload(kg) | 3000 | ||
| Persons in cab (persons) | 3 | ||
| Gross vehicle weight(kg) | 6025 | ||
| Whole vehicle main performance | Max. speed(km/h) | 110 | |
| Max. slope of climb(%) | 25 | ||
| Min. turning radius(m) | 6 | ||
| Engine | Model | JE493 | |
| Displacement(L) | 4.214 | ||
| Rated power(KW/rpm) | 85/3200 | ||
| Max torque (N.m/rpm) | 285/2000 | ||
| Steering gear | Recirculating ball-type (Hydraulic steering) | ||
| Brake system | Service brake | Pneumatic brake | |
| Parking brake | Air-cut brake | ||
| Auxiliary brake | Exhaust brake | ||
| Tyre size | 700R16 | ||
| Electric device | Rated voltage (V) | 2V | |
| Battery | 100AH | ||
| Standard allocation | |||
| Heating system | √ | ||
| Adjustable steering wheel | ○ | ||
| Power steering | √ | ||
| Fairing | ○ | ||
| Ventilation skylight | √ | ||
| Air conditioner | ○ | ||
| Clutch booster | √ | ||
| Electronic control window | ○ | ||
| Disc brake | × | ||
| ABS | √ | ||
| √ : Standard Equipment ○: Optional :Under develop ×: Not develop | |||

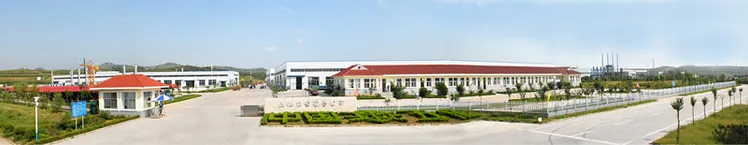

Wuzheng Group is one of the key players of machinery engineering in China, originated in 1961. It set up agricultural vehicle business in 1984 and in 2000 was restructured as private ownership. Nowadays, a diversified industrial pattern of agricultural vehicles, automobiles, agricultural equipment, sanitation equipment and modern agriculture, boosts a coordinated development. 12,000 employees and total assets of 14 billion yuan ground it in reputation and honorable tittles of national, provincial, municipal and industrial levels.
Diversified Industrial Pattern
Wuzheng is committed to innovation-driven industry and product upgrades.
1 Wuzheng Tricycles -Wealth Creator
Since 2010, Multiple functions such as transportation, faming, mining, trading and etc. forge a fame of No.1 sales in agricultural vehicle industry and No.1 brand in the nationwide.
In addition, 3MX, developed by international R&D team, dominates the industry with subversive styling, invention patents, 30 utility model patents, 12 appearance patents, 86 product innovations than in previous 40 years.
2 Feidi Motors- Light Truck Navigator
In 2005, Wuzheng set foot in automobile industry, having cultivated Feidi W, Feidi Q, Feidi WAW, Feidi DITO series
In 2016-2017, DITO family(logistic model, race model, double-row model, medium truck, RV, new-energy model) was launched in succession to cater for diversified market demands.
3 Agricultural Equipment- Booster for Agricultural Modernization
In 2009, Wuzheng renovated it position in senior market after M&A, providing products with high added values and strong competitiveness. RENOMAN of 180~260hp, silage, corn, wheat, and peanut harvesters, tobacco machinery and etc, enrich the product lineup.
4 Sanitation Equipment- Industry Pioneer
On the occasion of sanitation integration and rural reconstruction, Wuzheng has been devoted to providing solution package from collection, disposal to transportation such as hooking-arm model, dumping model, sprinkler, sweeper, waste transfer station and etc.
5 Modern Farming- Participant of international agricultural & livestock
Advanced R & D Analysis and Tests
As a"Corporate technical center", "Industrial design center" "CNAS center"identified by the nation and academician and postdoctoral workstation, Wuzheng undertakes and is engaged in 40+ nationwide technological supporting projects, 630 invention patents and utility model patents and formulation of 60 national and industrial standards and etc.
