24V 150A Alternator for Daewoo Engine Jf2150 with 2V Pulley

Supplier Ruian Runrun Auto Parts Co., Ltd.
Price $245.00 / Pieces
Availability In Stock
Mini Order:
+-
Subtotal: $2450

Purchase details

Payments:

Tax:

Tax Included

Returns&Refunds:

Eligible for refunds within 30 days of receiving products. returns and refunds


JF2150
One Year
12 Months
100% Copper, Electronic
RQNRQN
Carton Pallet
SGS INTERTEK
China
8511509000
Product Description
Name:ALTERNATOR JF2150 WITH 2V PULLEY 24V 150A FOR DAEWOO ENGINE 2A 86MM
Voltage (V)24
Amperage (A)150A
Material:100% Copper, Electronic
Specification:SGS INTERTEK
Trademark:RQNRQN
HS Code:85114099
Transport Package:Carton Pallet
Origin:China
Warranty12 Months





Main Features of the Product
1. High-precision shifting balanced rotor
2.Stator and rotor are adopted by the use of high-duty
technologies and they are high in insulation.
3.High-efficiency rectifying diodes and best cooling
efficiency (replaced by imported ones)
4.Imported electrical machineries are designed with
special overloading NSK TM3/28 bearings.
5.Each rear-bearing is designed with double bearings
(NSK204+204).
6.Durable carbon-brush.
7.Choice belt pulleys


Characteristics of Generator
Generator operating Voltage:28V
Maximum output current(in hot status):150A
Operation temperature: -40ºC-90ºC
Highest rotary speed:8000r/min
Steering:Double directions
Suitable for air-conditioned bus and coach



Technical requirements:
1.Rotary direction:double direction
2. Operating temperature: -40ºC-90ºC
3. Rotary speed:6000r/min,Highest rotary speed:8000r/min
4. Performance parameter:
In hot status: U=27V n=2000r/min I≥120A
U=27V n=6000r/min I≥154A
5.Beats on operating surface of belt pulley: ≤0.5
6.After the generator is assembled, it must be nimble, without any
abnormal sound or any parts mis-assembled or fail to be assembled.
7.Torque for the outboard nut of M6 output bolt under load condition:
M6,M8:1-2N.M;M5:0.5-1N.
8.The generator works with storage battery.

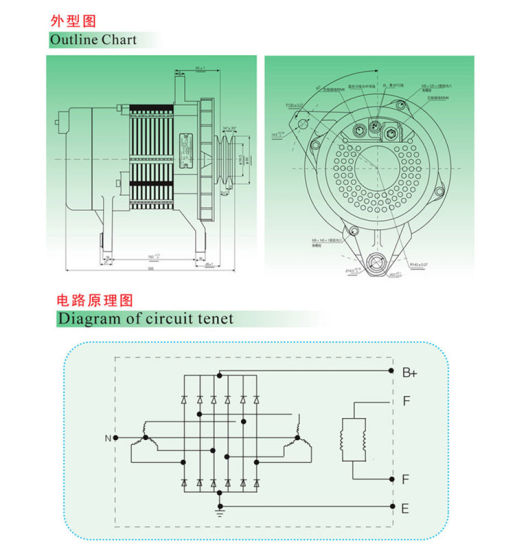

9.The size of the following rough outlines are used for inspecting sizes.
10.The double-set electrical machinery has 6 pairs of paw-poles.
11.This electrical machinery shall be used in concert with a suitable adjustor.






Q:1.How do you control the products' quality?
A:Auto inspection machine and manual testing together before packing.

Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Paypal,Western Union,MoneyGram

Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make your logo.

Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you need to pay the sample and courier cost.

Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.

Q:6.What is your delivery time?
A:Usually it takes 5-45 working days depends on items and quantity.

Q:7.What is your warranty time of the products?
A:12 months
