8200-11
1 Year
1 Year
Alternator
Silicon Rectification Generator
Six Tubes
9(≥90A)
Inner Bonding
Claw-pole Type
Electromagnetic Vibratory
12V
Front
Cw
Neutral Packing
Yancheng
85115090
Product Description
| Unit Type | Alternator |
| Part Type | UNIT |
| Voltage | 12 |
| Rotation | CW |
| Dimension | Replacement 105A CS130D Unit: Mtg. Ear 1 Hole: M8x1.25 Threaded Mtg. Ear 2 Hole: 10mm Unthreaded B+ Terminal: M8x1.25 |
| Amperage | 105 |
| Clock | 11 |
| Pulley Class | S6 |
| Regulator | IR |
| Fan Type | IF |
| Manufacturer | DELCO |
| Brief | PONTIAC GRAND PRIX 3.8L 1997 6-GROOVE PULLEY 62mm OD DELCO CS130D 11:00 PLUG ADDL INFO: #702 REGULATOR |

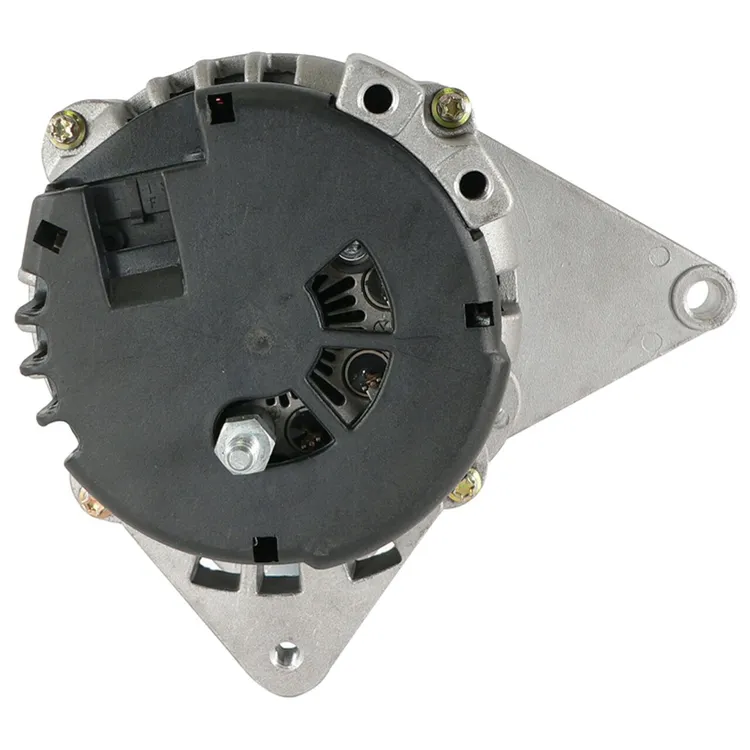

| Detailed | This is a Delco CS130D Alternator. This Unit Has 2 Short Bottom Mounting Legs, and a Long Side Mounting Ear at 3:00, But No True Top Ear. The Side Mounting Ear is Unthreaded. The Original 8200-11 Used a #703 Delco Regulator. Later Versions Actually Came with a Revised #703, and Then a #9734. Both This Revised #703 and the #9734 were I-Terminal Style Regulators, BUT Actually Had the Low Volt Turn-On Like the #705 Used Later (See 8224-11). Because of This Unique Running Change In the #703, and Because of the Unique Characteristics of the #9734, We are Actually Cataloging the Later 8200-11' s Using These Regulators Now (5/2003) as 8224-11' s, in That the #705 Seems to work Fine When Replacing Both This Late #703 and #9734. There Does Not Seem to Be a Problem with the I- Terminal (#703 and #9734) vs. F-Terminal (#705) Issue According to Those Who Have Made This Supersession. We are Also Adjusting the Applications That are Affected. See 8224-11 For More Information. |
| MFG# | MFG NAME |
|---|---|
| 400-12112 | ARROWHEAD |
| 400-12112 | J & N |
| ADR0091 | ARROWHEAD (OLD) |
| 8200-11 | LESTER |
| 240-6137 | PIC |
| 321-1423 | AC DELCO |
| 334-2447 | AC DELCO |
| 020182 | ANDRE NIERMANN |
| 110-8200 | BARSANCO |
| 8200-11 | BBB |
| 8200-11 | BBB NEW |
| N8200-11 | BBB NEW |
| 186-6154 | BECK ARNLEY |
| 188-6154 | BECK ARNLEY NEW |
| 112615 | CARGO |
| 10464075 | DELCO |
| 10480065 | DELCO |
| 10480264 | DELCO |
| RM1261 | DELPHI |
| 210-5118 | DENSO FIRST TIME FIT |
| A-1434 | DIXIE |
| A-1434N | DIXIE NEW |
| CS130D | FAMILY |
| 47-2041 | MINNPAR |
| 8194611 | MPA |
| 13-4594D | NAPA |
| 1N-4594D | NAPA POWER NEW |
| 213-4594D | NAPA POWER PREMIUM PLUS |
| 213-4732D | NAPA POWER PREMIUM PLUS |
| 13-4594D | NAPA POWER SUPREME |
| 13-4732D | NAPA POWER SUPREME |
| ALT-1412 | NSA |
| 21099 | REMY LIGHT DUTY |
| 91515 | REMY LIGHT DUTY NEW |
| 8194 | USA INDUSTRIES |
| 1-1985-01DR | WAI (OLD) |
| 90-01-4236 | WILSON |
| 90-01-4236 | WILSON NEW |
| 90-01-4236N | WILSON NEW |
