017870 1962335
No Less Than 50000km
1 Year
Brake Discs
Steel
Front or Rear
ISO/TS16949, ISO9001, AMECA
Disc
Floor
South America, North America, Eastern Europe, Mild East, Southeast Asia, Western Europe, Eastern Asia, South Asia
Customized
Zan Brand / Customized Package / Neutral Package
45*45*15CM / 8.5KG
China
Product Description
Carfitment and part number
| OEM No. | Ref. |
|---|---|
| 017870 1962335 | BCR336A, 10.54100, FCR336A, SCH100,296.000-00A |
| Car Fitment | Model | Year |
|---|---|---|
SCHMITZ CARGOBULL | - | - |
Quick Details
OE NO.:
Reference NO.:
Size:
Material:
Warranty:
Car Model:
Brake Disc Type:
Fitting Position:
MOQ:
ECE R90:
Payment Term:
017870
Reference NO.:
BCR336A, 10.54100, FCR336A, SCH100,296.000-00A
Size:
430x168.5x45mm
Material:
HT250 / G3000
Warranty:
1 Year
Car Model:
SCHMITZ CARGOBULL
Brake Disc Type:
Internally Vented
Fitting Position:
Front & Rear Axle
MOQ:
100 PCS
ECE R90:
Approved
Payment Term:
T/T 30% Deposit,the balance made before shipment
Product Description

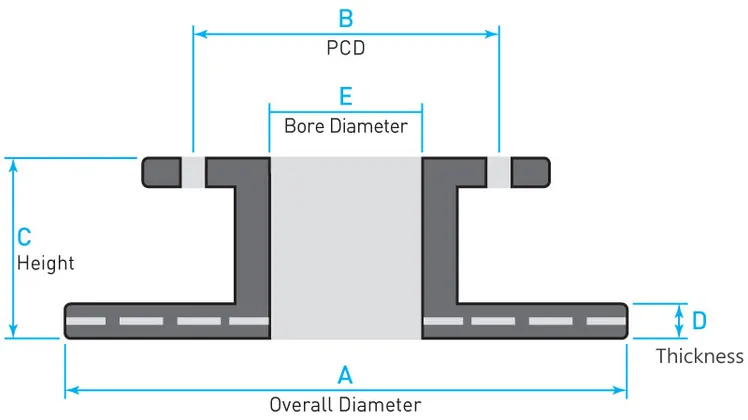

Type | A | B | C | D | E | HOLES |
Vented | 430 | 335 | 168.5 | 45 | 290 | 10 |
VEHICLE APPLICATION | ||||||
SCHMITZ KNORR SB7000 - TRAILER | ||||||
Chemical Composition | ||||||
Material | C | Si | Mn | S | P | Cr |
HT250/G3000 | 3.10-3.55% | 1.90-2.40% | 0.50-0.90% | 0.15% max. | 0.15% max. | 0.25% max. |
Microstructure
Graphite Structure: Predominately Type A, Size 3-5
Pearlite: 95% min.
Graphite Structure: Predominately Type A, Size 3-5
Pearlite: 95% min.
Ferrite: 5% max.
Mechanical Property
Hardness: 187 - 241 HB
Mechanical Property
Hardness: 187 - 241 HB
Tensile Strength: 220 Mpa (min.)
Machining Requirement
Runout: 0.05mm (max.)
Machining Requirement
Runout: 0.05mm (max.)
DTV: 0.127mm (max.)
Roughness: Ra 1.6μm (max.)
Roughness: Ra 1.6μm (max.)
Dynamic Balance: 100% Balanced
1) Full range - 500+ numbers for Commercial Vehicles & 2600+ numbers for Passenger Cars
2) TS16949 Quality System Certification & ECE R90 Certified
3) Competitive Factory Price
4) 100% crucial dimension inspection
5) Leading supplier in Europe, South America, North America and Middle East.
1) Full range - 500+ numbers for Commercial Vehicles & 2600+ numbers for Passenger Cars
2) TS16949 Quality System Certification & ECE R90 Certified
3) Competitive Factory Price
4) 100% crucial dimension inspection
5) Leading supplier in Europe, South America, North America and Middle East.
CV Brake Discs
- Over 500 part numbers
- Basic material, as well as in high carbon
- Automatic production lines are used
- Basic material, as well as in high carbon
- Automatic production lines are used

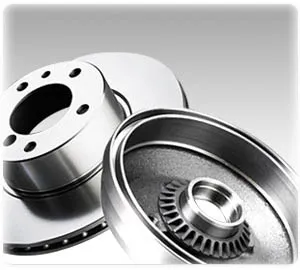

Car Brake Discs/Drums
- Over 2600 part numbers
- Fast launch of new items to market
- Precise tolerance
- 100% balancing and edge marking
- Screw KITs available
- Fast launch of new items to market
- Precise tolerance
- 100% balancing and edge marking
- Screw KITs available
High Carbon Brake Discs
- Increased noise damping capability
- Improved heat dissipation
- Better resistance to thermal cracking and distortion
- Improved heat dissipation
- Better resistance to thermal cracking and distortion
Coated Brake Discs
- Environmentally friendly hexavalent chromiumfree
anti-corrosion coating
- Install the disc right out of box, no cleaning needed
- Install the disc right out of box, no cleaning needed
- Provides a long lasting clean appearance
Drilled/Slotted Brake Discs
- Enhanced braking power
- Continuous cleaning of the brake pad surface
- Cooler operating temperatures
- Slots also serve as a wear indicator
- Continuous cleaning of the brake pad surface
- Cooler operating temperatures
- Slots also serve as a wear indicator
Black Hat Brake Discs
- Black coating on the hat
- Enhanced rust prevention and clear appearance
- For passenger cars, light / medium duty trucks
- Enhanced rust prevention and clear appearance
- For passenger cars, light / medium duty trucks
Casting finish
- Smooth
- Even
- Free of blow holes
Machined Area
- Sharp cutting tool
Vent configuration
- Correct design used as OE design or better
Material Specification
- Correct ingredients used
- Cast iron properties correct
- Cooled correctly at a constant controlled temperature to give correct hardness
- Smooth
- Even
- Free of blow holes
Machined Area
- Sharp cutting tool
Vent configuration
- Correct design used as OE design or better
Material Specification
- Correct ingredients used
- Cast iron properties correct
- Cooled correctly at a constant controlled temperature to give correct hardness
