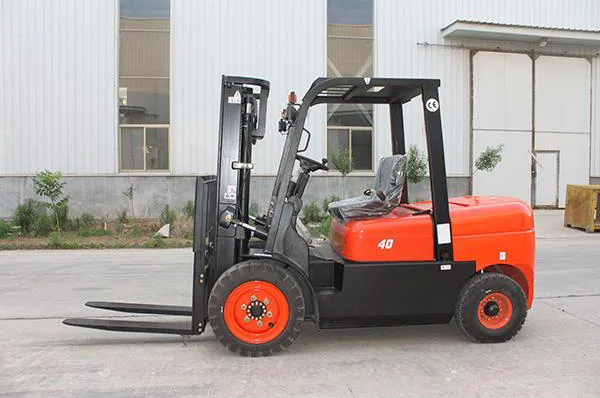

2.5Ton Diesel Forklift
High Quality 2.5Ton Loading Capacity Electric Forklift Truck 2500KGS Diesel Forklifts with CEVochains 1ton, 2ton,3ton, 3.5ton Capacity Hydraulic Stacker Trucks Diesel Forklift Truck
Application:
As lifting and transporting machineries, 2.5Ton Diesel Forklift Truck is widely used for loading, unloading and transporting the packaged goods in the construction site, factories, warehouses, stations, wharves, ports and so on.
With other attachments of forklift trucks, it can be used for the handling of the bulk goods and unpackaged goods.
Technical parameters
General |
| Brand | VOCHAINS | |
1 | Model |
| VSD25FR | |
2 | Rated capacity | kg | 2500 | |
3 | Load center | mm | 500 | |
4 | Power type |
| Diesel | |
5 | Transmission |
| Hydraulic/Mechanical | |
Dimensions | 6 | Lifting height | mm | 3000 |
7 | Free lifting height | mm | 60 | |
8 | Turning radius | mm | 2450 | |
9 | Overall length | mm | 3605 | |
10 | Overall width | mm | 1160 | |
11 | Overall height | mm | 2095 | |
12 | Overall height | mm | 4080 | |
13 | Overall height | mm | 2095 | |
14 | Fork length | mm | 1070 | |
15 | Fork width | mm | 122 | |
16 | Fork thickness | mm | 40 | |
Performance | 17 | Max. driving speed | km/h | 17/19 |
18 | Max. lifting speed | mm/s | 400 | |
19 | Max. traction | kn | 15/10 | |
20 | Gradeability | % | 15/20 | |
21 | Tilting angles | ° | 6/12 | |
22 | Service weight | kg | 3600 | |
Engine | 23 | Engine model |
| 490BPG engine |
24 | Power | kw | 39 | |
25 | Rated speed | rpm | 2650 | |
26 | Displacement | L | 2.67 | |
27 | No. of cylinder |
| 4 | |
Wheel | 28 | Front overhang | mm | 451 |
29 | Wheel base | mm | 1640 | |
30 | Front tread | mm | 970 | |
31 | Rear tread | mm | 970 | |
32 | Front tire |
| 7.00-12 | |
33 | Rear tire |
| 6.00-9 | |
Product Features:
1, Standard lifting height: 3000mm with wide view mast
2, Load center: 500mm
3, Equipped with Xinchai/Quanchai engine or imported Isuzu/Yanmar/Mitsubishi/engine
4, Load sensing steering system improves working efficiency;
5, Applied the advanced outline designing method, the truck is designed with stream, sporty outline, and thanks to the new design, all the exposed parts are metal made, which is firm and reliable.
6, Easy access to engine and transmission due to applied bolt type fastened front plate, greatly improving the convenience of daily maintenance and repair.
Packaging & Delivery
Packaging Details: Nude package, 2 sets in 20'' container and 5 sets in 40'' container.
Port: QINGDAO / LIANYUNGANG
Supply Ability
500 Set/Sets per Month
