JZ-916
Always
1 Year
Testing Machine
CE, ISO
by Internet
New
Nonstandard
15 Kw
0-4000 Rpm
3-Phase 4-Wire 380V 50/60Hz
Coding System
< 5 Um
38-42°c
0-2700 Bar
5 Bar
40L
20L
1132 Kg
1900*1160*1750 mm
Gear Flow Sensor
Jing Zheng Hong Ye
Wooden High Density Board
2440*1350*1980mm
Wuxi City, Jiangsu, China
9031200090
Product Description
Product Introduction
JZ-916 is a versatile and high-capacity test bench that can handle a wide range of fuel system components from the Euro-3 to Euro-6 emission standards. Its automated controls and extensive testing capabilities make it a useful tool for repair and maintenance of modern diesel fuel systems. It can test thousands of injectors and high-pressure pumps, and the experimental data are complete. It can be equipped with optional functions such as:
1. Testing unit pumps and unit injectors
2. Testing medium pressure injectors
3. Testing actuated pumps
Functions Description
Standard functions:
Product Details
Technical Parameters
Testing Scope
Related Products
Our Company
Exhibition
Why Choose Us
1. Our company has our own maintenance center with an area of 1200 square meters. It has been servicing the diesel fuel engine system for 20 years. Rich maintenance experience, let our products pay more attention to solving the difficult problems in maintenance.
2. Independent design and development team,and produce experience.
3. Almost all important parts of the equipment are come from top suppliers in the industry, such as DRV, common rail tube, CP3 pump, from original of B-osch.
4. Strict QC, good pre-sale and after-sale service, Providing remote assistance services free.
5. Customized according to customer requirements, such as appearance, color, etc.
Contact Us
Keith | Sales
Wuxi JiaMiao Auto Technology Co., Ltd
Wuxi Chengshunda Automobile Technology Co., Ltd.
Address: No. 117 Xinzhuang Road, Zhutang Town Wuxi City, Jiangsu Province, China
Website: jm888888.en.made-in-china.com
JZ-916 is a versatile and high-capacity test bench that can handle a wide range of fuel system components from the Euro-3 to Euro-6 emission standards. Its automated controls and extensive testing capabilities make it a useful tool for repair and maintenance of modern diesel fuel systems. It can test thousands of injectors and high-pressure pumps, and the experimental data are complete. It can be equipped with optional functions such as:
1. Testing unit pumps and unit injectors
2. Testing medium pressure injectors
3. Testing actuated pumps
Functions Description
Standard functions:
1. Test the piezo injector
2. Test solenoid valve injector
3. Test single pump and pump nozzle
4. Test high pressure common rail pump
Optional Functions:
Hardware Configuration:
Optional Functions:
1. Test the 4-pin injector
2. Test X15, Q60 single pump
3. Test C-ummins HPI actuators
4. Test B-osch 4-plunger common rail pump
5. Test D-ENSO 4-plunger common rail pumpHardware Configuration:
1. Gear flow sensor 3 pcs
2. Dual ORV configuration
3. Electronic measuring system
4. Common rail pipe with filter function
5. Injection drive and system voltage monitor
Assist Functions:
1. Flow sensor linear calibration
5. Injection drive and system voltage monitor
Assist Functions:
1. Flow sensor linear calibration
2. Oil nozzle opening pressure flow
3. Fuel tank oil level lower limit alarm
4. High pressure filter clogging reminder
Product Details
Technical Parameters
| Technical Parameters | |
| Output | 15 KW |
| Power | 3-Phase 4-Wire 380V 50/60HZ |
| Speed | 0~3500 RPM |
| Rail Pressure | 0~2700 Bar |
| Rail Pressure Precision | ±5 Bar |
| Oil Tank Volume | Diesel: 40L Engine: 20L |
| Fuel Temperature | 40±2ºC |
| Filter Precision | < 5μm |
| Gross Weight | 1230 kg |
| Packing Size | 2000*1350*1850 mm |
| Speed Control Model | Converter Control |
| Temperature Control System | Air Conditioning Heat Dissipation |
| Nozzle Sensor | Imported Original Elliptical Type Flow Sensor |
| Fuel Pump Sensor | Imported Original Vane Type Flow Sensor |
| Language | English, Spanish, Russian,etc |
| Material | Metal Plate |
| Painting | Powder Painting, Durable |
| Color | Green (can be customized) |
| Logo | Jing Zheng Hong Ye (can be customized) |
| MOQ | 1 Piece |
| Payment | 40% Deposit, the rest paid before shipment |
| Warranty Time | 12 months |
| Delivery time | 30 days after prepaid |
| Shipping Packing | Wooden Case |
Testing Scope

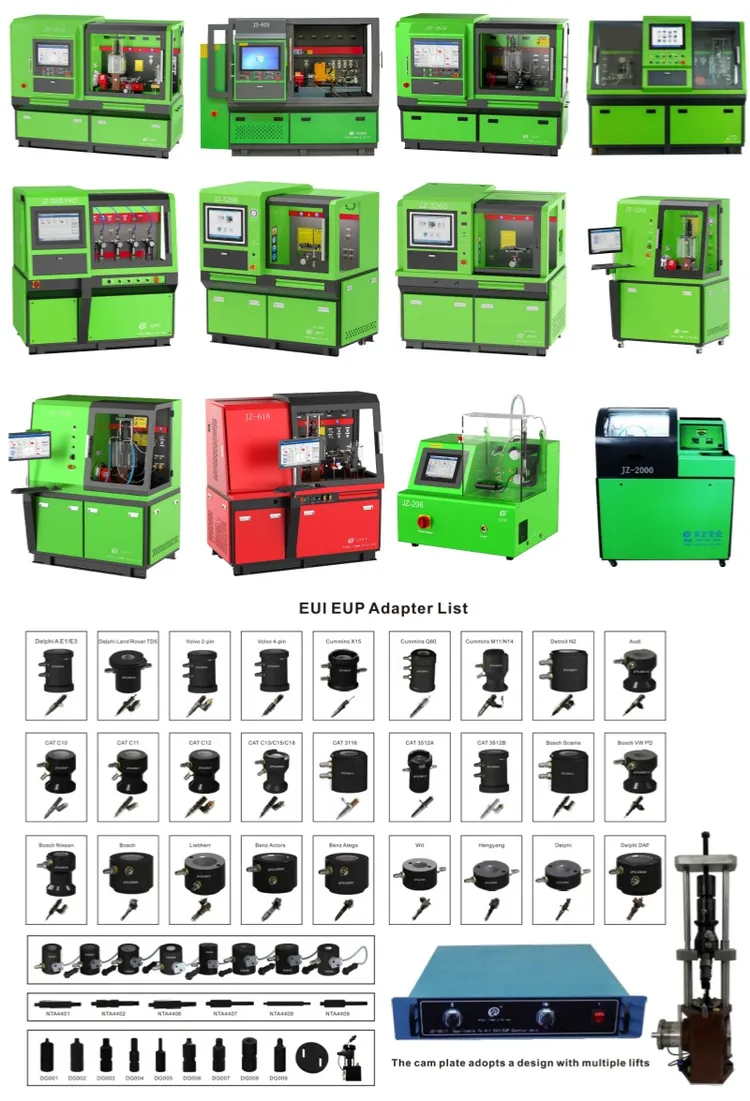

Related Products
Our Company
Exhibition
Why Choose Us
1. Our company has our own maintenance center with an area of 1200 square meters. It has been servicing the diesel fuel engine system for 20 years. Rich maintenance experience, let our products pay more attention to solving the difficult problems in maintenance.
2. Independent design and development team,and produce experience.
3. Almost all important parts of the equipment are come from top suppliers in the industry, such as DRV, common rail tube, CP3 pump, from original of B-osch.
4. Strict QC, good pre-sale and after-sale service, Providing remote assistance services free.
5. Customized according to customer requirements, such as appearance, color, etc.
Contact Us
Keith | Sales
Wuxi JiaMiao Auto Technology Co., Ltd
Wuxi Chengshunda Automobile Technology Co., Ltd.
Address: No. 117 Xinzhuang Road, Zhutang Town Wuxi City, Jiangsu Province, China
Website: jm888888.en.made-in-china.com
