BX42S, BX62S, BX62R, BX92R, WC-8
Wood Chipper
Tractor Pto
ISO9001
Wood Chipper
Pto
35-110HP
Hardened Tool Steel
4-10''
25-36''
3-Point Hitch
25*25''
540-1000rpm
no
Iron Crate
1600*1020*1400mm
China
67000
Product Description

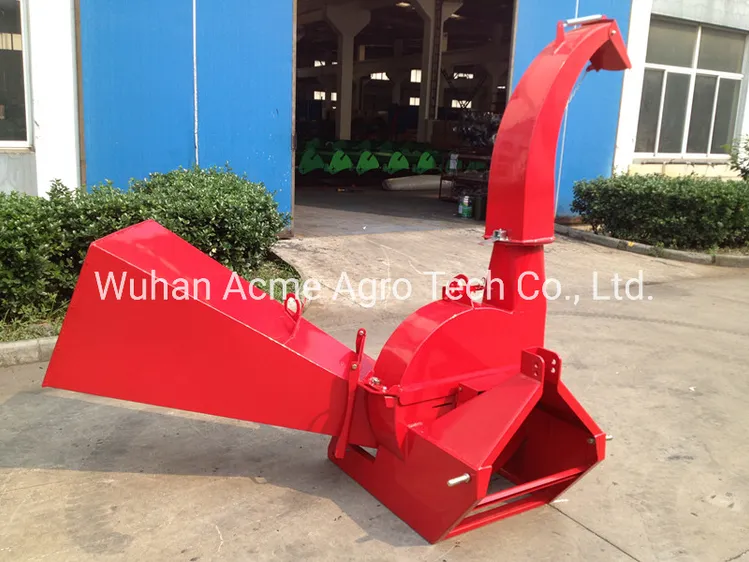

3 point hitch tractor mounted agriculture wood chipper
The wood chippers are 3 point hitch PTO chippers by tractor mounted, now we have model of BX42S,BX62S,BX62R,BX92R,and WC8, the capacity of the chips diameter from 4 inch to 9 inch. The speed can be 540RPM to 1000RPM.
BXs Series Wood Chipper-3PH,Self-Feed, 4-6" Diameter Capacity
BXs Series wood chipper has a direct drive rotor with the hopper mounted at an angle to
the rotor this controls the flow of branches, limbs and brush for continuous chipping at
maximum capacity. The brush is dragged into the chipper by the blade pulling at it as it
cuts , so you can be ready with the next piece, keeping your hands well away from the
business end in the process. The feed chute folds up easily and securely, making it easy
to travel with on narrow paths and to store in the shed.
If you have a compact tractor in the 18-50/30-100 Hp range this wood chipper is perfect ,
Just needed small farms and lifestyle blocks.
| BXs Series Parameters | BX42s | BX62s |
| Drive System | Direct drive, PTO | Direct drive, PTO |
| HP requirements for max. cap. | 35-40 | 60-70 |
| HP Range | 18-50 | 30-100 |
| Chipper Capacity | 4" Dia. | 6" Dia. |
| Chipper Housing Opening | 4" x 10" | 6.5" x 12" |
| Rotor Size | 25" | 30" |
| Number of Rotor Knives | 4 | 4 |
| Knife Type | Hardened tool steel | Hardened tool steel |
| Feeding System Feed | Self Feed | Self Feed |
| Mounting System | 3 Point Hitch | 3 Point Hitch |
| Dimensions (Hopper Folded) | 40"L x 42"W x 60"H | 50"L x 52"W x 74"H |
| Hopper Opening | 20" x 20" | 25" x 25" |
| Discharge Hood Rotation | 360° | 360° |
| Discharge Hood Height | 60" | 74" |
| Rated RPM | 540-1000 | 540-1000 |
| Weight | 200kgs | 350kgs |
BXr Series Hydraulic Wood Chipper-3PH,Hydraulic Feed, 6-9" Diameter Capacity
BXr Series hydraulic wood chipper has a direct drive rotor with the hopper mounted at an
angle to the rotor, another two pipeline connect to the tractor hydraulic station, the
hydraulic flow feeding two hydraulic motors to drive the two teeth rollers input and output
stop action to continuous chip the branches, limbs, so you just put the branches inside,
other job works by chipper self. The feeding speed also can adjust by yourselves
whatever you want. The feed chute folds up easily and securely, making it easy to travel
with on narrow paths and to store in the shed.
If you have a compact tractor in the 30-100/65-150 Hp range this wood chipper is perfect ,
Just needed small farms and lifestyle blocks.
| BXr Series Parameters | BX62r | BX92r |
| Drive System | Direct drive, PTO | Direct drive, PTO |
| HP requirements for max. cap. | 60-70 | 85-110 |
| HP Range | 30-100 | 65-150 |
| Chipper Capacity | 6" Dia. | 10" dia. |
| Chipper Housing Opening | 6.5" x 12" | 10" X 15" |
| Rotor Size | 30" | 36" |
| Number of Rotor Knives | 4 | 4 |
| Knife Type | Hardened tool steel | Hardened tool steel |
| Feeding System Feed | Hydraulic Feed | Hydraulic Feed |
| Mounting System | 3 Point Hitch | 3 Point Hitch |
| Dimensions (Hopper Folded) | 50"L x 52"W x 74"H | 66"L x 68"W x 90"H |
| Hopper Opening | 25" x 25" | 25"x 25" |
| Discharge Hood Rotation | 360° | 360° |
| Discharge Hood Height | 74" | 90" |
| Rated RPM | 540-1000 | 540-1000 |
| Net weight | 448kgs | 625kgs |
WC8 Wood Chipper-3PH,Hydraulic Feed, 8" Diameter Capacity
WC-8 wood chipper easily tear 8" limb, mulch a pile of leafs, and shred brush. This chipper work on any tractor from 60HP to 70HP with a 3 point hitch PTO. The wood chipper features a fully adjustable debris deflector on the exhaust chute that allows you to easily raise or lower the angle of the chip stream. Also have 360 degree rotary implements on exhaust pipe, so the exhaust pipe can be easy rotary 360 degree. This unit operates of a 540 RPM PTO shaft, which is included with the chipper, 4 action blades on the rotor to make the chips more better.
| Parameters | WC-8 |
| Drive System | Direct drive, PTO |
| HP requirements for max. cap. | 60-70 |
| HP Range | 20-100 |
| Number of Rotor Knives | 4 |
| Knife Type | Hardened tool steel |
| Rotor Size | 24" |
| Feeding System Feed | Self Feed |
| Mounting System | 3 Point Hitch |
| Blade Turning Radius | 302mm |
| Max Diameter for Wood | 200mm |
| Chipping Efficiency | 8-9m3/h |
| PTO speed | 540r/min |
| PTO spline | 6x6x520 |
| Discharge Hood Rotation | 360° |
| Power Required | 25-45hp |
| Net Weight | 380kg |
| Gross Weight | 390kg |
| Dimensions(LXWXH) | 1600x1020x1400 |
