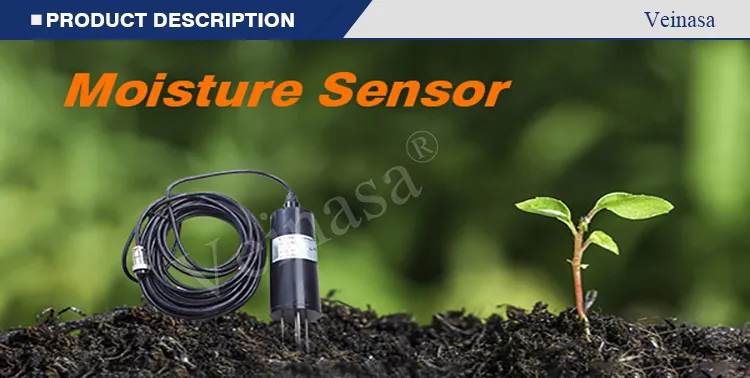

Veinasa-TS High Precision and High Sensitivity Smart Digital Humidity Sensor 4 probe for Soil
Veinasa-TS Soil humidity sensor (transducer) is a soil moisture measuring instrument of high precision and high sensitivity. The sensor adopts the principle of electromagnetic pulse to measure the apparent dielectric constant of the soil, resulting in soil moisture content. The sensor has the characteristics of fast, accurate, stable and reliable, and can not be affected by chemical fertilizers and metal ions in the soil.
It can be widely used in meteorological, marine, environmental, airport, port, laboratory, industrial and agricultural areas of the field of temperature measurement.
| Item | Technical Parameters |
| Measurement range | 0~100% |
| Accuracy | ±3% |
| Resolution | 0.10% |
| The power supply mode | DC5V, DC12V, DC24V |
| Signal output mode | 4-20mA, 0~5V, RS485, RS232 |
| Length | Standard:10 meters, Other |
| Load resistance | Voltage type: RL≥1KΩ |
| Current mode: RL≤ 250Ω | |
| Working temperature | -50ºC~80ºC |
| Humidity | 0~100%RH |
| Product weight | Probe 220 g |
| With acquisition instrument weight | 570 g |
| Power consumption | 310 mW |
If use our weather station,Can the sensor directly to the line and sensors connected to the corresponding interface of weather stations on line
If buy separate transducer, transmitter supporting lines sequence respectively to:
| Line Color | Output signal | ||
| 0~5V | 4~20mA | RS485 | |
| Red | Power + | Power + | Power + |
| Black (green) | Power ground - | Power ground - | Power ground - |
| Yellow | Voltage signal | Current signal | 485+ |
| Blue | 485- | ||
A: Yes, we are professional factory/manufacturer of weather station and relative weather sensors. We also have hot sale and widely used Veinasa-NPK
Q: Can it add/integrate other parameters?
A: Yes it can add/integrate other parameters like soil temperature, conductivity, we have this existing model takeme-10ec which also has a display
screen.
A: Common power supply is DC5/DC12V/DC24V,and signal output is 4-20mA/0~5V/RS485/RS232/RS485. But we can customize for you as demands.
Q: How can I collect data?
A: If you have your own data logger, you only need to buy our sensor and meanwhile we send you communication protocol.
If you do not have, we can add our data logger for you, also provided with English software, which can help you read, inquire and download data.
Q: What's the lifetime of this Soil Sensor?
A: At least 5 years long. Every sensor has its own calibration certificate or testing report.
Q:What's the delivery time?
A: Usually, we dispatch goods in 3-5 working days after receiving your payment. But it depends on your quantity.
Q: May I know your warranty?
A: Yes, usually it's 1 year. We can send you detailed warranty document if needed.
