HTPM180
Piezoresistive Pressure Sensor
SemiConductor Type
pressure and temperature transmitter
Analog Type
Integration
Stainless Steel
G
Three-Wire
Liquid Gas Steam
IP65
ISO9001
Customized
Pressure Sensor
-100kPa...0~50kPa...40MP
Gauge, Absolute, Sealed Gauge
0.5%F.S.
1.5 times the full scale
24VDC
4~20mADC 1~5VDC
-40~100ºC
-40~85ºC
304, 316L
IP65
HangJia
Carton
China
90262010
Product Description
Product Overview:
HPTM180 temperature and pressure transmitter is an industry leading and unique design with a highly stable pressure sensitive element for independent measurement and a high accuracy temperature sensitive element for accurate measurement of medium pressure and temperature at the same time. The compact size of the transmitter allows for a wide range of pressure and electrical interfaces to be selected, while the unique
breathable design for small pressure measurements allows for more stable pressure measurements. The original design of the front temperature sensing element is more advanced than traditional temperature measurement methods and introduces a smaller temperature difference, allowing for a more accurate measurement of the medium temperature.
The product meets the requirements for accurate measurement of multiple parameters at one measurement point and is widely used for simultaneous measurement of pressure and temperature of fluids in industrial process control.
Features:
Parallel measurement of temperature and pressure
Up to class 0.2 pressure channel measurement
Temperature sensor front measurement for smaller errors
Breathable design for more stable pressure measurement
Multiple electrical interfaces supported
Up to class 0.2 pressure channel measurement
Temperature sensor front measurement for smaller errors
Breathable design for more stable pressure measurement
Multiple electrical interfaces supported
Parameters:
| Measuring Medium | Various liquids, gases and various compatible with contact materials |
| Pressure Range | -100kPa...0~50kPa...40MPa[Gauge pressure]; 0~50kPa...10MPa[Absolute pressure] |
| Temperature Range | -40~100ºC |
| Output Signal | Two way 4~20mADC[two-wire]; Two ways 0-5VDC[three-wire]; Two way 0-10VDC[three-wire]; 4~20mA[two-wires]+PT100/PT1000[three-wire]; Modbus-RTU/RS485[four-wire] |
| Pressure Type | Gauge, Absolute or Sealed Gauge |
| Accuracy | ±0.5%FS (pressure sensor,normal), ±0.2%FS (pressure sensor,customized) ±0.4ºC (temperature sensor) |
| Long-term Stability | ±0.2%FS/year |
| Temperature Coefficient of Zero | ±1.5%FS(Reference 30ºC) |
| Temperature Coefficient of Full Scale | ±1.5%FS(Reference 30ºC) |
| Medium Temperature | -40~100ºC |
| Ambient Temperature | -40~85ºC |
| Storage Temperature | -40~85ºC |
| Supply Voltage | 24VDC |
Protection grade | IP65, Hirschmann electrical connection IP66, M12 x 1 connector (housing without breathable design) IP67, cable outlet (housing not designed to breathe) |
Electrical Protection | Short circuit protection Reverse polarity protection Electromagnetic compatibility |
Mechanical Stability | Vibration 20g(20~5000Hz) Shock resistance 50g(11ms) |
Insulation resistance | >20MΩ 500VDC |
Dielectric strength | <2mA 500VAC 1min |
Structure Drawing:
Normal Hirschmann Small size Hirschmann
Cable outlet M12×1

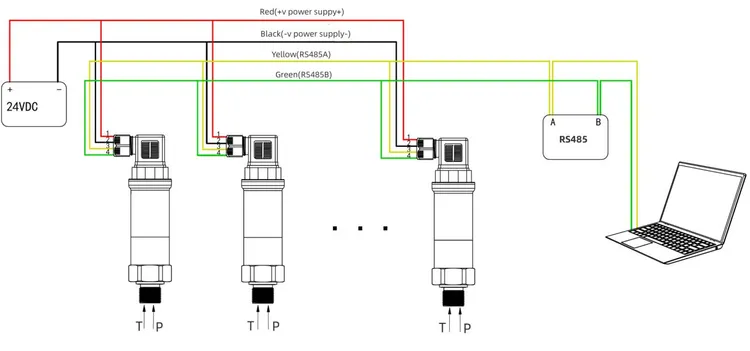

Electrical Connection:
Ordering Guide:
