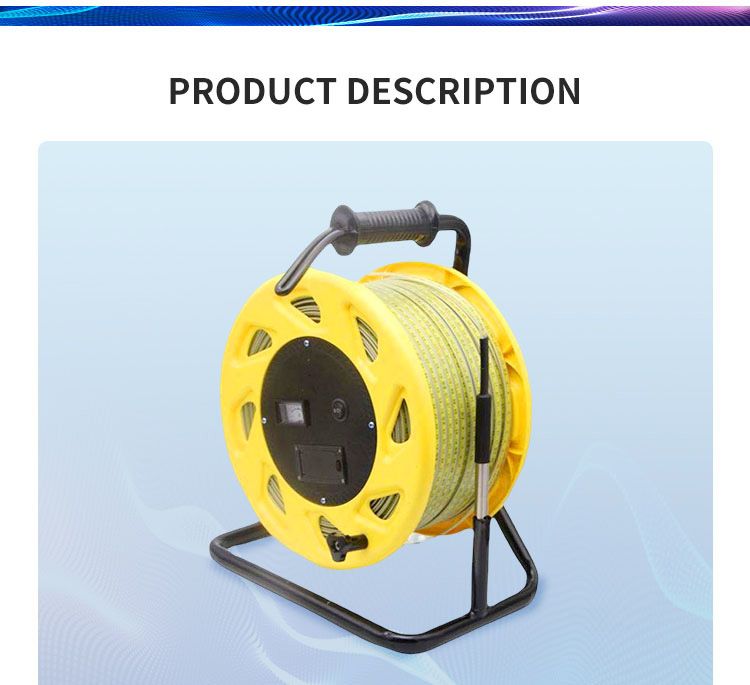

Atech Portable 100m Water Level Meter with Probe
1.Sensor probe diameter only 14mm, It can be used for measurement of narrow pipe space.
2.The anti-corrosion electrode of LM301 can effectively prevent the electrode from oxidizing and rusting, and maintain the
long-term sensitivity.
3.30-500M measuring range is optional.
4.Easy to use. It with sound and light alram to remind you recording the correct level value.
Application:
♦water conservancy project,
♦hydrology, geography, environmental protection
♦other areas of industry and agriculture fields
♦other liquid level measurement
If you have any questions, please contact us
Grade | Industrial |
Customized support | OEM, ODM |
Model Number | LM301 |
Resoulution | 0.5mm |
Respones Time | ≤1 ms |
Standard lengths | 30,50,100,150,300,400,500 |
Minimum indication | 1mm |
Working temp. | -10~50ºC (OEM) |
Weight | 3.5KG,4.5KG,6.5KG,10KG |
Probe Diameter | 14mm |
Application | Water depth for wells, boreholes, risers and tanks |
Warranty of ultrasonic sensor | 12 Months |
Measurement error | ≤±0.5mm |
battery power | 9V lithium battery |
Adaptation range of water quality | 10μω~1000μω |
The steel ruler water level gauge is a new patent designed and developedby using a new integrated circuit board.The product, as well as anti-polarization excitation circuit and corrosion resistant electrode can effectively prevent electricity extreme oxidation rust, maintain long-term use sensitivity unchanged.Steel ruler water level gauge is widely used in water conservancy engineering,hydrogeography, environmental protection, industry andagriculture and other fields. For water level measurement, the instrument is divided into two parts:sensor detection probe, main engine and coil wheel.When using the probe,put the probe slowly down, make sensor detection probe contacts waterafter contact the water, the induced potential isgenerated, and after the circuit treatment, the indication of sound and electricity are emitted, and then read from the ruler of the water andground height difference, and then converted into.
