QYB150
Piezoresistive Pressure Sensor
Ceramic Pressure Transmitter
Millivolt
Ceramics
Ceramics
No Thread
Four-Wire
Liquid Gas Steam
IP65
ISO9001, CE, Cnex, SGS
Non-Customized
2bar,5bar,10bar,20bar,25bar...400bar
150% Fs
4 ~ 20mA
2.2-3.5mv / V
no
Carton
0.1kg
China
9026209090
Product Description
Product description:

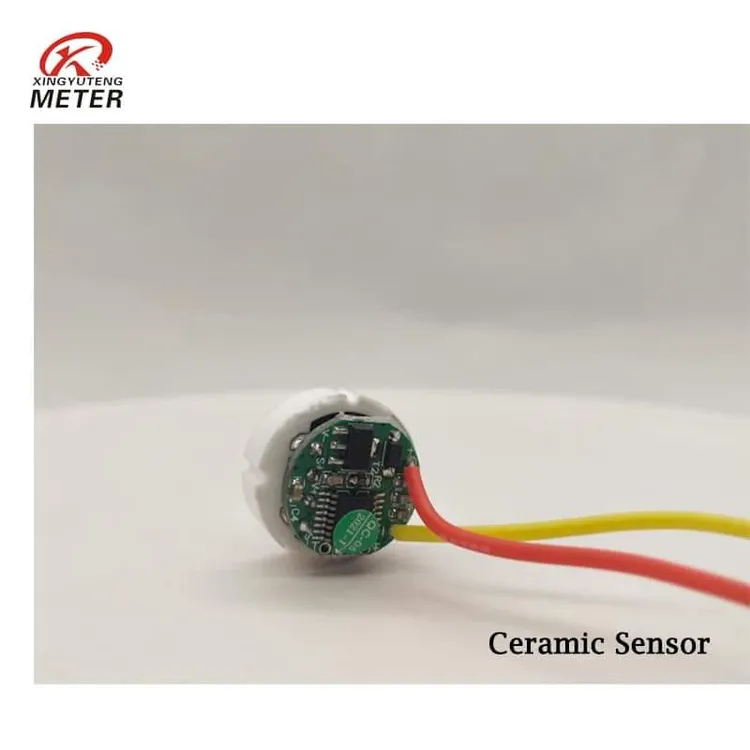

The sensors are piezoresistive pressure sensors based on ceramic. The measuring bridge is printed directly on one side of the ceramic diaphragm by means of thick film technology. The rear part of the diaphragm can be exposed directly to the medium to be measured. Because of the excellent chemical resistance no additional protection is normally required.
Thanks to the reinforced outer area (monolithic structure)the sensor can be mounted directly in a case by using an O-ring or else it can be mounted to a metal fitting. The sensors are designed in such a way so that temperature changes and overloading do not cause any loss in reliability. The use of ceramic ensures high linearity across the entire range of measurement and reduces effects of hysteresis to a minimum.
Product parameters:
| Measuring Range | 0~0.2...10MPa | Accuracy | 0.5%F.S. |
| Stability | ≤0.2%/year | Overload Capacity | 150%F.S. |
| Power Supply | 24VDC | Output Signal | 4-20mA/0.5-4.5V/0-10V |
| Protection grade | IP65 | Relative Humidity | 0~90% |
| Operating Temperature | -30~80 degree C | Medium Temperature | -40~85degree C |
Dimension:
Wiring:
Applications:
Automotive, industrial automation, air conditioning, pneumatic equipment,
compressors, water pumps, petroleum, chemical, etc
