FFRC-L20
Frequency State Modulation
Physical Properties Fiber Optic Sensor
Digital Type
Integration
Functional
Stainless Steel
IP65
RoHS
Customized
Fiber Optic Sensors
1.0*0.265*16
Diffuse Reflective
1.0mm
1m Cable, Free Cutting
R25
90~120mm
CE, ISO9000
Yes
-25 to 70 Degree
7days After Payment Done
FF-403
F&C
White Box
60g
China
9001100090
Product Description
OEM F&C Ffrc-L20 diffuse reflection Coaxial Integrated Bracket Fiber Optic Sensor
(1) Proximity sensor 1000+ models
(2) Fiber amplifier and Optic Sensor 3000+ models
(3) Photoelectric Sensor 500+ models
(4) Magnetic Switch 100+ models
(5) Label sensors 40+ models

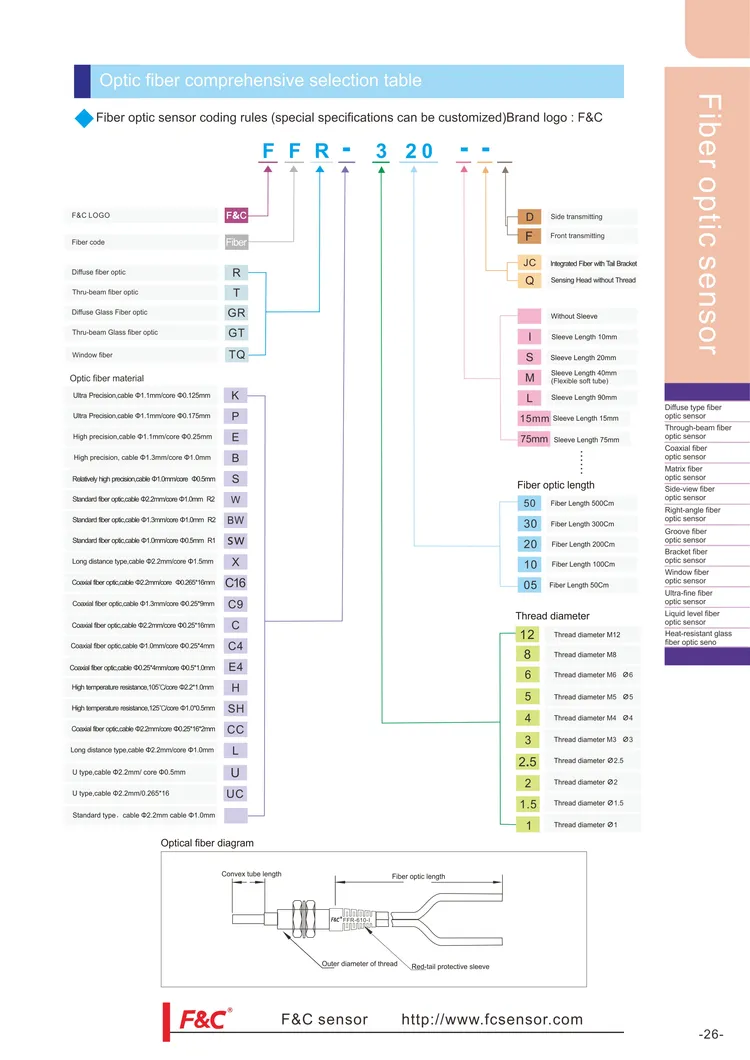

| Type | Model | Fiber optic cable | Convex tube | Wire length | Detection distance | MDO |
| Bracket Fiber Optic Sensor | FFR-L20 | Φ1.0×2 | / | 2m | 90~120mm | Φ0.1 |
| FFR-L20-I | Φ1.0×2 | Φ2.5×10mm | 2m | 90~120mm | Φ0.1 | |
| FFR-L20-S | Φ1.0×2 | Φ2.5×20mm | 2m | 90~120mm | Φ0.1 | |
| FFR-L20-M | Φ1.0×2 | Φ2.5×40mm | 2m | 90~120mm | Φ0.1 | |
| FFR-L20-L | Φ1.0×2 | Φ2.5×90mm | 2m | 90~120mm | Φ0.1 | |
| FFR-38V | Φ2.2×1.0 | / | 2m | 15~20mm | Φ0.5 | |
| FFR-38M | Φ2.2×1.0 | / | 2m | 15~20mm | Φ0.5 | |
| FFR-38L | Φ2.2×1.0 | / | 2m | 15~20mm | Φ0.5 | |
| FFRC-L20 | Φ1.0×0.265×16 | / | 2m | 90~120mm | Φ0.1 | |
| FFRC-L20-I | Φ1.0×0.265×16 | Φ2.5×10mm | 2m | 90~120mm | Φ0.1 | |
| FFRC-L20-S | Φ1.0×0.265×16 | Φ2.5×20mm | 2m | 90~120mm | Φ0.1 | |
| FFRC-L20-M | Φ1.0×0.265×16 | Φ2.5×40mm | 2m | 90~120mm | Φ0.1 | |
| FFRC-L20-L | Φ1.0×0.265×16 | Φ2.5×90mm | 2m | 90~120mm | Φ0.1 |
(1) 23+ years manufacture and 10+ years OEM service sensor experience.
(2) 4000+ models Sensors
(3) Long service time, 8+ years
(4) 18 months years warranty time
(5) Fast delivery time. Most delivery within 1 days (Stocks)
(6) IP67 protection grade
(7) CE, RoHS certification
