BGS-S30N
Diffuse Reflection Type Photoelectric Sensor
Analog Type
Integration
Plastic
Not Affected by Color
IP65
RoHS+CE
Customized
300mm
630nm Red Modulated Light
100mA
300Hz
0.5ms
NPN/PNP
-10~50°c
35~85%Rh
IP65
ABS+PC+PVC
50g
F&C
Carton
3.2*2.1*1, 2mm
Hunan China
8536500090
Product Description

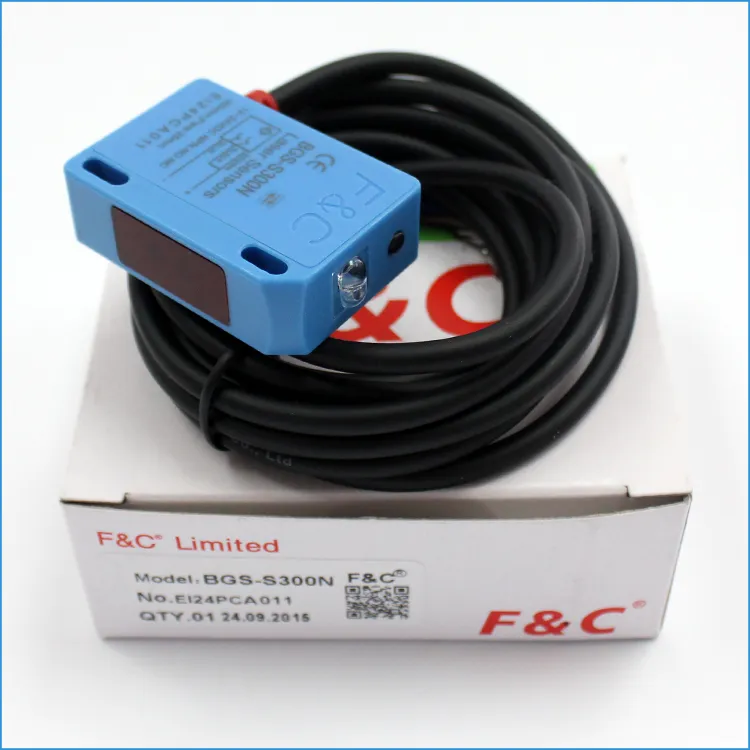

F&C Background suppression photoelectric sensor BGS-S30 undisturbed by background color with 300mm sensing distance
| Model | BGS-S30N R2M |
| Standard Detection Object Size | Diameter 1.5mm; |
| Output Method | NPN NO+ NC |
| Detection Type | Diffuse |
| Detection Distance | 30-300mm; |
| Light Source | 630nm Red modulated light |
| Operating Voltage | 12-24 VDC |
| Response Time | 0.5ms Max. |
| Current Consumption | 300mA Max. |
| Load current | 100mA Max at 24 VDC |
| Insulation Resistance | 20M Ohm Min. at 500 VDC |
| Dielectric strength | 60 seconds at 1000VAC 60HZ; |
| Protection Degree | IP66 |
| Operating Temperature | -10 to -50 (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | Glass fiber reinforced resin |
| Ambient Light | 500Lux incandescent light, 20000lux sunshine |
| Wire Method | Diam 4mm*2M/-3wires |
Q:Are you sensors manufacturer?
A:Yes, over 30 years' experience in sensors field.We can make more profit for you.
our product has CE certificate.
Q:Can I get samples for test?
A:Yes, we support free test samples and shipping cost at your side.
Q: What's your leadtime?
A:Generally speaking,we have stocks for 110 kind of different models and can ship at any time. If we don't have stock,our leadtime is 5-7 working days. We will pull in the production schedule if your demand is urgently.
Q: What's your payment term?
A:You can pay us by T/T, Paypal, Westunion.
Q:How do you arrange the shipment ?
A: We normally ship by Fedex, UPS and TNT, we are VIP of this courier and get 60% discount. We also can accept other ship method if there is an need.
