TCF-74
Tension and Compression
Resistance Strain
5 Wires
Analog Type
High Accuracy
Stain Gauge
Stainless Steel
IP67
RoHS
Customized
39*51mm(H*D)
1, 2, 5, 10, 20, 50, 100kn
0.2%
Tension and Compression
BRANS
Carton Packages
compression and tension force sensor
China
8423900000
Product Description

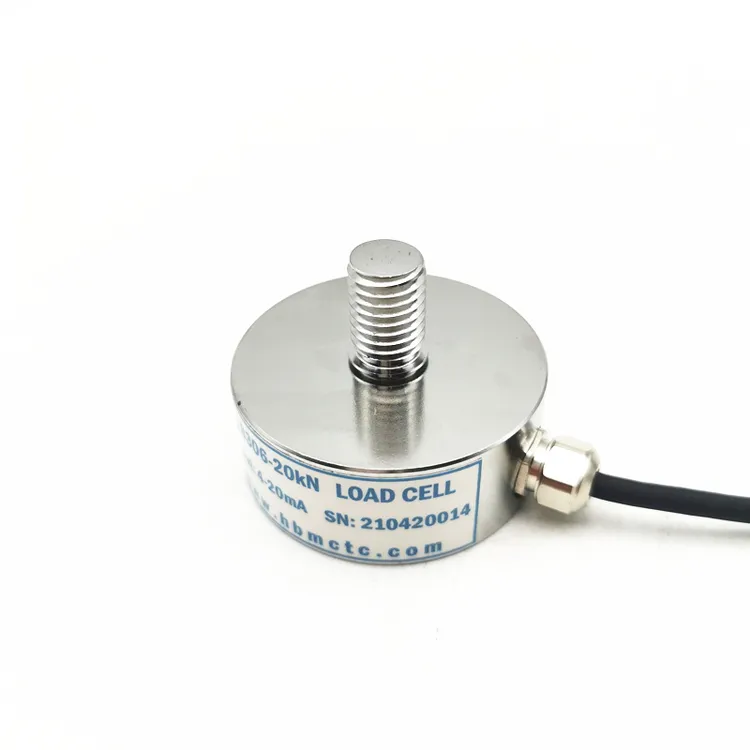

1. Name: Stainless Steel Tension and Compression Load Cell (TCF-74)
2. Features:
3. Specification
4. Dimension
FAQ:
1. What is the MOQ?
If we don't have it in stock, the MOQ is 10 pcs. If we have it in stock, we can ship you even 1pc as sample.
2. What is lead time?
If we have it in stock, we can ship it to you within about 5-7 working days. If we don't have it in stock, the lead time will be 20~45 days.
3. What is the payment terms?
T/T,/ western Union, PayPal are acceptable. 30% deposit when you place your order, and 70% balance payment before shipment.
4. What is the express delivery?
DHL,Fedex, TNT ,EMS, UPS etc.We will choose the safe and Cheapest way for you to reduce your cost.
Economic shipping way: by sea, by air transport
If you place mass order with us, the shipping way of by sea or by air will be ideal choice .
6. Is there any after-sale service?
After you receive our product, if you have any questions or need any assistance. We will 24 hours stand to serve you. Just contact us at any time.
2. Features:
Miniature load cell, low profile with small deflection
Made of stainless steel
Tension and compression application
High dynamic response frequency
Mainly used for force measurement and control in small space
3. Specification
| Specifications | Technique |
| Capacity | 1,2,5,10,20,50kN (100kN could be customized) |
| Rated output | 1.5±10%mV/V |
| Zero balance | ±0.03 mV/V |
| Non‐linearity | 0.2%F.S. |
| Hysteresis | 0.1%F.S. |
| Repeatability | 0.1%F.S. |
| Creep(30min) | 0.05%F.S. |
| Temp.effect on output | 0.05%F.S./10ºC |
| Temp.effect on zero | 0.05%F.S./10ºC |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~10V |
| Maximum excitation | 15V |
| Compensated temp range | ‐10~60ºC |
| Operation temp range | ‐20~80ºC |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | φ4×4000mm |
| Weight approx. | 0.3kg |
| Material | Stainless Steel |
| IP Class | IP66 |
4. Dimension
FAQ:
1. What is the MOQ?
If we don't have it in stock, the MOQ is 10 pcs. If we have it in stock, we can ship you even 1pc as sample.
2. What is lead time?
If we have it in stock, we can ship it to you within about 5-7 working days. If we don't have it in stock, the lead time will be 20~45 days.
3. What is the payment terms?
T/T,/ western Union, PayPal are acceptable. 30% deposit when you place your order, and 70% balance payment before shipment.
4. What is the express delivery?
DHL,Fedex, TNT ,EMS, UPS etc.We will choose the safe and Cheapest way for you to reduce your cost.
Economic shipping way: by sea, by air transport
If you place mass order with us, the shipping way of by sea or by air will be ideal choice .
5. What Is the quality guarantee?
Quality guarantee: 12 months. If the product has quality problem within 12 months, please return it to us, we will repair it; if we can't repair it successfully, we will give you a new one; but the man --made damage, improper operation and force majeure will be excepted.6. Is there any after-sale service?
After you receive our product, if you have any questions or need any assistance. We will 24 hours stand to serve you. Just contact us at any time.
