| Specifications | Technique |
| Capacity | |
| Rated output | 2.0±0.005mV/V, 1.75±0.005mV/V |
| Zero balance | ±1%F.S. |
| Non-linearity | 0.02%F.S. |
| Hysteresis | 0.02%F.S. |
| Repeatability | 0.01%F.S. |
| Creep(30min) | 0.02%F.S. |
| Temp.effect on output | 0.02%F.S./10ºC |
| Temp.effect on zero | 0.02%F.S./10ºC |
| Input impedance | 760±20Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated temp range | -10~50ºC |
| Operation temp range | -20~60ºC |
| Safe overload | 120%F.S. |
| Ultimate overload | 300%F.S. |
| Cable size | Φ5.4×6000mm |
| Material(option) | Alloy steel/stainless steel |
| IP Class | IP67 |
6. Instruction:
The cannister load cell is an analog canister load cell with maximum capacities from 5 t to 5000 t. It is the ideal load cell for tank scales, hopper weighing, mixer scales and conveyor weighing. The rocker pin load cell provides the best weighing performance.
The load cell's robust design together with the patented rotation stop makes the load cell especially fit for use in vehicle scales. IP68 protection class and stainless steel design guarantee a long lifetime.
The load cell with capacity range from 5t to 5000t allows the weighing of mid size tanks, hoppers and silos with ease. The stainless steel design, hermetic sealing and IP68 protection provides the best reliable in tank weighing applications.
7. Features & Applications:
Strong stability
Used in various automated applications, IP67 protection
Mac capacity up 5000 ton
Mainly used in force measurement device
Can be used as a measurement stardand for measurement

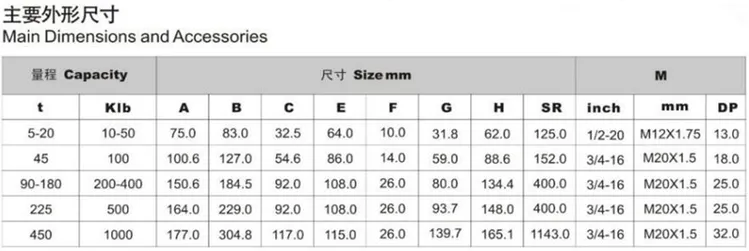

8.Dimension
Need something special or a completey customized design? Contact RANS to discuss your particular application requirements.
This load cells could replace Vishay CSP-M load cells directly with same design and performance. This is special for truck scales clients. Looking forward to your favorable reply.
