50kg 100kg 200kg 1000kg 2000kg Stainless Steel Small Size Pancake Spoke Type Tension and Compression Load Cell Sensor (BR248)

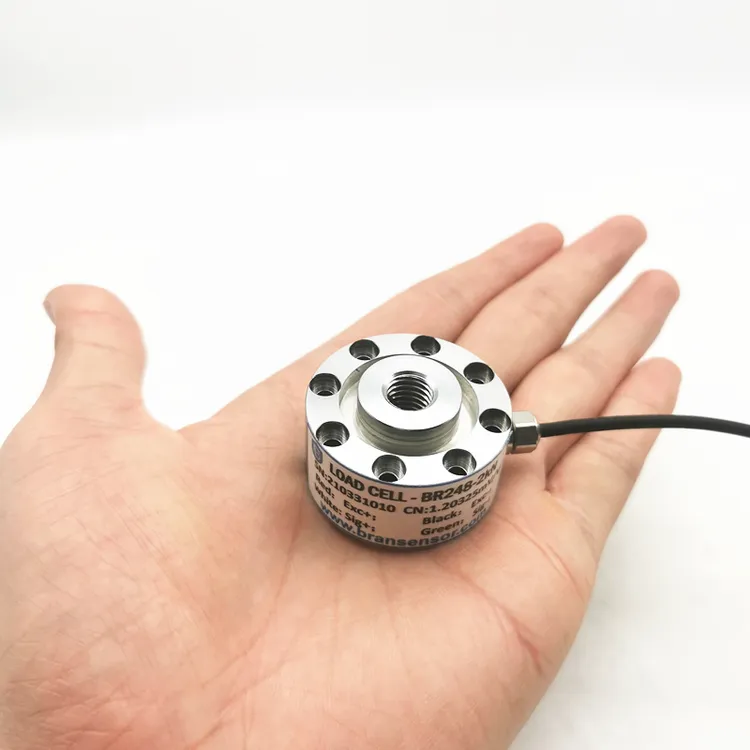

Brans's miniature load cells/force sensors are designed to fit into systems with limited space or tight clearances. The Model 248 series are the miniature load cells designed to measure both tension and compression load forces from 50 kg up to 2T or 500 N up to 20KN, with high accuracies of 0.5 % full scale. The all-welded, stainless steel construction is designed to eliminate or reduce to a minimum the effect of off-axis loads. This design can be completely welded for underwater applications. If you need special modifications or a complete custom design to meet your unique requirements, please feel free to let us know.


Datasheet

Number	Specifications	Technique
1	Capacity	50,100,200,1000,2000kg
2	Rated output	1.5±10%mV/V
3	Zero balance	± 0.03mV/V
4	Non-linearity	0.2%F.S.
5	Hysteresis	0.1%F.S.
6	Repeatability	0.1%F.S.
7	Creep(30min)	0.05%F.S.
8	Temp.effect on output	0.05%F.S./10ºC
9	Temp.effect on zero	0.05%F.S./10ºC
10	Input impedance	780±20Ω
11	Output impedance	700±10Ω
12	Insulation	≥5000MΩ/100VDC
13	Recommended excitation	10V
14	Maximum excitation	15V
15	Compensated temp range	-10~60ºC
16	Operation temp range	-20~80ºC
17	Safe overload	150%F.S.
18	Ultimate overload	200%F.S.
19	Cable size	Φ3×4000mm
21	Material	Alloy Steel or Stainless Steel
22	IP Class	IP66

Features
Miniature size as 40mm in diameter and 23mm height
Load range measurements: 50kgs to 2T; 500 N to 20KN;
Alloy steel or Stainless steel construction; All-welded option available for underwater applications
High accuracies of 0.1 % to 0.5 % full scale
