B306
Tension and Compression
Resistance Strain
5 Wires
Analog Type
High Accuracy
Stain Gauge
Stainless Steel
IP67
RoHS
Customized
39*51mm(H*D)
1, 2, 5, 10, 20, 50, 100kn
0.2%
Tension and Compression
BRANS
Carton Packages
compression and tension force sensor
China
84239000
Product Description

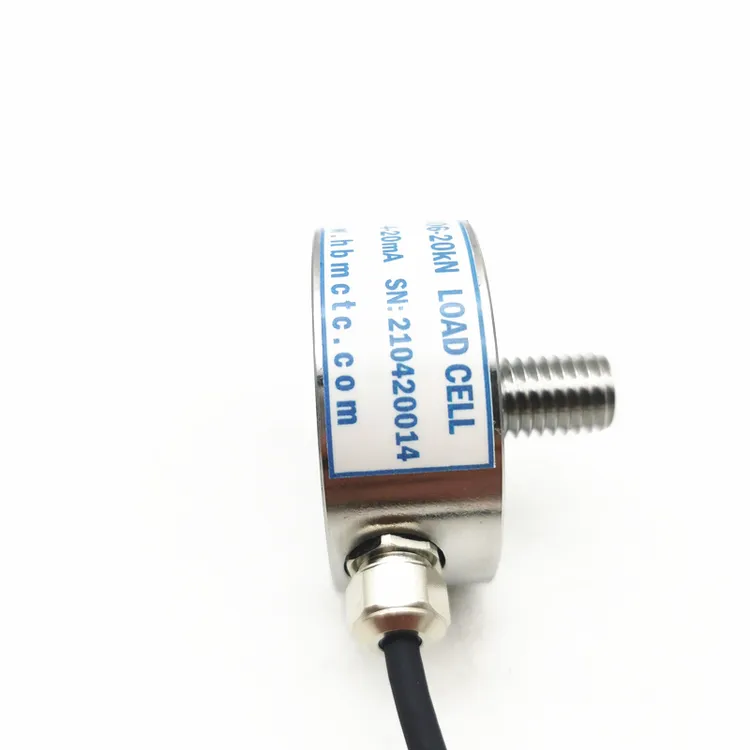

Brans's miniature load cells/force sensors are designed to fit into systems with limited space or tight clearances. The Model 306 series are the miniature load cells designed to measure both tension and compression load forces from 100kg up to 500kg or 1kN up to 100kN, with high accuracies of 0.2 % full scale. The all-welded, stainless steel construction is designed to eliminate or reduce to a minimum the effect of off-axis loads.
key Points
Datasheet
Features
Miniature sizes ranging from 13 mm to 51mm in diameter and from 20mm to 39mm height
Load range measurements: 50kgs to 500kg; 500N to 5KN
Stainless steel construction; All-welded option available for underwater applications
High accuracies of 0.1 % to 0.5 % full scale
key Points
- Miniature load cell,low profile,small deflection
- Made of stainless steel
- Tension and compression application
- Mainly used for automotive press fit, automated assembly, 3C products testing, new energy product assembly, medical testing, robotics, mold assembly and other industrial testing and control system
- High dynamic response frequency
Datasheet
| Number | Specifications | Technique |
| 1 | Capacity | 1,2,5,10,20,50,100kn |
| 2 | Rated output | 1.5±10%mV/V |
| 3 | Zero balance | ±0.05 mV/V |
| 4 | Non‐linearity | 0.2%F.S. |
| 5 | Hysteresis | 0.1%F.S. |
| 6 | Repeatability | 0.1%F.S. |
| 7 | Creep(30min) | 0.1%F.S. |
| 8 | Temp.effect on output | 0.05%F.S./10ºC |
| 9 | Temp.effect on zero | 0.05%F.S./10ºC |
| 10 | Input impedance | 800~1100Ω |
| 11 | Output impedance | 800~1100Ω |
| 12 | Insulation | ≥5000MΩ/100VDC |
| 13 | Recommended excitation | 5~10V |
| 14 | Maximum excitation | 15V |
| 15 | Compensated temp range | ‐10~60ºC |
| 16 | Operation temp range | ‐20~80ºC |
| 17 | Safe overload | 150%F.S. |
| 18 | Ultimate overload | 200%F.S. |
| 19 | Cable size | φ4×4000mm |
| 20 | Weight approx. | 0.3kg |
| 21 | Material | Stainless Steel |
| 22 | IP Class | IP66 |
Features
Miniature sizes ranging from 13 mm to 51mm in diameter and from 20mm to 39mm height
Load range measurements: 50kgs to 500kg; 500N to 5KN
Stainless steel construction; All-welded option available for underwater applications
High accuracies of 0.1 % to 0.5 % full scale
