B903E
Strain Gauge Torque Sensor
Horizontal Installation
Contactless
Analog Type
Normal Wirewound
Static
0.1G
IP65
SGS
Customized
BRANS
Standard Packing Carton
50.8*36.7mm
China
9031809090
Product Description
1. Product Name: Flange to Flange Reaction Torque Sensor (B903E)
2. Material: Alloy Steel
3. Capacity: 200,300,500,1000,2000Nm

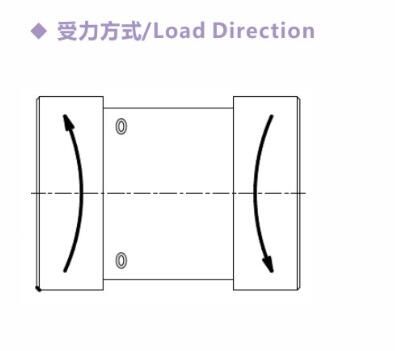

4. Design
5. Datasheet
6. Features:
Easily integrates into OEM applications
Designed for Torque auditing
Flange to flange design, easy to install
Alloy or stainless-steel construction
Strain gauge based
7. Description:
The Flange to Flange Reaction Torque Sensor can accommodate applications that include automotive braking, engine and transmission dynamometers, torque table, fastener testing, aircraft engine testing, and marine shaft torque measurements with shaft horsepower monitors. This is available in both, aluminum and stainless steel construction and offers a unique solution for torque auditing applications. This particular Reaction Torque Sensor can be used to evaluate low-torque components and controls. Flange-reaction torque sensors measure small-reaction torque levels using flange-to-flange connections in-line with the component under test.
Need something special or a completely customized design? Contact BRANS to discuss your particular application requirements.
Welcome to Brans and glad to cooperate with you together. If you have any new products need to OEM or customized, please contact with Brans in time. bransensor.en.made-in-china.com
2. Material: Alloy Steel
3. Capacity: 200,300,500,1000,2000Nm
4. Design
5. Datasheet
| Number | Specifications | Technique |
| 1 | Capacity | 200,300,500,1000,2000Nm |
| 2 | Rated output | 1.0~1.5mV/V |
| 3 | Zero balance | ±1% F.S. |
| 4 | Non-linearity | 0.2%F.S. |
| 5 | Hysteresis | 0.2%F.S. |
| 6 | Repeatability | 0.1%F.S. |
| 7 | Creep(30min) | 0.1%F.S. |
| 8 | Temp.effect on output | 0.05%F.S./10ºC |
| 9 | Temp.effect on zero | 0.05%F.S./10ºC |
| 10 | Input impedance | 350/700±10Ω |
| 11 | Output impedance | 350/700±10Ω |
| 12 | Insulation | ≥2000MΩ/100VDC |
| 13 | Recommended excitation | 12V |
| 14 | Maximum excitation | 15V |
| 15 | Compensated temp range | -10~60ºC |
| 16 | Operation temp range | -30~60ºC |
| 17 | Safe overload | 120%F.S. |
| 18 | Ultimate overload | 150%F.S. |
| 19 | Cable size | 3m |
| 20 | Material | stainless steel |
| 21 | Weight approx. | 0.8~12kg |
| 22 | IP Class | IP65 |
6. Features:
Easily integrates into OEM applications
Designed for Torque auditing
Flange to flange design, easy to install
Alloy or stainless-steel construction
Strain gauge based
7. Description:
The Flange to Flange Reaction Torque Sensor can accommodate applications that include automotive braking, engine and transmission dynamometers, torque table, fastener testing, aircraft engine testing, and marine shaft torque measurements with shaft horsepower monitors. This is available in both, aluminum and stainless steel construction and offers a unique solution for torque auditing applications. This particular Reaction Torque Sensor can be used to evaluate low-torque components and controls. Flange-reaction torque sensors measure small-reaction torque levels using flange-to-flange connections in-line with the component under test.
