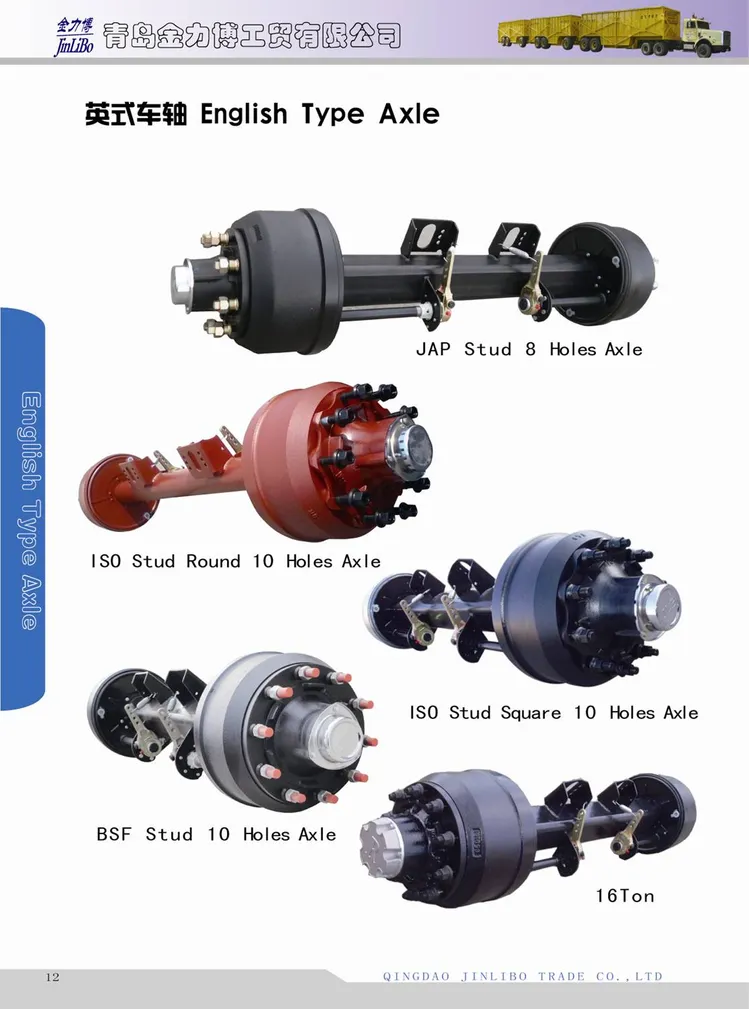

| English type axle | ||||||||||
| AXLE MODEL | BRAKE SIZE | WHEEL FIXING | NO.XSIZE OF WHEEL STUD (DIM A) | WHEEL REG.DIA (DIA B) | DIM D | MIN WHEEL SIZE | BEAM SIZE | AXLE CAPACITY | SPRING SEAT INSTALLATION | WEIGHT |
| KMY1218J | 420X180 | JAP | 8XM20X285 | 221 | 718 | 20" | square 150 | 12T | ≤450 | 350KG |
| KMYR1218J | 420x180 | JAP | 8XM20X285 | 221 | 718 | 20" | round127x18 | 12T | ≤450 | 340KG |
| KMY1218I | 420X180 | ISO | 10XM22X335 | 281 | 701 | 20" | square 150 X14 | 13T | ≤450 | 350KG |
| KMY1218B | 420X180 | BSF | 10X7/8''X335 | 281 | 701 | 20" | square 150 X14 | 13T | ≤450 | 350KG |
| KMY12018B | 420X180 | BSF | 10X7/8''X335 | 281 | 710 | 20" | square 150 X14 | 13T | ≤450 | 350KG |
| KMY1622B | 420X220 | BSF | 10X7/8''X335 | 281 | 721 | 20" | square 150 X16 | 16T | ≤450 | 420KG |
| KMY1622I | 420X220 | ISO | 10XM22X335 | 281 | 721 | 20" | square 150 X16 | 16T | ≤450 | 420KG |
| KMY16022I | 420X220 | ISO | 10XM22X335 | 281 | 721 | 20" | Round127x25 | 16T | ≤450 | 430KG |
| KMY1822I | 420X220 | ISO | 10XM24X335 | 281 | 721 | 20" | square 150 X18 | 18T | ≤450 | 450KG |
| KMY2022I | 420X220 | ISO | 10XM24X335 | 281 | 701 | 20" | square 150 X20 | 20T | ≤450 | 475KG |
1. Capacity: 13ton
2. Brake size: 420*180
3. 8 hole or 10 hole
4. Bearing: 33213 218248
5. Bean size: Squre 150
Q1:Are you a factory?
A:Yes,we are a factory,but not just a factory,as we have sales team,our own offices,and they
all can help the buyers and cooperative partners to decide which products are the best choices
for them,and all your requirements and inquires will be replyed in time.
Q2:What's your Delivery Time?
A:In general, the delivery time is 15-20 days.We will make the delivery as soon as possible with
the guaranted quality.
Q3:What is the convenient way to pay?
A:L/C , T/T,Unionpay,DP are accepted,and if you have a better idea , please be free sharing with us.
Q4:Which type of shipping would be better?
A:Generally,in consideration of the cheap and safe superiorities of sea transportation,we advice
to make delivery by sea.What's more, we respect your views of other transportation as well.
