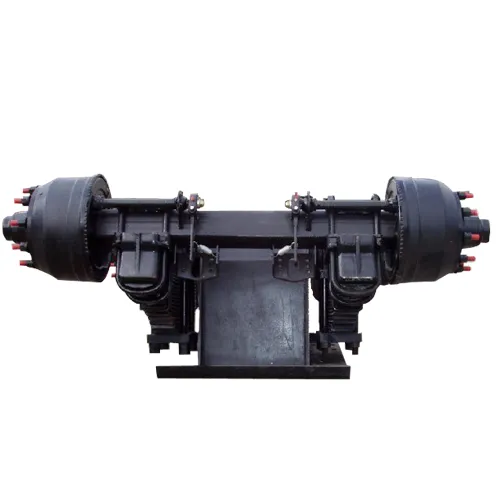

Good product - 24T 28T 32T Bogie with cooper bush
1. Max payload 24T 28T 32T
2. High quality and best price
3. Certification: ISO9001
Jin Libo semitrailer axle produced by the company, has reasonable structure, good braking quality, high-intensity, big rigidity, long life, as well as strong bearing capacity, and also passed the national authoritative department's monitor: The fatigue life reaches 1.5 million times without damage, which surpasses national standard. At present, the annul productive ability of Jin Libo semitrailer axle has surpassed ten thousands, widespread using in domestic and overseas, and selling in distant markets in Malaysia, Germany, US, Ecuador and so on.
Products features:
1.Special heat-treat,low alloy steel axle beam,it has the vitues of good synthetic
performance,strong loadabilityand lower self weight;
2.High quality alloy solid iserted spindle,through wholy heat treatment,provide
superior fatigue capacity;
3.High performance premium non-asbstos brake linings,extend service life;
4.Easy for ABSinstallation;
5.Camshaft,maching with special seals,can ensure no entry of the grease into the brake
drum,more safety;
6.New tight fit hub cap have O rings,high property for sealing;
7.Grease lubricant is supplied by Mobil that lengthens the time of free maintenance;
8.Full range of stud fixing such as ISO,BSF,and JAP,it can meet the requirements of various wheel rims.
We have seven types of axles
- American type axles (Inboard type and outboard type )
- Germany type axles ( Wheel type and spider type )
- English type axles ( 8 holes, 10 holes / ISO BSF JAP )
- Lowbed axles / concave axles
- Agricultural axles ( With brake, Without brake, Stub axles )
- Steering axles
Model Rated load(kg) Weight(kg) Bearing type Axletube(mm) Brake size(mm) Track(mm) Rim diameter Axle distance(mm) RND62*12 24000 2100 33118 33213 150*150*14 Φ420*180 1870 24" 1550 RND62*12-2 24000 2100 33118 33213 150*150*14 Φ420*200 1870 24" 1550 RND62*14 28000 2600 33215 32219 150*150*16 Φ420*200 1870 24" 1550 RND62*16 32000 2600 32314 32222 150*150*16 Φ420*200 1870 24" 1550
Q1:Are you a factory?
A:Yes,we are a factory,but not just a factory,as we have sales team,our own offices,and they
all can help the buyers and cooperative partners to decide which products are the best choices
for them,and all your requirements and inquires will be replyed in time.
Q2:What's your Delivery Time?
A:In general, the delivery time is 15-20 days.We will make the delivery as soon as possible with
the guaranted quality.
Q3:What is the convenient way to pay?
A:L/C , T/T,Unionpay,DP are accepted,and if you have a better idea , please be free sharing with us.
Q4:Which type of shipping would be better?
A:Generally,in consideration of the cheap and safe superiorities of sea transportation,we advice
to make delivery by sea.What's more, we respect your views of other transportation as well.
